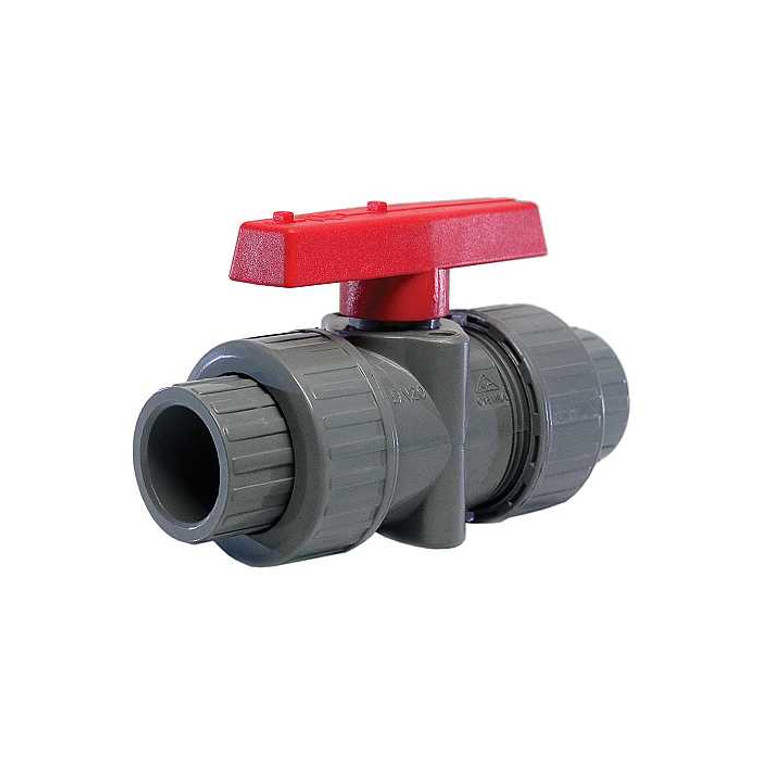

1-1/4" True Union Ball Valve Schedule 80 Gray (VLV-800-TUBV-012)

The 1-1/4" Schedule 80 Gray PVC True Union Ball Valve (VLV-800-TUBV-012) is a full port, heavy-duty isolation valve built for industrial, commercial, and chemical piping systems where Schedule 80 construction, high pressure capability, and in-line serviceability are required at the 1-1/4" pipe size. Though less common than 1" or 1-1/2" as a standard service size, the 1-1/4" size fills a precise role in systems where 1" is undersized for the required flow rate but 1-1/2" would introduce unnecessary head loss or installation cost — appearing on pump discharge connections, chemical distribution headers, irrigation zone manifolds, and mechanical system branch lines where flow demand and pressure requirements sit between those two flanking sizes.

The Schedule 80 gray PVC body provides greater wall thickness, impact resistance, and mechanical rigidity than Schedule 40 construction — important in industrial and commercial environments where valve bodies are subject to pipe loading, thermal cycling, installation torque, and specification documents that require Schedule 80 components throughout. The gray color is the universal job site identifier for Schedule 80 PVC, giving inspectors, maintenance personnel, and future installers an immediate visual confirmation of the valve's material class without referencing documentation.

The full port ball design maintains a completely open, unobstructed flow path equal to the pipe's interior bore when the valve is open — no restriction, no turbulence, and no measurable pressure drop across the valve in the fully open position. The PTFE seats deliver smooth, consistent low-torque operation and a reliable bubble-tight shut-off that holds up in chemical service, cycling applications, and sediment-laden water conditions where EPDM or rubber seats would degrade prematurely. A single quarter-turn of the lever handle goes from fully open to fully closed — fast and unambiguous, with the handle position always providing a clear visual indicator of valve status.

The true union end design is the maintenance and installation advantage that distinguishes this valve from fixed-end alternatives. Socket union end connectors solvent cement permanently into the 1-1/4" PVC pipeline — the valve carrier body unthreads from both unions for complete in-line removal without cutting pipe, breaking flanges, or disturbing adjacent components. Seat replacement, O-ring service, or full valve substitution are all performed with the unions remaining cemented in the line, keeping maintenance time and system downtime to a minimum on chemical, treatment, and process piping where periodic valve service is part of the maintenance program.

At 235 PSI rated at 73°F — the full pressure rating applicable to PVC true union ball valves in the 1/2" through 2" size range — the VLV-800-TUBV-012 handles the pressure demands of virtually any commercial or industrial application at this size with a substantial safety margin. EPDM O-rings provide broad chemical compatibility across acids, bases, chlorine, oxidizing agents, and industrial salts. Maximum service temperature is 140°F, with pressure derated above 100°F per standard PVC temperature-pressure curves.

Key Features:

• Schedule 80 gray PVC body — thicker walls, greater impact resistance, and 235 PSI pressure rating
• Full port design — pipe-bore-matched opening for maximum flow with zero restriction
• True union socket ends for complete in-line valve removal without cutting pipe
• PTFE seats — self-adjusting, low-torque, bubble-tight shut-off with long service life
• EPDM O-rings for broad compatibility across acids, bases, chlorine, and oxidizers
• Quarter-turn lever handle for fast, positive on/off actuation with visual status indicator
• 235 PSI rated at 73°F; 140°F maximum service temperature
• Conforms to ASTM F1970 and ASTM D1784
• Fully field-serviceable — seats, O-rings, and seals replaceable in-line
• Corrosion-proof and contamination-free alternative to brass and stainless in aggressive service

Specifications:

Industries & Applications:

• Industrial Process Piping — Used on 1-1/4" process water, chemical transfer, and plant utility lines in manufacturing, chemical processing, and industrial facilities where Schedule 80 construction, 235 PSI pressure capability, and EPDM/PTFE chemical compatibility are specified for the system
• Municipal Water & Wastewater Treatment — Isolation valve on 1-1/4" treatment plant distribution headers, chemical feed branch lines, and filter connections where PVC construction avoids the corrosion, tuberculation, and chemical reactivity that limit metal valve service life in water treatment environments
• Commercial Irrigation & Agriculture — Installed on 1-1/4" pump discharge connections, zone manifold headers, and mainline branch isolations on commercial farms, golf courses, sports turf systems, and municipal landscape installations where a full port, corrosion-free, high-pressure valve is the correct long-term specification
• Chemical Processing & Dosing Systems — PTFE seats and EPDM O-rings handle a broad range of acids, caustics, oxidizers, and process chemicals at 1-1/4" service size; true union ends allow in-line seat and O-ring replacement as part of scheduled chemical service valve maintenance without disturbing the pipeline
• Pool & Spa — Commercial Facilities — Used on 1-1/4" chemical feed headers, heater supply connections, and equipment branch lines at commercial pools, aquatic facilities, and water parks where continuous chemical exposure demands a corrosion-proof, fully serviceable valve
• HVAC & Mechanical Systems — Specified on 1-1/4" chilled water, hot water heating, and condenser water branch connections in commercial and industrial mechanical rooms where Schedule 80 PVC is the system material standard and true union serviceability reduces maintenance labor
• Pump Stations & Pressure Boosting — Installed on 1-1/4" pump suction and discharge branch connections and pressure zone headers where the 235 PSI rating provides comfortable margin above pump shut-off head on commercial booster and transfer pump applications
• Aquaculture & Recirculating Systems — Full port flow efficiency and broad chemical resistance make this valve a reliable isolation choice on 1-1/4" recirculating system branch lines, biofilter connections, and distribution headers in commercial aquaculture and specialty water management installations
