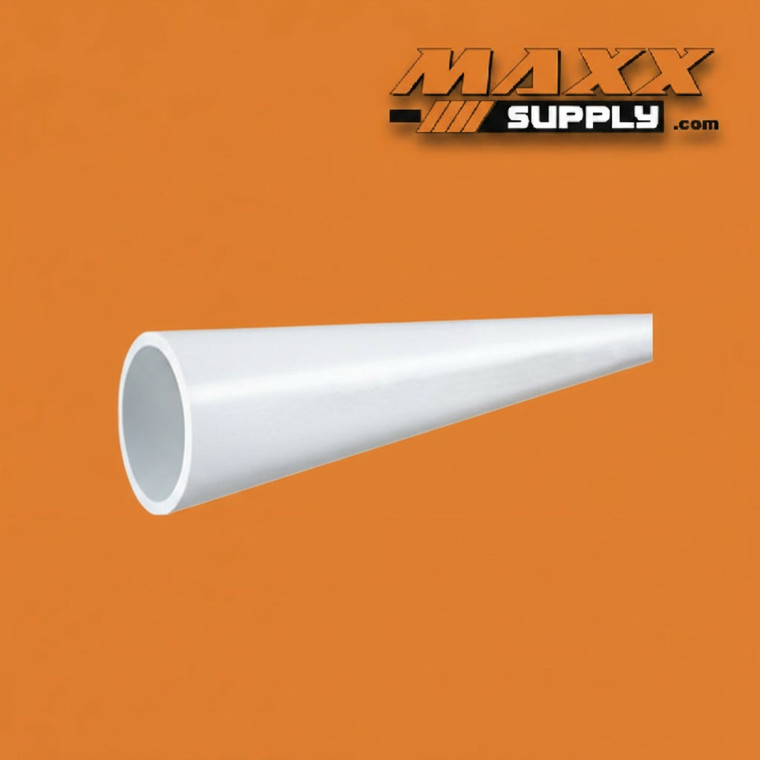

1-1/2" Schedule 40 PVC Pipe Plain End - 1-5ft

The 1-1/2" Schedule 40 White PVC Pipe (Plain End, 1-5 Foot Length) is a commercial-grade thermoplastic pressure pipe manufactured to ASTM D1785, certified to NSF 61 and NSF 14, and rated at 330 PSI at 73°F — the standard-weight Schedule 40 pipe for commercial irrigation mainlines, pool and spa recirculation systems, well system pressure mains, industrial process piping headers, chemical distribution lines, and commercial plumbing systems where the 330 PSI pressure rating and Schedule 40 wall thickness satisfy the system specification and Schedule 80's higher wall and pressure rating are not required by the design engineer. The 1-1/2" size is one of the two or three highest-volume sizes in the entire Schedule 40 PVC pipe line — it straddles the residential-commercial boundary more evenly than any other size in the large-diameter range, appearing on residential and commercial well system pressure lines, commercial pool and spa equipment pad connections and primary recirculation mains, irrigation pump discharge connections and zone mainline headers, HVAC branch distribution connections, water treatment plant branch piping, and light industrial process and utility headers in facilities across virtually every commercial and residential service sector. For plumbing and irrigation contractors, pool and spa installers, and well system service professionals who work across multiple trades, 1-1/2" Schedule 40 white PVC pipe is one of the most routinely stocked and frequently purchased pipe sizes in the commercial product line.

The Schedule 40 wall at 1-1/2" is a 0.145" nominal wall — a structurally capable and fully code-compliant specification for systems designed to operate within the 330 PSI Schedule 40 pressure rating at this diameter. For system designers comparing Schedule 40 and Schedule 80 at 1-1/2", the specification context is direct and carries meaningful pressure engineering weight: Schedule 80 carries a 0.200" nominal wall and a 470 PSI rating at the same 1.900" outside diameter — a 38% thicker wall and a 140 PSI higher pressure ceiling. At the 1-1/2" size, the pressure differential between Schedule 40 and Schedule 80 is the widest of any size in the large-diameter commercial pipe range covered in this series — 330 PSI versus 470 PSI is a 42% Schedule 80 pressure advantage that is a genuine and consequential engineering distinction for any system where operating pressure, pump shut-off head, surge allowance, and safety margin requirements are close to or above the 330 PSI Schedule 40 ceiling. For the very broad range of commercial and residential 1-1/2" piping applications where operating pressures are comfortably within the 330 PSI window — which includes most residential well systems, the majority of commercial pool recirculation systems, and most commercial irrigation pump station discharge connections at this service size — Schedule 40 is the correct and cost-effective specification that delivers the full pressure margin, chemical resistance, and NSF certification the system requires. Both schedules share the same 1.900" outside diameter, meaning Schedule 40 and Schedule 80 pipe connect directly and interchangeably into the same 1-1/2" IPS socket fittings — a practical and frequently valuable advantage when working on mixed-schedule systems or replacing one schedule with the other on an existing installation without disturbing cemented fittings already in the line.

The white color is the standard field and facility identifier for Schedule 40 PVC pipe at every size in the commercial pipe line. At the 1-1/2" size — one of the most widely installed pipe sizes across the residential and commercial plumbing, irrigation, pool and spa, and well system trades — white Schedule 40 identification provides immediate visual confirmation of the installed pipe class for installers, inspectors, service technicians, and facility managers, distinguishable at a glance from gray Schedule 80 pipe that may be present in adjacent sections of the same system or in other areas of the facility. For systems where the designer or installer has specified Schedule 40 throughout, or where Schedule 40 and Schedule 80 are used in different pressure zones of the same system, white and gray color coding eliminates material class ambiguity at every point along the installed pipeline without reference to construction documents or pipe markings that may be obscured after installation.

Plain end pipe cuts cleanly to required length with a PVC pipe cutter, fine-tooth handsaw, or power saw and solvent cements directly into any standard IPS socket fitting without additional machining or end preparation. At the 1-1/2" diameter, joint assembly benefits from deliberate technique — use a medium-body or heavy-body solvent cement rated for Schedule 40 PVC at this pipe diameter and the fitting combination being assembled, apply even cement coverage across the full pipe end circumference and the complete depth of the fitting socket, and seat and hold the joint fully before initial cement set begins. Follow the manufacturer's set and full cure time recommendations for the ambient temperature at time of installation — cure times extend at lower temperatures and full cure time compliance before system pressurization is essential for joint integrity at this and all pipe sizes. Deburr and bevel the cut end thoroughly before cementing to ensure consistent insertion depth and a clean, complete bond line. The 5-foot length is the standard distribution and online-sale cut length, practical for pump station connections, equipment supply and return connections, well system pressure line repairs, valve installations, and project purchases where full 10-foot or 20-foot production sticks are impractical to handle or ship.

NSF 61 certification lists this pipe for potable water contact, and NSF 14 covers compliance with applicable plastics piping material standards — making it the correct pipe for well systems, water treatment plant distribution, and institutional plumbing applications where NSF-listed materials are required at every system component.

Key Features:

• Schedule 40 white PVC — 0.145" nominal wall, 330 PSI rated at 73°F
• Manufactured to ASTM D1785 — the governing standard for Schedule 40 PVC pressure pipe
• NSF 61 certified for potable water contact; NSF 14 listed
• Plain end for solvent cement installation into socket fittings
• 1.900" OD — dimensionally compatible with all 1-1/2" PVC Schedule 40 and Schedule 80 socket fittings
• 5-foot cut length for distribution, equipment connections, and repairs
• White color — standard Schedule 40 identification in the field
• Cell classification PVC 12454 per ASTM D1784
• One of the highest-volume Schedule 40 PVC pipe sizes across the commercial irrigation, pool and spa, well system, and plumbing trades
• Pressure derated above 73°F per standard PVC temperature-pressure curves

Specifications:

Industries & Applications:

• Pool & Spa — Commercial & Aquatic Facilities — The 1-1/2" size is the single most common primary recirculation main size in commercial pool and spa systems; Schedule 40 PVC is the standard specification for 1-1/2" recirculation mains, pump suction and discharge connections, and equipment pad supply and return piping at commercial pools, spas, hotel pools, fitness center natatoriums, and aquatic centers where system operating pressures are designed within the 330 PSI Schedule 40 ceiling; PVC construction handles continuous chlorine, salt, and pool treatment chemical exposure without corrosion or contamination, and Schedule 40 at 1-1/2" is the default primary recirculation pipe specification across the commercial pool and spa industry at this service diameter
• Irrigation & Agricultural Systems — The 1-1/2" Schedule 40 size is a widely used pump discharge connection and zone mainline distribution header on commercial and residential irrigation systems at golf courses, sports complexes, parks, commercial farms, and large residential properties where design operating pressures fall within Schedule 40's 330 PSI ceiling; it appears on pump station discharge connections, zone manifold supply headers, drip system mainline feeds, and lateral supply connections throughout commercial irrigation systems where flow volume has grown beyond 1" and 1-1/4" branch sizes; the 330 PSI Schedule 40 rating is fully adequate for the broad range of commercial irrigation pump configurations that operate within this pressure window at the 1-1/2" service size
• Well Systems & Pressure Mains — One of the most common pipe sizes for residential and light commercial well system pressure mains; used on 1-1/2" well pump discharge lines, pressure tank supply connections, and point-of-entry treatment equipment piping where the 330 PSI Schedule 40 rating provides adequate safety margin above pump operating pressures for the broad range of residential and light commercial well system configurations that operate within the Schedule 40 pressure ceiling; for well systems where pump shut-off head and surge conditions approach or exceed 330 PSI, the 1-1/2" Schedule 80 pipe is the correct specification
• Industrial Process Piping — Used on 1-1/2" process water headers, cooling water distribution connections, chemical transfer lines, and plant utility branch piping in manufacturing, chemical processing, and light industrial facilities where the system design specifies Schedule 40 PVC and operating pressures are within the 330 PSI ceiling; Schedule 40 at 1-1/2" is fully appropriate and widely used for light industrial process and utility piping systems where the design engineer has confirmed that Schedule 40 wall thickness, pressure rating, and white pipe identification satisfy all system engineering requirements at this service diameter
• Chemical Processing & Distribution — PVC's broad resistance to acids, bases, chlorine, salts, and oxidizing agents makes Schedule 40 appropriate for 1-1/2" chemical distribution headers, dosing system feed lines, and process chemical transfer piping where system operating pressures are designed within Schedule 40's 330 PSI rating; for chemical systems with higher operating pressures, surge pressure allowances, or specifications requiring Schedule 80 gray identification and thicker wall construction throughout, the 1-1/2" Schedule 80 pipe is the correct specification; for systems within the 330 PSI envelope, Schedule 40 delivers full chemical resistance performance at a lower installed cost
• Municipal Water & Wastewater Treatment — NSF 61 listed for potable water contact makes this pipe appropriate for 1-1/2" distribution branch connections, chemical feed header lines, filter vessel inlet and outlet branch piping, backwash supply and discharge connections, and process water branch lines in water treatment plant environments where the design engineer has specified Schedule 40 PVC for branch distribution piping operating within the 330 PSI pressure rating; white Schedule 40 identification confirms the installed pipe class at every inspection and maintenance point in the plant branch distribution system
• HVAC & Commercial Mechanical Systems — Specified on 1-1/2" chilled water branch connections, fan coil unit supply and return lines, condenser water branch headers, and hydronic heating and cooling branch connections in commercial and light industrial mechanical systems where Schedule 40 PVC is the system material standard and system pressures are within the 330 PSI rating; the 1-1/2" size is one of the most common terminal branch sizes in commercial HVAC systems, and Schedule 40 is the standard specification at this size where design pressures and safety margin requirements are satisfied within the Schedule 40 ceiling
• Aquaculture & Recirculating Systems — Used on 1-1/2" distribution headers, filtration system inlet and outlet connections, aeration supply mains, and water conditioning branch lines at commercial aquaculture facilities and recirculating aquaculture systems (RAS) where system flow rates at the primary distribution level are within the capacity of 1-1/2" pipe; Schedule 40 PVC construction and broad chemical resistance to disinfectants, oxygen dosing compounds, and water treatment chemicals make this pipe appropriate for primary and secondary distribution at commercial aquaculture operations designed within the Schedule 40 pressure ceiling
