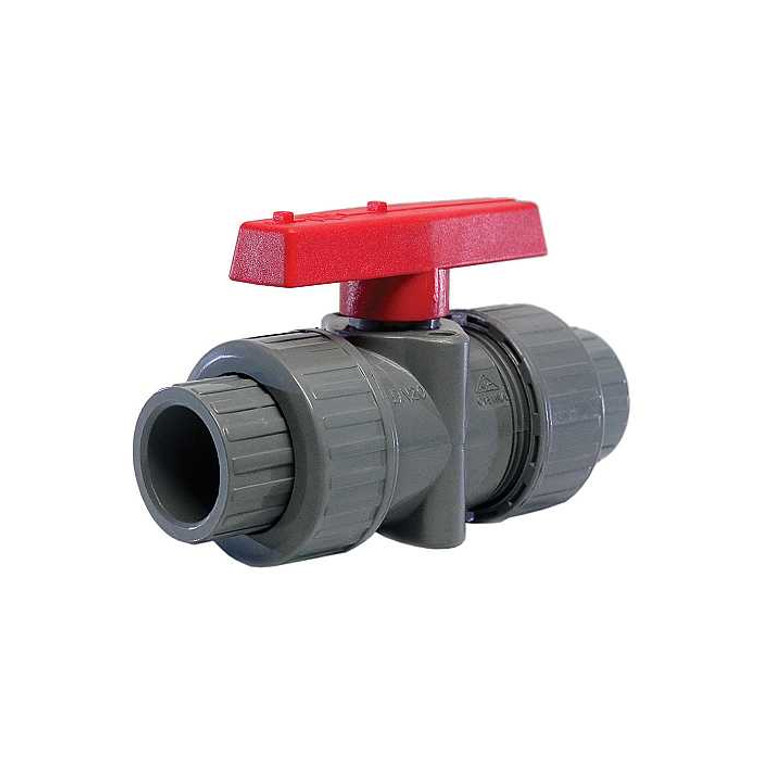

1/2" True Union Ball Valve Schedule 80 Gray (VLV-800-TUBV-005)

The 1/2" Schedule 80 Gray PVC True Union Ball Valve (VLV-800-TUBV-005) is a full port, heavy-duty isolation valve built for chemical dosing systems, water treatment installations, industrial process piping, and any application at the 1/2" pipe size where Schedule 80 construction, 235 PSI pressure capability, and in-line serviceability are the right specification. The 1/2" size is the smallest in the Schedule 80 true union ball valve series — and while it is the most compact, it is no less capable. It appears on chemical injection points, drip irrigation laterals, reagent feed lines, laboratory and institutional plumbing, and branch connections throughout industrial and commercial systems where a reliable, chemically resistant, fully serviceable quarter-turn shut-off is required in a tight installation envelope.

The Schedule 80 gray PVC body immediately distinguishes this valve from white Schedule 40 alternatives. The thicker Schedule 80 wall provides greater impact resistance and mechanical rigidity — important even at the 1/2" size in industrial environments where valve bodies are subject to installation torque, vibration, thermal cycling, and specification requirements that mandate Schedule 80 components throughout. At 235 PSI cold working pressure at 73°F, the VLV-800-TUBV-005 carries the full pressure rating of the 1/2"–2" size range in this series — the highest pressure ceiling in the entire Schedule 80 true union ball valve line — providing a substantial safety margin above the operating pressures of virtually any system this size will see in field service. The gray color provides instant visual confirmation of Schedule 80 material class on the job site, in the mechanical room, and in the field — no guessing, no need to cross-reference installation records.

The full port ball design keeps the flow path completely open to the pipe's interior bore when the valve is open — no restriction, no turbulence, and no measurable pressure drop across the valve. At the 1/2" size, this full port performance matters on chemical dosing systems where consistent, accurately metered flow rates depend on minimizing all sources of restriction in the feed line, on drip irrigation laterals where system pressure at the terminal end drives emitter uniformity, and on laboratory and process lines where partial-port restriction would compromise flow calibration. The PTFE seats deliver smooth, low-torque quarter-turn operation and a reliable bubble-tight shut-off that performs consistently through chemical service, high cycle counts, and the sediment and particulate exposure common in industrial and agricultural water systems.

The true union end design is what makes this valve the right long-term specification for any system that requires maintenance access at the valve level. The socket union connectors solvent cement permanently into the 1/2" PVC pipeline — the valve carrier body unthreads cleanly from both unions for complete in-line removal without cutting pipe, draining the system beyond the immediate valve, or disturbing adjacent components. At the 1/2" size, this in-line serviceability is particularly valuable on chemical dosing skids, water treatment manifolds, and laboratory plumbing systems where multiple valves are installed in close proximity and pipe cutting would cascade into a much larger repair scope than simply servicing the valve itself. Seat replacement, O-ring service, or full valve substitution are all completed with the unions staying cemented in the line.

EPDM O-rings provide broad chemical compatibility across acids, bases, chlorine, oxidizing agents, and industrial salts — making the VLV-800-TUBV-005 a corrosion-free, contamination-proof alternative to brass ball valves wherever metal-to-fluid contact is unsuitable for the service conditions. Maximum service temperature is 140°F, with pressure derated above 100°F per standard PVC temperature-pressure curves.

Key Features:

• Schedule 80 gray PVC body — thicker walls, greater impact resistance, and 235 PSI pressure rating
• Full port design — pipe-bore-matched opening for maximum flow with zero restriction
• True union socket ends for complete in-line valve removal without cutting pipe
• PTFE seats — self-adjusting, low-torque, bubble-tight shut-off with long service life
• EPDM O-rings for broad compatibility across acids, bases, chlorine, and oxidizers
• Quarter-turn lever handle for fast, positive on/off actuation with visual status indicator
• 235 PSI rated at 73°F; 140°F maximum service temperature
• Conforms to ASTM F1970 and ASTM D1784
• Fully field-serviceable — seats, O-rings, and seals replaceable in-line
• Corrosion-proof alternative to brass ball valves in chemical and aggressive service

Specifications:

Industries & Applications:

• Chemical Dosing & Injection Systems — The 1/2" size is the most common specification for chemical injection points on water treatment systems, cooling towers, and process loops; the true union design allows in-line valve removal on tightly configured dosing skids where pipe cutting would require extensive rework, and EPDM/PTFE construction handles the acids, caustics, and oxidizers typical in chemical dosing service
• Water Treatment & Purification — Isolation and service valve on 1/2" chemical feed lines, sample tap connections, pre-filter inlet/outlet branches, and UV system supply lines; PVC construction eliminates the corrosion and metal contamination risk associated with brass valves on sensitive potable water and purification system piping
• Drip Irrigation & Landscape — Used on 1/2" drip lateral branches, emitter zone feeds, and end-of-line flush connections on residential and light commercial drip irrigation systems; full port design preserves lateral pressure for consistent emitter output, and Schedule 80 construction holds up to UV exposure and mechanical stress in above-ground and partially buried installations
• Industrial Process Piping — Installed on 1/2" process water, chemical transfer, cooling water branch lines, and plant utility connections in manufacturing, chemical processing, and industrial facilities where Schedule 80 PVC is specified throughout and in-line serviceability is required at every isolation point
• Laboratory & Institutional Plumbing — Appropriate for reagent supply lines, DI water distribution branches, lab drain isolation points, and process water connections in university, medical, and research facilities where chemical compatibility, precise flow control, and clean shut-off are standard specification requirements
• Pool & Spa — Chemical Feed Systems — Used on 1/2" chemical injection lines, metering pump outlets, and secondary equipment connections at commercial and residential pool and spa systems where continuous chlorine, acid, and oxidizer exposure demands a fully corrosion-resistant, serviceable valve
• Aquaculture & Specialty Water Systems — Full port flow efficiency and broad chemical resistance make this valve a reliable isolation and service valve on 1/2" recirculating system branch lines, chemical treatment feed points, aeration supply connections, and water management distribution piping in commercial aquaculture and specialty water installations
• Pharmaceutical & Food-Adjacent Process Piping — The crevice-minimizing true union design and PTFE/EPDM wetted surfaces make this valve appropriate for process lines in pharmaceutical manufacturing, food processing support systems, and other regulated environments where fluid entrapment and metal contamination in valve internals are process concerns
