1" Flange (Solid Style), FPT PVC Schedule 80 (852-010)

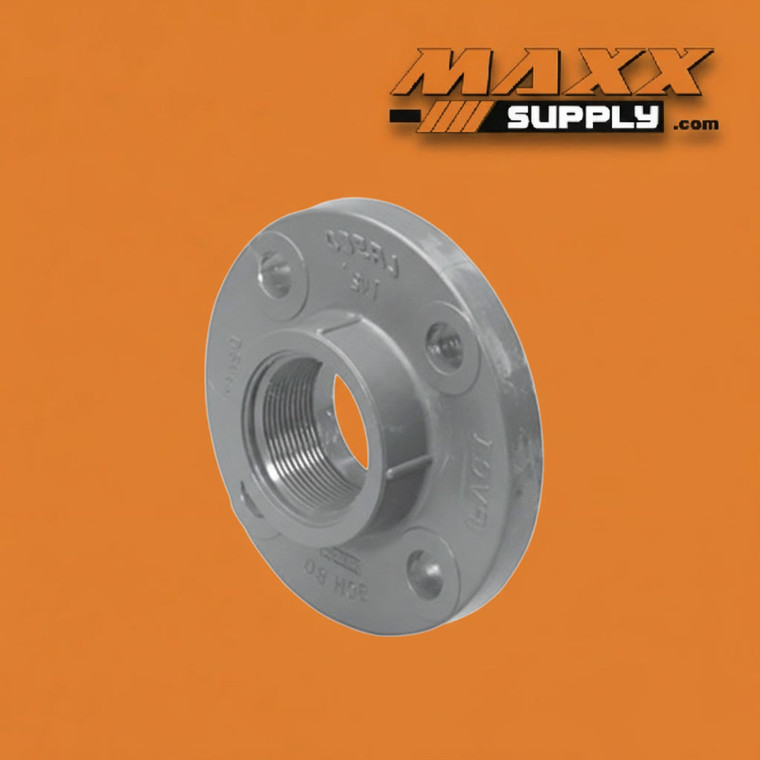

The 852-010 is a 1" PVC Schedule 80 solid flange in a solid (non-van stone) style with an FPT (Female Pipe Thread) connection, providing a bolted flange termination point in a 1" threaded Schedule 80 PVC pipeline. The FPT end accepts a standard 1" MPT nipple or fitting for threaded assembly into the pipeline, while the flat flange face mates against a companion flange — on a pump, valve, tank nozzle, piece of process equipment, or another PVC flange — and is secured with standard bolts through the bolt circle.

The solid flange style is a one-piece construction: the flange body and the pipe connection hub are permanently integrated, with no rotating ring or separate backing flange component. This distinguishes it from the van stone (lap joint) flange style, where a loose ring flange backs a separately formed flange face. The solid style is simpler, more compact, and well-suited for permanent installations where the flange orientation does not need to be adjusted independently of the pipe connection — the bolt holes are fixed relative to the hub, so rotational alignment must be confirmed before the threaded connection is fully tightened.

Flanged connections in PVC systems serve a fundamentally different function than solvent-weld or threaded unions — they provide a bolted, gasketed interface that is designed for repeated assembly and disassembly at high-access points, equipment connections, and system boundaries where standard threaded or solvent-weld fittings are not practical. At pump flanges, tank nozzles, valve bodies, and equipment inlets, the 852-010 provides the PVC-to-flange transition that allows the threaded PVC pipeline to terminate cleanly at a bolted flange face.

A full-face or raised-face gasket should be used between mating flanges to ensure a leak-free seal at the flange interface. For PVC flanges, a full-face gasket is typically recommended to distribute bolt load evenly across the full flange face and prevent stress concentration at the flange bore. Bolts should be tightened in a cross pattern to ensure even gasket compression — do not over-torque, as excessive bolt load can crack PVC flanges. Consult manufacturer torque specifications for the appropriate bolt load at this size and pressure rating.

Thread sealing at the FPT connection follows standard practice: apply PTFE thread tape or a compatible PVC-rated thread sealant to the male threads of the mating nipple or fitting before assembly. Avoid petroleum-based pipe dopes, which can degrade PVC over time.

Schedule 80's thicker wall construction delivers higher pressure ratings and stronger resistance to mechanical stress and chemical exposure than Schedule 40, making this flange appropriate for demanding industrial, chemical, and process piping environments. The gray color is the standard Schedule 80 identifier, providing clear visual differentiation from white Schedule 40 components in mixed systems.

Specifications:

Industries & Applications:

The 852-010 solid FPT flange is used wherever a 1" threaded Schedule 80 PVC pipeline must terminate at a bolted flange interface for equipment connection, system isolation, or high-access service points:

• Industrial Processing — Flanged connections at pump inlets and outlets, process vessel nozzles, and inline equipment interfaces in 1" Schedule 80 process piping where the bolted flange provides a repeatable, gasketed disconnect point for equipment service and replacement
• Chemical Handling — Bolted flange terminations in acid, alkali, and reagent distribution systems at chemical metering pumps, injection equipment, tank nozzles, and inline instruments where the flange provides a clean, serviceable interface between the PVC pipeline and process equipment
• Water & Wastewater Treatment — Flange connections at treatment plant pump stations, chemical dosing equipment, UV units, filter vessels, and distribution system components where PVC Schedule 80 flanged connections provide corrosion-resistant, serviceable interfaces at equipment boundaries
• Irrigation & Agriculture — Flanged pump connections and equipment interfaces in pressurized irrigation systems where 1" PVC threaded supply lines must connect to flanged pump ports, filter housings, or control equipment
• Commercial & Industrial Plumbing — Bolted flange connections at water treatment equipment, backflow preventers, pressure-reducing assemblies, and mechanical room equipment where a flanged PVC interface is specified at the equipment boundary
• Aquaculture & Aquatics — Flanged connections at recirculating system pump equipment, UV sterilizers, filter vessels, and major system components where the bolted flange allows equipment removal and replacement without disturbing the surrounding PVC pipeline
• Pool & Spa — Flanged connections at commercial pool pump equipment, filter tank nozzles, and chemical feed system components where Schedule 80 PVC flanges provide corrosion-resistant, serviceable equipment interfaces
• HVAC & Cooling Systems — Flanged PVC connections at cooling tower chemical treatment equipment, heat exchanger nozzles, and process cooling system components where corrosion resistance and a serviceable bolted interface are both required
