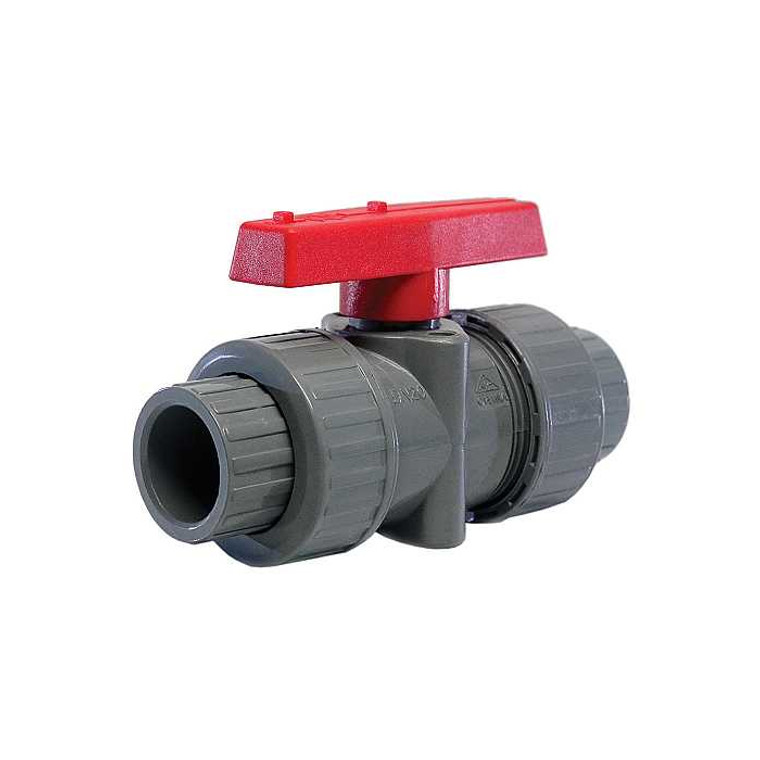

1" True Union Ball Valve Schedule 80 Grey (VLV-800-TUBV-010)

The 1" Schedule 80 Gray PVC True Union Ball Valve (VLV-800-TUBV-010) is a full port, heavy-duty isolation valve built for industrial, commercial, and chemical piping systems that demand Schedule 80 construction, high pressure capability, and in-line serviceability at one of the most common service pipe sizes in the trade. The 1" size appears across an exceptionally broad range of applications — residential well systems, commercial irrigation mainlines, chemical dosing headers, water treatment plant distribution piping, HVAC branch connections, and light industrial process lines — making the VLV-800-TUBV-010 one of the most versatile and frequently specified SKUs in the Schedule 80 true union ball valve series.

The Schedule 80 gray PVC body distinguishes this valve immediately from white Schedule 40 alternatives — thicker walls, greater impact resistance, improved rigidity under pipe loading, and a 235 PSI cold working pressure rating that provides a substantial margin above the 150 PSI ceiling of 2-1/2" and larger Schedule 80 valves in the same series. For systems where the specification calls for Schedule 80 components throughout, or where operating pressures exceed what Schedule 40 can safely accommodate, the VLV-800-TUBV-010 satisfies both requirements without compromise. The gray color provides instant visual identification of Schedule 80 material class across the entire installation — no guessing, no cross-referencing documentation on site.

The full port ball design maintains a completely unobstructed flow path equal to the pipe's interior bore when fully open — zero restriction, zero turbulence, and no measurable pressure drop across the valve. At the 1" size, this full port performance is especially important on pump discharge connections, well pressure lines, and irrigation mainlines where partial-port valves reduce system flow rate and increase pump operating costs over time. The PTFE seats deliver smooth, consistent low-torque quarter-turn operation and a reliable bubble-tight shut-off that performs dependably through high cycle counts, chemical service, and sediment-laden water conditions where elastomeric seats would degrade or swell.

The true union design is what makes this valve the right long-term specification for any system requiring maintenance access. The socket union connectors solvent cement permanently into the 1" PVC pipeline — the valve carrier body unthreads cleanly from both unions for complete in-line removal without cutting pipe, draining the system, or disturbing adjacent piping and equipment. Seat replacement, O-ring service, or full valve substitution are all accomplished with the unions staying cemented in the line. On chemical dosing systems, water treatment plant piping, and process lines where valve service is part of routine maintenance scheduling, this dramatically reduces the time, cost, and system impact of each service event compared to fixed-end valves that require pipe cutting and re-joining.

EPDM O-rings provide broad chemical compatibility across acids, bases, chlorine, oxidizing agents, and industrial salts — making the VLV-800-TUBV-010 a corrosion-proof, contamination-free alternative to brass or stainless ball valves wherever metal is unsuitable for the service fluid. Maximum service temperature is 140°F, with pressure derated above 100°F per standard PVC temperature-pressure curves.

Key Features:

• Schedule 80 gray PVC body — thicker walls, greater impact resistance, and 235 PSI pressure rating
• Full port design — pipe-bore-matched opening for maximum flow with zero restriction
• True union socket ends for complete in-line valve removal without cutting pipe
• PTFE seats — self-adjusting, low-torque, bubble-tight shut-off with long service life
• EPDM O-rings for broad compatibility across acids, bases, chlorine, and oxidizers
• Quarter-turn lever handle for fast, positive on/off actuation with visual status indicator
• 235 PSI rated at 73°F; 140°F maximum service temperature
• Conforms to ASTM F1970 and ASTM D1784
• Fully field-serviceable — seats, O-rings, and seals replaceable in-line
• Corrosion-proof alternative to brass and stainless ball valves in aggressive service

Specifications:

Industries & Applications:

• Residential & Commercial Well Systems — One of the most common applications for this size; used as primary isolation on 1" well pressure lines, pump discharge connections, and point-of-entry treatment equipment where Schedule 80 construction and a 235 PSI rating provide adequate safety margin for pump shut-off head conditions
• Industrial Process Piping — Used on 1" process water, chemical transfer, cooling water, and plant utility lines in manufacturing, chemical processing, and industrial facilities where Schedule 80 construction, PTFE seats, and EPDM O-ring chemical compatibility are specified throughout the system
• Municipal Water & Wastewater Treatment — Isolation valve on 1" treatment plant distribution headers, chemical feed branch lines, filter connections, and pump station piping where PVC eliminates the corrosion, tuberculation, and chemical reactivity that shorten metal valve service life in treatment chemical environments
• Commercial Irrigation & Agriculture — Installed on 1" pump discharge connections, zone manifold headers, and mainline isolation points on commercial farms, golf courses, sports fields, and municipal landscape systems; the full port design preserves system pressure and flow rate across all downstream zones
• Chemical Processing & Dosing Systems — PTFE seats and EPDM O-rings handle a broad range of acids, caustics, oxidizers, and process chemicals at the 1" service size; true union ends allow in-line seat and O-ring replacement as part of scheduled maintenance without breaking the pipeline
• Pool & Spa — Commercial Facilities — Used on 1" recirculation branch lines, chemical feed headers, heater supply connections, and equipment isolation points at commercial pools, aquatic centers, and water parks where continuous chemical exposure demands corrosion-proof, fully serviceable valve components
• HVAC & Mechanical Systems — Specified on 1" chilled water, hot water heating, fan coil unit supply, and condenser water branch connections in commercial and industrial mechanical rooms where Schedule 80 PVC is the system material standard and true union serviceability simplifies valve replacement in densely piped mechanical spaces
• Aquaculture & Recirculating Systems — Full port flow efficiency and broad chemical resistance make this valve a reliable isolation and service valve on 1" recirculating system headers, biofilter connections, aeration supply lines, and distribution piping in commercial aquaculture and specialty water management installations
