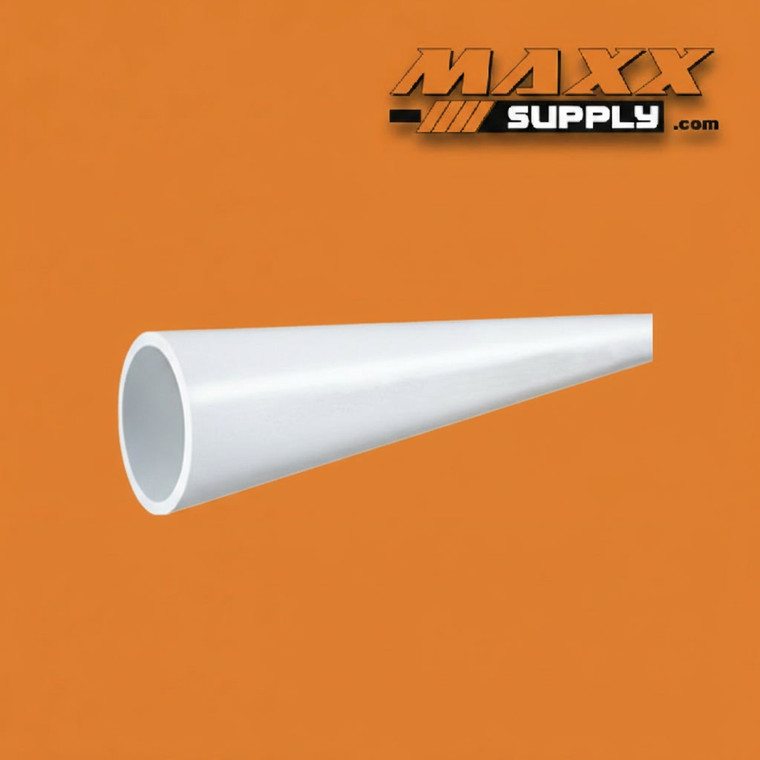

2-1/2" Schedule 40 PVC Pipe Plain End - 1-5ft

The 2-1/2" Schedule 40 White PVC Pipe (Plain End, 5-Foot Length) is a commercial-grade thermoplastic pressure pipe manufactured to ASTM D1785, certified to NSF 61 and NSF 14, and rated at 240 PSI at 73°F — the standard-weight Schedule 40 pipe for commercial irrigation pump discharge headers, pool and spa recirculation mains, industrial process piping trunks, municipal water treatment plant branch piping, and chemical distribution headers where the 240 PSI pressure rating and Schedule 40 wall thickness satisfy the system specification and Schedule 80's higher wall and pressure rating are not required by the design engineer. The 2-1/2" size occupies a transitional and frequently specified position in the Schedule 40 PVC pipe line — it is the step-up from the 2" branch size that commercial irrigation designers, pool and spa engineers, and industrial piping teams reach when system flow volume has outgrown 2" pipe but the full 3" primary main diameter is more than the application requires. It appears on commercial irrigation pump discharge connections and zone supply headers, pool and spa equipment pad recirculation connections, booster pump station supply and discharge lines, process water distribution headers in industrial facilities, and water treatment plant branch piping where Schedule 40 is the specified system material and operating pressures are designed within the 240 PSI Schedule 40 ceiling.

The Schedule 40 wall at 2-1/2" is a 0.203" nominal wall — a structurally capable and fully code-compliant specification for systems designed to operate within the 240 PSI Schedule 40 pressure rating at this diameter. For system designers comparing Schedule 40 and Schedule 80 at 2-1/2", the specification context is direct and consequential: Schedule 80 carries a 0.276" nominal wall and a 340 PSI rating at the same 2.875" outside diameter — a 36% thicker wall and a 100 PSI higher pressure ceiling. At the 2-1/2" size, the pressure differential between Schedule 40 and Schedule 80 widens meaningfully compared to the 3" and 4" sizes where the gap had narrowed to 40 PSI — the 240 PSI vs. 340 PSI differential at 2-1/2" is a 42% Schedule 80 pressure advantage that is among the widest in the commercial pipe line in this size range and that mirrors the significant pressure gaps seen at 1" through 2". This wider pressure gap at 2-1/2" means the schedule selection decision is more pressure-driven than at the 3" and 4" sizes — buyers and designers should evaluate whether their system's operating pressure, surge allowance, and engineering safety margin requirements fit within 240 PSI before selecting Schedule 40 at this size, and should upgrade to Schedule 80 where pressure conditions or specification requirements push the design above the Schedule 40 ceiling. For the broad range of commercial and industrial 2-1/2" piping applications where operating pressures are comfortably within the 240 PSI window, Schedule 40 is the correct and cost-effective specification. Both schedules share the same 2.875" outside diameter, meaning Schedule 40 and Schedule 80 pipe connect directly and interchangeably into the same 2-1/2" IPS socket fittings — a practical advantage when working on mixed-schedule systems or replacing one schedule with the other on an existing installation without disturbing cemented fittings.

The white color is the standard field and facility identifier for Schedule 40 PVC pipe at every size in the commercial pipe line. At the 2-1/2" size — which spans the boundary between the upper commercial branch sizes and the lower primary mainline range — white Schedule 40 identification provides immediate visual confirmation of the installed pipe class for inspectors, maintenance engineers, and facility managers, distinguishable at a glance from gray Schedule 80 pipe that may be present in adjacent sections of the same system or facility. For systems where the designer has specified Schedule 40 throughout, or where Schedule 40 and Schedule 80 are used in different pressure zones of the same system, white and gray color coding eliminates material class ambiguity at every point along the installed pipeline without reference to construction documents or pipe markings that may be obscured after installation.

Plain end pipe cuts to required length with a power saw, fine-tooth handsaw, or large-diameter PVC pipe cutter and solvent cements directly into any standard IPS socket fitting without additional machining or end preparation. At the 2-1/2" diameter, joint assembly requires deliberate technique — the bonding surface area is large enough to demand thorough, even heavy-body solvent cement coverage across the full circumference of the pipe end and the complete depth of the fitting socket, careful working time management to ensure full seating before initial cement set begins, and strict full cure time compliance before any system pressurization. Use a heavy-body solvent cement rated for Schedule 40 PVC at the 2-1/2" pipe diameter and the fitting combination being assembled. Follow the manufacturer's set and full cure time recommendations for the ambient temperature at time of installation — cure times extend at lower temperatures and must be respected in full at this diameter where partial cure under system pressure is a primary root cause of joint failure at large pipe sizes. Deburr and bevel the cut end thoroughly before cementing to ensure consistent insertion depth and a complete circumferential bond line. The 5-foot length is the standard distribution and online-sale cut length, practical for pump station connections, equipment room supply and return connections, valve vault installations, maintenance repairs, and project purchases where full 10-foot or 20-foot production sticks are impractical to handle or ship.

NSF 61 certification lists this pipe for potable water contact, and NSF 14 covers compliance with applicable plastics piping material standards — making it the correct pipe for municipal water treatment distribution, commercial well system mains, and institutional plumbing applications where NSF-listed materials are required at every system component.

Key Features:

• Schedule 40 white PVC — 0.203" nominal wall, 240 PSI rated at 73°F
• Manufactured to ASTM D1785 — the governing standard for Schedule 40 PVC pressure pipe
• NSF 61 certified for potable water contact; NSF 14 listed
• Plain end for solvent cement installation into socket fittings
• 2.875" OD — dimensionally compatible with all 2-1/2" PVC Schedule 40 and Schedule 80 socket fittings
• 5-foot cut length for distribution, equipment connections, and repairs
• White color — standard Schedule 40 identification in the field
• Cell classification PVC 12454 per ASTM D1784
• Cost-effective specification for systems within the 240 PSI pressure ceiling
• Pressure derated above 73°F per standard PVC temperature-pressure curves

Specifications:

Industries & Applications:

• Irrigation & Agricultural Systems — The 2-1/2" Schedule 40 size is a widely used pump discharge connection and zone supply header size on commercial irrigation systems at golf courses, sports complexes, parks, commercial farms, and large-acreage agricultural operations where system flow volume has stepped up from 2" branch sizes and design operating pressures fall within Schedule 40's 240 PSI ceiling; for commercial irrigation systems where pump station discharge pressures, surge allowances, and system safety margin requirements are comfortably within 240 PSI at this pipe size, Schedule 40 is the correct and cost-effective specification — and white pipe identification confirms the installed material class at every inspection and maintenance point along the distribution system
• Pool & Spa — Commercial & Aquatic Facilities — The 2-1/2" size is a standard equipment pad recirculation connection, pump suction and discharge pipe, and secondary distribution main size at commercial pools and aquatic centers where 2" equipment connections have been sized up to handle higher flow rates; Schedule 40 PVC handles continuous chlorine, salt, and pool treatment chemical exposure, and Schedule 40 at 2-1/2" is fully appropriate for commercial pool and spa equipment connections and secondary recirculation piping designed within standard commercial pump pressure parameters within the 240 PSI Schedule 40 ceiling
• Industrial Process Piping — Used on 2-1/2" process water headers, cooling water distribution connections, chemical transfer lines, and plant utility piping in manufacturing, chemical processing, and industrial facilities where the system design specifies Schedule 40 PVC and operating pressures are within the 240 PSI ceiling; Schedule 40 at 2-1/2" is the correct and fully capable specification for industrial piping systems where the design engineer has determined that Schedule 40 wall thickness, pressure rating, and white pipe identification satisfy all engineering requirements at this service diameter
• Chemical Processing & Distribution — PVC's broad resistance to acids, bases, chlorine, salts, and oxidizing agents makes Schedule 40 appropriate for 2-1/2" chemical distribution headers and process chemical transfer lines where system operating pressures are designed within Schedule 40's 240 PSI rating; for chemical systems with higher operating pressures, surge allowances, or specifications requiring Schedule 80 gray identification throughout, the 2-1/2" Schedule 80 pipe is the correct specification; for systems within the 240 PSI pressure envelope, Schedule 40 delivers full chemical resistance performance at a lower installed material cost than Schedule 80 at this service size
• Municipal Water & Wastewater Treatment — NSF 61 listed for potable water contact makes this pipe appropriate for 2-1/2" distribution branch mains, chemical feed header connections, filter vessel inlet and outlet connections, backwash supply and discharge piping, and process water branch connections in water treatment plant environments where the design engineer has specified Schedule 40 PVC for branch and distribution piping operating within the 240 PSI pressure rating; white Schedule 40 identification confirms the installed pipe class at every inspection and maintenance point in the plant distribution system
• Commercial Well Systems & Booster Stations — Used on 2-1/2" well pump discharge connections and booster pump station supply and discharge lines where pump operating pressures and shut-off head conditions fall within the 240 PSI Schedule 40 pressure ceiling; the 240 PSI vs. 340 PSI differential between Schedule 40 and Schedule 80 at this size is among the widest in the commercial pipe line in this size range — buyers should evaluate pump shut-off head, surge pressure, and engineering safety margin requirements carefully before selecting Schedule 40 at 2-1/2", and upgrade to Schedule 80 where pressure conditions approach or exceed the 240 PSI ceiling
• HVAC & Commercial Mechanical Systems — Specified on 2-1/2" chilled water distribution connections, condenser water branch headers, and hydronic heating and cooling supply and return connections in commercial mechanical systems where Schedule 40 PVC is the system material standard and system pressures are within the 240 PSI rating; at this size on HVAC distribution connections and branch headers, the design engineer's pressure zone analysis determines the correct pipe schedule, and Schedule 40 is the appropriate specification where operating pressure and safety margin requirements are satisfied within the 240 PSI ceiling
• Gravity Flow & Low-Pressure Systems — The 2-1/2" Schedule 40 size is well suited for gravity-fed distribution systems, low-head pump applications, and low-pressure conveyance piping in water treatment, irrigation, and industrial environments where system operating pressures are well within the Schedule 40 ceiling and the additional wall thickness of Schedule 80 is not required by the design; the 240 PSI rating provides adequate safety margin for low-pressure applications at this service diameter while delivering the full chemical resistance, NSF certification, and specification compliance of Schedule 40 PVC construction
