22 1/2 Degree Elbow, Slip x Slip PVC Schedule 40 12" (465-120)

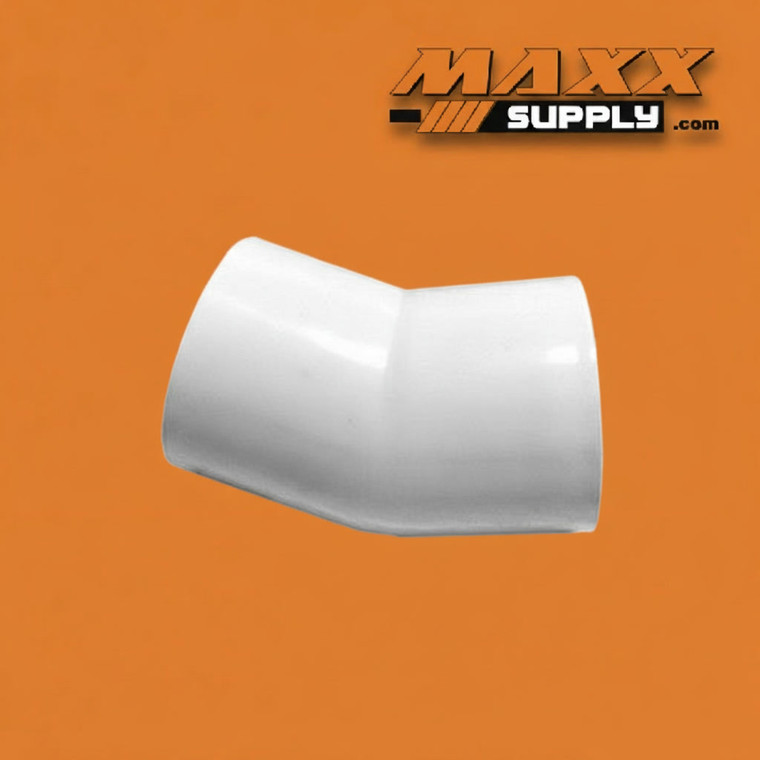

The 12" PVC Schedule 40 22-1/2 Degree Elbow (Slip x Slip), Part #465-120, is a large-diameter, shallow-angle directional fitting designed for systems where a gradual change in pipe direction is required without the abrupt flow transition of a 45- or 90-degree elbow. Manufactured from Type I, Grade I PVC compound to ASTM D2466 specifications, this elbow delivers reliable pressure performance, broad chemical resistance, and long service life in high-volume commercial, municipal, and industrial piping applications.

The 22-1/2 degree bend angle is a critical and frequently misunderstood specification. Where a 45- or 90-degree elbow introduces a sharp directional change that generates turbulence, increases head loss, and imposes significant thrust forces on the pipe system, the 22-1/2 degree elbow produces a shallow, sweeping deflection — typically used to route pipe around obstacles, follow terrain grade changes, align with non-orthogonal structures, or achieve directional offsets that fall outside the range of standard 45-degree geometry. In large-diameter systems, where flow volumes are high and pressure loss across fittings has meaningful hydraulic consequences, the 22-1/2 degree elbow is often the preferred fitting for any directional change that does not require a full quarter-turn.

The 22-1/2 degree elbow is also a foundational fitting in large-diameter horizontal directional drilling (HDD) and pipe-bursting installations, where shallow exit and entry angles must be matched with corresponding surface fittings. Combined in pairs or with 45-degree elbows, 22-1/2 degree bends are used to construct custom offset assemblies — a technique common in municipal water main installations where alignment constraints prevent the use of standard-angle fittings.

The slip x slip (plain end) configuration accepts solvent cement on both ends, creating a permanent, chemically bonded joint that becomes structurally integral with the pipe when properly installed. At 12 inches, this is one of the largest standard slip-connection elbows in the Schedule 40 PVC product line. Proper large-diameter solvent weld technique — including surface preparation, primer, appropriate large-bore PVC cement, and adequate cure time before pressurization — is essential at this size to ensure full joint integrity.

Specifications:

Note: Pressure ratings decrease at elevated temperatures and are further influenced by dynamic flow conditions, water hammer, and surge pressure — all of which are relevant design considerations in large-diameter systems. At 12 inches, thrust restraint at the elbow body should be evaluated as part of the system design, particularly for buried installations. Consult ASTM D2466 derating curves and applicable engineering specifications before installation.

Industries & Applications:

• Municipal Water Distribution — Gradual directional changes on 12-inch transmission and distribution mains where shallow-angle deflection is required to navigate obstacles, follow road alignments, or connect to non-orthogonal structures without the pressure loss and thrust forces associated with 45- or 90-degree elbows.
• Large-Diameter Irrigation Systems — Mainline routing on golf course, agricultural, and municipal landscape irrigation systems where 12-inch supply mains must change direction gradually to follow terrain, avoid conflicts with buried utilities, or align with pump station or filter system connections.
• Horizontal Directional Drilling (HDD) & Trenchless Applications — Surface transition fittings at HDD bore entry and exit points where the bore angle must be matched with a corresponding shallow-angle elbow to bring the pipe run back to grade or on-structure alignment.
• Offset & Angle Point Assemblies — Combined with 45-degree elbows or additional 22-1/2 degree elbows to fabricate custom directional offsets in municipal and industrial piping systems where standard 45- or 90-degree geometry cannot accommodate alignment constraints.
• Stormwater & Drainage Infrastructure — Large-diameter gravity drainage, stormwater conveyance, and detention system outlet structures where shallow-angle directional changes are needed to align pipe with outfall structures, headwalls, or basin inlets.
• Industrial Process Piping — Process water mains, cooling water distribution, and plant utility lines where gradual directional changes minimize head loss and turbulence in high-flow systems.
• HVAC & Mechanical Systems — Large commercial and industrial chilled water mains, condenser water loops, and cooling tower piping where 12-inch distribution mains must navigate structural elements, equipment clearances, or building geometry with minimal pressure drop.
• Wastewater & Force Mains — Pump station discharge lines and pressurized collection system force mains where directional changes must be made with minimum thrust generation and head loss in high-flow, continuously pressurized service.
