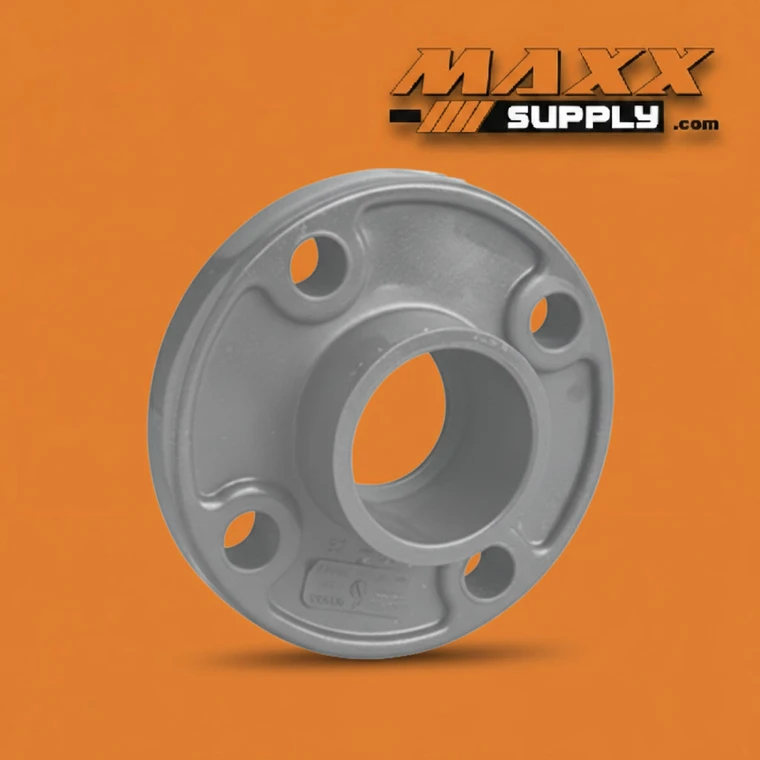

3/4" Flange (Solid Style), Slip PVC Schedule 80 (851-007)

The 851-007 is a Schedule 80 PVC solid style flange with a 3/4-inch slip (socket) connection. Unlike loose ring or Van Stone flange designs, the 851-007 is a one-piece fitting — the bolt ring is fixed and integral to the flange body rather than rotating freely around a separate stub. The socket end solvent cements directly onto the outside diameter of standard 3/4" Schedule 40 or Schedule 80 PVC pipe, creating a permanent, pressure-rated flanged termination point that mates to any standard 150 lb ANSI flat-face flanged valve, pump port, equipment connection, or mating PVC flange.

The solid style design provides a more compact, rigid assembly than loose ring alternatives and is well suited to permanent installations where bolt hole alignment can be established during initial layout and the pipeline does not need to be repositioned after cementing. For installations where future bolt hole alignment adjustments may be needed, the 856-series loose ring flange is the appropriate alternative. As with all PVC flat-face flanges, assemble with a full-face rubber gasket and stainless steel or non-metallic bolts, and torque in a cross pattern to the manufacturer's recommended specification — do not use raised-face steel flanges directly against PVC flat faces, as uneven clamping load can crack the flange face.

Manufactured from heavy-wall Schedule 80 PVC, the 851-007 is suited for industrial, chemical, and process piping where flanged connections are required for equipment compatibility or future line disassembly. The dark gray color is standard for Schedule 80 PVC. Apply a medium-bodied PVC primer and standard-bodied PVC cement per ASTM D2564 to both the pipe OD and socket interior before installation.

Specifications:

Industries & Applications:

• Industrial Process Piping — Provides a permanent flanged termination on 3/4" Schedule 80 PVC process lines at pumps, valves, strainers, and instrumentation in chemical and industrial fluid handling systems where a one-piece rigid flange assembly is preferred.
• Chemical Processing & Water Treatment — Used at chemical metering pump ports, filter housing flanges, and treatment equipment inlets where a fixed-ring PVC flanged connection delivers a compact, low-profile assembly in corrosion-resistant piping systems.
• Municipal & Commercial Plumbing — Provides a flanged termination point on 3/4" Schedule 80 service lines at meters, isolation valves, and equipment connections in commercial and institutional plumbing systems where permanent flanged joints are specified.
• Irrigation & Agricultural Systems — Installed at pump flanges, filter manifold connections, and control equipment ports on 3/4" Schedule 80 PVC systems where a solid, one-piece flanged fitting is preferred for a clean, rigid equipment interface.
• Pool & Spa Equipment Rooms — Transitions 3/4" Schedule 80 chemical feed or auxiliary piping to flanged connections at dosing equipment ports, secondary pump inlets, and treatment system manifolds in permanent equipment room installations.
• Laboratory & Semiconductor Facilities — Provides a fixed flanged disconnect point in Schedule 80 PVC ultrapure water, acid waste, or reagent distribution systems where the pipeline layout is fixed and a compact one-piece flange profile is preferred over a loose ring assembly.
