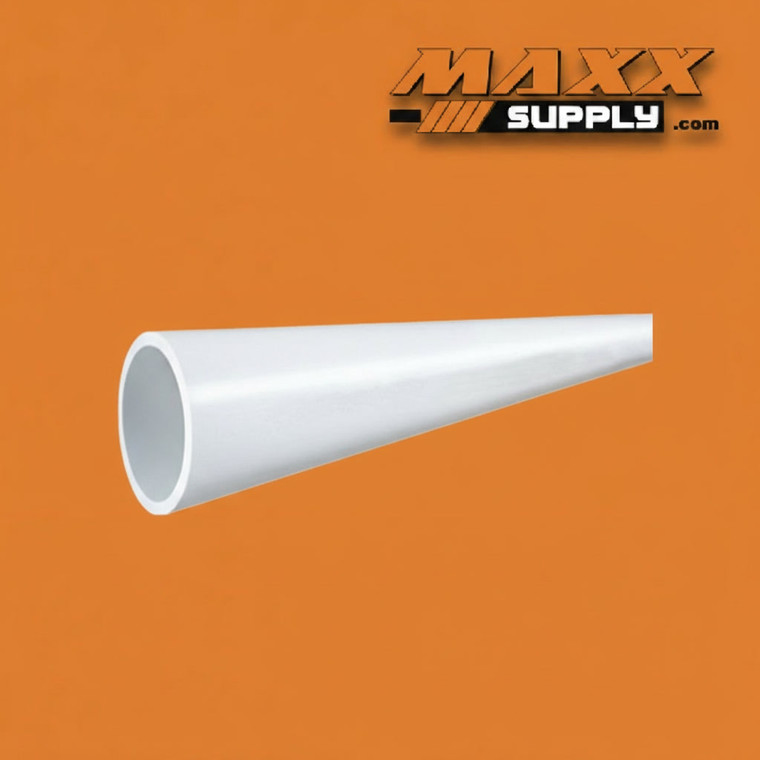

3/4" Schedule 40 PVC Pipe Plain End - 1-5ft

The 3/4" Schedule 40 White PVC Pipe (Plain End, 5-Foot Length) is a commercial-grade thermoplastic pressure pipe manufactured to ASTM D1785, certified to NSF 61 and NSF 14, and rated at 480 PSI at 73°F — the standard-weight Schedule 40 pipe for residential and commercial well system pressure lines, irrigation mainlines and zone headers, pool and spa equipment connections, residential plumbing branch and service lines, water treatment plant branch distribution connections, and light industrial process piping where the 480 PSI pressure rating and Schedule 40 wall thickness satisfy the system specification and Schedule 80's higher wall and pressure rating are not required by the design engineer. The 3/4" size is the co-highest-volume size in the entire Schedule 40 PVC pipe line alongside the 1" size — it is the most common pipe size in residential plumbing, one of the two most widely used sizes in residential and light commercial irrigation, a standard service line size for well system pressure connections and branch distribution, and a ubiquitous equipment connection size across the pool and spa, HVAC, water treatment, and light industrial trades. For plumbing contractors, irrigation installers, well system service professionals, and pool and spa technicians who work across multiple trades, 3/4" Schedule 40 white PVC pipe is the single most routinely stocked and reflexively purchased pipe size in the product line — the one size that is always on the truck, always in the supply house, and always in demand across virtually every residential and commercial service call.

The Schedule 40 wall at 3/4" is a 0.113" nominal wall — a structurally capable and fully code-compliant specification for systems designed to operate within the 480 PSI Schedule 40 pressure rating at this diameter. For system designers and buyers comparing Schedule 40 and Schedule 80 at 3/4", the specification context is direct and practically relevant across the full buyer audience at this size: Schedule 80 carries a 0.154" nominal wall and a 690 PSI rating at the same 1.050" outside diameter — a 36% thicker wall and a 210 PSI higher pressure ceiling. At the 3/4" size, the pressure differential between Schedule 40 and Schedule 80 is the widest in the commercial pipe line — 480 PSI versus 690 PSI is a 44% Schedule 80 pressure advantage and a 210 PSI absolute gap that is the largest in the standard commercial pipe line at any size. This wide pressure gap means the schedule selection argument at 3/4" carries more pressure engineering weight than at any larger pipe size, and buyers whose well systems, irrigation systems, or process piping operates at or near the 480 PSI Schedule 40 ceiling should evaluate their pressure requirements carefully before selecting schedule at this size. For the very broad range of residential and commercial 3/4" applications where operating pressures are comfortably within the 480 PSI window — which includes the large majority of residential plumbing systems, most residential and light commercial well systems, most irrigation systems, and most pool and spa equipment connections at this service size — Schedule 40 is the correct and cost-effective specification that delivers full pressure margin, chemical resistance, and NSF certification without the additional material cost of Schedule 80. Both schedules share the same 1.050" outside diameter, meaning Schedule 40 and Schedule 80 pipe connect directly and interchangeably into the same 3/4" IPS socket fittings — a practical and frequently valuable advantage for mixed-schedule systems and for buyers upgrading pressure-critical sections of an existing Schedule 40 installation to Schedule 80 without disturbing cemented fittings already in the line.

The white color is the standard field and facility identifier for Schedule 40 PVC pipe at every size in the commercial pipe line. At the 3/4" size — the most widely installed pipe size in residential plumbing and one of the two most common sizes across the irrigation, well system, and pool and spa trades — white Schedule 40 identification provides immediate visual confirmation of the installed pipe class for homeowners, installers, inspectors, service technicians, and facility managers, distinguishable at a glance from gray Schedule 80 pipe that may be present in pressure-critical zones of the same system or in adjacent applications within the same facility. For systems where the installer or designer has specified Schedule 40 throughout, or where Schedule 40 and Schedule 80 are used in different pressure zones of the same system, white and gray color coding eliminates material class ambiguity at every point along the installed pipeline without reference to construction documents or pipe markings that may be obscured after installation.

Plain end pipe cuts cleanly to required length with a PVC pipe cutter, fine-tooth handsaw, or power saw and solvent cements directly into any standard IPS socket fitting without additional machining or end preparation. At the 3/4" diameter, use a medium-body solvent cement rated for Schedule 40 PVC at this pipe diameter and the fitting combination being assembled — apply even cement coverage across the full pipe end circumference and the complete depth of the fitting socket, seat and hold the joint fully before initial cement set begins, and follow the manufacturer's set and full cure time recommendations for the ambient temperature at time of installation. Cure times extend at lower temperatures and full cure time compliance before system pressurization is essential for joint integrity at every pipe size. Deburr and bevel the cut end thoroughly before cementing to ensure consistent insertion depth and a clean, complete bond line. The 5-foot length is the standard distribution and online-sale cut length, practical for well system pressure line repairs, irrigation mainline connections, pool and spa equipment connections, residential plumbing branch repairs, valve installations, and project purchases where full 10-foot or 20-foot production sticks are impractical to handle or ship.

NSF 61 certification lists this pipe for potable water contact, and NSF 14 covers compliance with applicable plastics piping material standards — making it the correct pipe for well systems, residential and commercial plumbing, water treatment plant branch distribution, and institutional plumbing applications where NSF-listed materials are required at every system component.

Key Features:

• Schedule 40 white PVC — 0.113" nominal wall, 480 PSI rated at 73°F
• Highest pressure rating in the standard commercial Schedule 40 pipe line at the 3/4" size
• Manufactured to ASTM D1785 — the governing standard for Schedule 40 PVC pressure pipe
• NSF 61 certified for potable water contact; NSF 14 listed
• Plain end for solvent cement installation into socket fittings
• 1.050" OD — dimensionally compatible with all 3/4" PVC Schedule 40 and Schedule 80 socket fittings
• 5-foot cut length for distribution, equipment connections, and repairs
• White color — standard Schedule 40 identification in the field
• Cell classification PVC 12454 per ASTM D1784
• The most widely stocked and purchased Schedule 40 PVC pipe size across the residential plumbing, irrigation, well system, and pool and spa trades
• Pressure derated above 73°F per standard PVC temperature-pressure curves

Specifications:

Industries & Applications:

• Residential & Commercial Plumbing — The 3/4" size is the single most common pipe size in residential plumbing systems and one of the most widely used sizes in light commercial plumbing; used on main water service entry lines, water heater supply connections, whole-house manifold distribution mains, hose bib supply branches, laundry supply lines, and utility connections throughout residential and light commercial buildings where Schedule 40 white PVC is the specified pipe material and operating pressures are within the 480 PSI Schedule 40 ceiling; NSF 61 certification makes this pipe fully appropriate for potable water service at every residential and light commercial plumbing connection at this service size; it is the pipe that residential plumbing contractors and service professionals reach for first on virtually every residential call involving PVC pipe
• Well Systems & Pressure Lines — The 3/4" size is the most common pipe size for residential well system pressure lines, used on well pump discharge connections, pressure tank supply lines, point-of-entry treatment equipment supply connections, water softener and filter system supply lines, and whole-house pressure distribution branches where the 480 PSI Schedule 40 rating provides a generous safety margin above pump operating pressures for the large majority of residential well system configurations; the default pipe size and schedule for residential well system service work across the well-drilling and plumbing trades at this service diameter; for well systems where pump shut-off head, surge pressure, or engineering safety margin requirements approach or exceed 480 PSI, the 3/4" Schedule 80 pipe is the correct specification
• Irrigation & Agricultural Systems — The 3/4" Schedule 40 size is the most common pipe size for residential irrigation mainlines, zone headers, and lateral supply connections at single-family and multifamily residential properties, small commercial properties, community parks, and athletic fields; it appears on pump discharge connections, zone manifold supply headers, drip system mainline feeds, and lateral supply connections throughout residential irrigation systems at every scale from the simple residential lawn system to the larger residential estate irrigation installation; the 480 PSI Schedule 40 rating is fully adequate for the broad range of residential and light commercial irrigation pump configurations operating within this pressure window at the 3/4" service size
• Pool & Spa — Residential & Light Commercial — The 3/4" size is a standard equipment pad supply and return connection, pump suction and discharge branch, and secondary distribution pipe size at residential pools and spas and at smaller commercial aquatic installations; Schedule 40 PVC is the standard pipe material for 3/4" equipment connections and supply lines across the residential pool installation and service industry; PVC construction handles continuous chlorine, salt, and pool treatment chemical exposure, and Schedule 40 at 3/4" is the default equipment branch and supply connection specification across the residential and light commercial pool and spa market at this service diameter
• Industrial Process Piping — Used on 3/4" process water branch connections, cooling water branch distribution lines, chemical transfer branch lines, and plant utility connections in manufacturing, chemical processing, and light industrial facilities where the system design specifies Schedule 40 PVC and operating pressures are within the 480 PSI ceiling; Schedule 40 at 3/4" is fully appropriate and widely used for light industrial process and utility branch piping systems where the design engineer has confirmed that Schedule 40 wall thickness, pressure rating, and white pipe identification satisfy all engineering requirements at this service diameter
• Chemical Processing & Distribution — PVC's broad resistance to acids, bases, chlorine, salts, and oxidizing agents makes Schedule 40 appropriate for 3/4" chemical distribution branch lines, dosing system feed connections, reagent supply branches, and process chemical transfer piping where system operating pressures are designed within Schedule 40's 480 PSI rating; for chemical systems with higher operating pressures, surge allowances, or specifications requiring Schedule 80 gray identification and thicker wall construction, the 3/4" Schedule 80 pipe is the correct specification; for systems within the 480 PSI pressure envelope, Schedule 40 delivers full chemical resistance performance at the lowest installed material cost in the Schedule 40 pipe line across the residential and light commercial pipe size range
• Municipal Water & Wastewater Treatment — NSF 61 listed for potable water contact makes this pipe appropriate for 3/4" distribution branch connections, sample tap supply lines, chemical feed branch connections, instrument and analyzer supply branches, and process water branch connections in water treatment plant environments where the design engineer has specified Schedule 40 PVC for branch distribution piping operating within the 480 PSI pressure rating; white Schedule 40 identification confirms the installed pipe class at every inspection and maintenance point throughout the plant branch distribution system
• HVAC & Commercial Mechanical Systems — Specified on 3/4" chilled water branch connections, fan coil unit supply and return lines, condenser water branch connections, and hydronic heating and cooling terminal branch connections throughout commercial and light industrial mechanical systems where Schedule 40 PVC is the system material standard and system pressures are within the 480 PSI rating; the 3/4" size is one of the most common terminal branch and equipment connection sizes in commercial HVAC systems, and Schedule 40 is the standard specification at this size where design pressures and safety margin requirements are satisfied within the Schedule 40 ceiling across the broad range of commercial mechanical system configurations that use 3/4" PVC at the terminal branch and zone connection level
