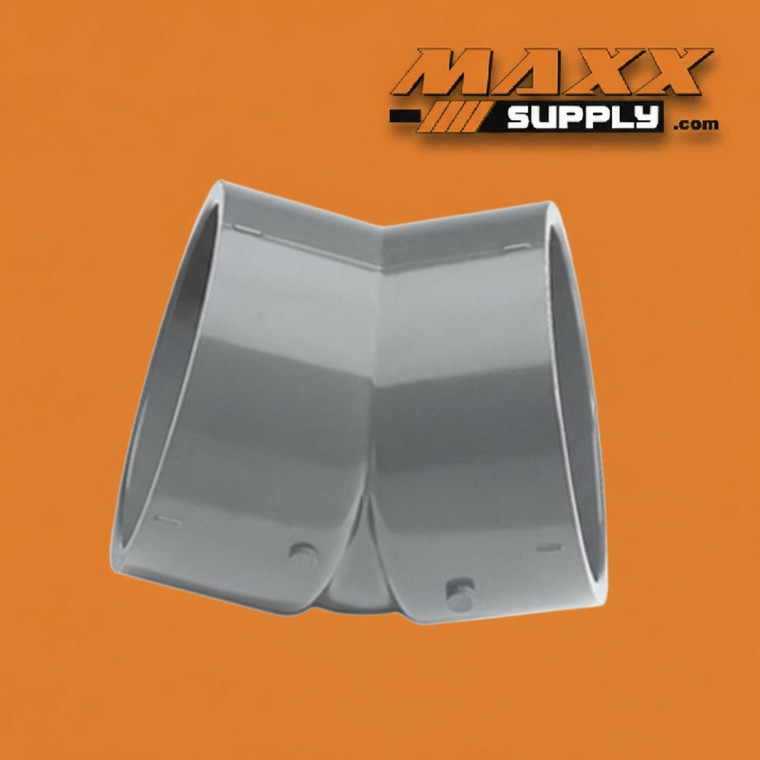

30 Degree Elbow, Slip x Slip PVC Schedule 80 6" (815-060)

The 6" PVC Schedule 80 30-Degree Elbow (Slip x Slip) is a specialty fitting engineered for piping systems that require a precise, shallow directional change that falls between the geometry of a 22.5-degree and a 45-degree elbow. With slip socket connections on both ends, this fitting installs permanently via PVC solvent cement — creating a full-bore, pressure-tight joint that maintains consistent flow characteristics through the transition.

The 30-degree elbow is a non-standard angle in the PVC fitting world, which means it is specified deliberately rather than selected from a general catalog. Its most common role is in system layouts where routing constraints, equipment alignment requirements, or structural obstructions demand a precise angular offset that standard elbow increments cannot achieve cleanly. In large-diameter industrial and process piping, even a few degrees of difference in fitting geometry can determine whether a line routes correctly around interference points, aligns properly with equipment flanges, or fits within the spatial envelope of a mechanical room or pipe rack.

Schedule 80 PVC provides the elevated wall thickness and pressure rating required for industrial service — chemical processing, water treatment, and other demanding environments where Schedule 40 fittings are not specified. The thicker wall also provides greater mechanical strength at the fitting body, an advantage in exposed or above-ground installations where fittings are subject to handling, thermal cycling, or incidental mechanical contact. All slip socket connections are sized for standard Schedule 80 PVC pipe and are designed for solvent cement installation per ASTM D2564 procedures. Manufactured to ASTM D2467 standards.

Specifications:

Industries & Applications:

• Industrial Process Piping — The primary application for a 30-degree specialty elbow; used in process plant pipe racks, equipment connections, and constrained routing layouts where precise angular offsets are required to navigate structural interference or align with process equipment
• Chemical Processing & Handling — Specified in chemical-resistant PVC conveyance systems where the corrosion resistance of Schedule 80 PVC is required and routing geometry cannot be achieved with standard 45-degree or 22.5-degree elbows
• Water & Wastewater Treatment — Applied in treatment plant process piping where large-diameter PVC mains must navigate tight mechanical spaces or align with pumps, filters, and treatment equipment at non-standard angles
• Industrial Drainage & Discharge — Used in large-bore drain and discharge lines in manufacturing and processing facilities where sloped gravity drainage requires precise angular transitions to maintain correct fall across long horizontal runs
• Municipal Infrastructure — Incorporated in pump station and lift station piping where equipment alignment and spatial constraints in prefabricated or pre-engineered structures demand non-standard elbow angles
• HVAC & Mechanical Rooms — Applied in chilled water, cooling tower, and process cooling loops in large commercial and industrial facilities where PVC piping must navigate congested mechanical spaces with precision
