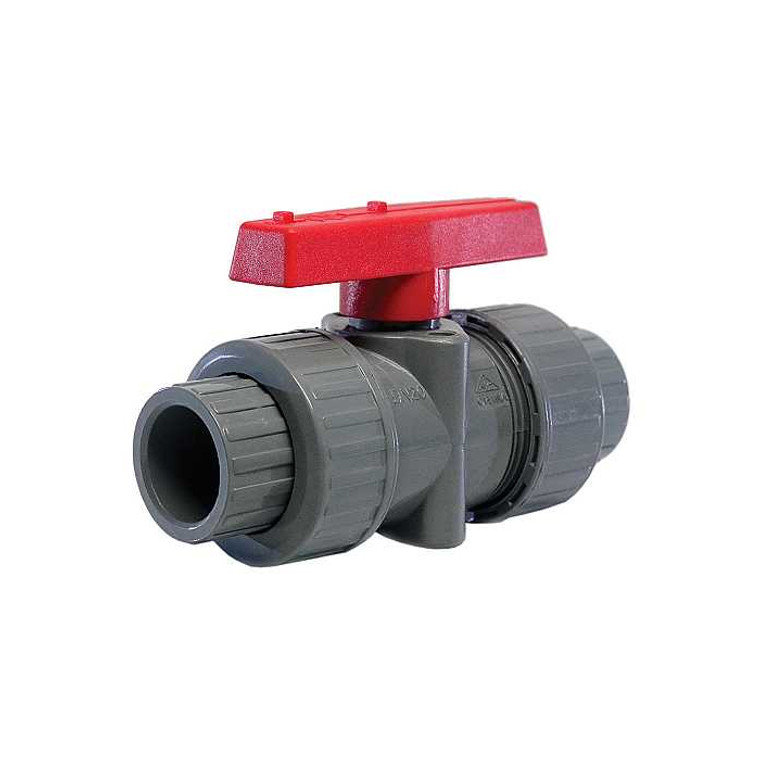

4" True Union Ball Valve Schedule 80 Gray (VLV-800-TUBV-040)

The 4" Schedule 80 Gray PVC True Union Ball Valve (VLV-800-TUBV-040) is a heavy-duty, full port isolation valve built for industrial, municipal, and large-scale commercial piping systems where reliable quarter-turn shut-off, chemical resistance, and in-line serviceability are required at the 4" pipe size. This is a large-format valve — one that appears on pump station headers, treatment plant distribution manifolds, large irrigation mainlines, and industrial process piping where a 4" isolation point demands a valve that can handle the job for the long term without corrosion, contamination, or costly removal for service.

The Schedule 80 gray PVC body provides a meaningful upgrade in wall thickness, impact resistance, and pressure capability over Schedule 40 construction — important at the 4" size where valve bodies are larger, heavier, and subject to more mechanical stress from pipe weight, thermal expansion, and installation forces. The Schedule 80 full-bore design, strong buttress-thread union nuts, and fully serviceable replaceable components make this valve well-suited for industrial and chemical processing applications Spearsmfg where durability and long service life are non-negotiable.

The full port ball design maintains a clear, unobstructed flow path equal to the pipe's interior bore — critical at the 4" size where partial-port valves create meaningful flow restriction, turbulence, and pressure drop in high-volume systems. When open, flow passes straight through with no reduction, no deflection, and minimal head loss. The chrome or PVC ball rotates against self-adjusting PTFE seats for a bubble-tight shut-off with low operating torque that remains consistent over years of service, even in chemical or sediment-laden service conditions where ball valve seats in metal valves would deteriorate.

The true union design is the defining maintenance advantage of this valve. The socket union end connectors solvent cement permanently into the 4" PVC pipeline — the valve carrier body unscrews from both unions for complete in-line removal in minutes, without cutting pipe, draining the entire system, or disturbing adjacent components. The true union design means the main part of the valve can be removed from the piping system to be repaired or replaced without disassembling the system, saving time and money. PRM Filtration On industrial and municipal systems where 4" isolation valves may need inspection or seat replacement on a maintenance schedule, this is a substantial operational and cost advantage over fixed-end valves.

PTFE seats provide easier turning, better sealing, and longer valve life. Schedule 80 PVC with EPDM O-rings is rated at 150 PSI at 73°F. Pentair Aquatic Eco-Systems Maximum service temperature is 140°F for PVC construction, with pressure derated above 100°F per standard PVC temperature-pressure curves.

Key Features:

• Schedule 80 gray PVC body — thicker walls, greater impact resistance, and broader chemical compatibility than Schedule 40
• Full port design — unobstructed bore equals pipe ID for maximum flow with minimal pressure drop
• True union socket ends for complete in-line valve removal without cutting pipe
• PTFE seats — self-adjusting, low-torque, bubble-tight shut-off with long service life
• EPDM O-rings for broad chemical compatibility across acids, bases, and oxidizing agents
• Quarter-turn lever handle for fast, positive on/off actuation
• 150 PSI rated at 73°F; 140°F maximum service temperature
• Conforms to ASTM F1970 (ball valve standard) and ASTM D1784 (PVC material)
• Excellent resistance to chlorine, acids, bases, salts, and industrial chemicals
• Replaceable internal components — seats, O-rings, and seals are all field-serviceable

Specifications:

Industries & Applications:

• Municipal Water & Wastewater Treatment — A standard isolation valve on 4" distribution headers, treatment plant process lines, filter inlet/outlet connections, and pump station discharge piping; PVC construction eliminates the corrosion and tuberculation that shortens the life of ductile iron or cast iron valves in water treatment environments
• Industrial Process Piping — Used on 4" process water, chemical transfer, cooling water, and plant utility lines in manufacturing, chemical processing, and industrial facilities where metal valves would corrode, contaminate the process fluid, or require frequent replacement
• Large-Scale Irrigation & Agriculture — Isolation and sectional shut-off on 4" irrigation mainlines, pump station headers, and zone manifolds on commercial farms, golf courses, athletic fields, and municipal landscape irrigation systems
• Chemical Processing & Dosing Systems — EPDM O-rings and PTFE seats provide broad chemical compatibility across acids, caustics, oxidizers, and salts; the true union design allows in-line seat and seal replacement when chemical service degrades elastomers over time
• Pool & Spa — Commercial Facilities — Used on main circulation lines, filter inlet/outlet connections, and backwash headers at commercial aquatic facilities, water parks, and municipal pools where 4" PVC piping is standard and chemical resistance to chlorinated water is required
• Aquaculture & Water Features — Full port flow efficiency and PVC chemical resistance make this valve a reliable isolation point on 4" recirculating system headers, pond drain lines, and large-scale aquaculture facility water management piping
• Fire Suppression Support Systems — Used on auxiliary water supply headers and test connections adjacent to large wet sprinkler systems where corrosion-resistant isolation valves are required on support piping
• HVAC & Mechanical Systems — Specified on chilled water, condenser water, and process cooling headers in large commercial and industrial mechanical systems where 4" PVC piping replaces metal for corrosion resistance and weight reduction
