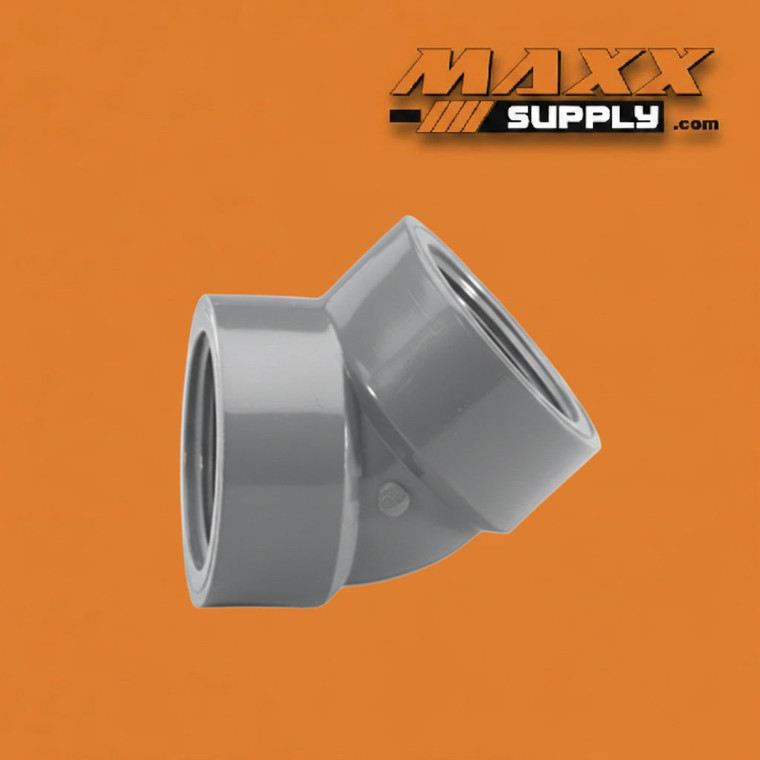

45 Degree Elbow, FPT x FPT PVC Schedule 80 3" (819-030)

The 3" PVC Schedule 80 45-Degree Elbow (FPT x FPT) provides a gradual, half-angle directional change for industrial PVC piping systems assembled with threaded connections. With female NPT threads on both ends, this fitting accepts standard male-threaded pipe, nipples, or adapters on each side — delivering the same hydraulic and directional advantages of a 45-degree bend geometry while preserving the disassembly and serviceability that threaded connections provide in maintenance-heavy industrial environments.

The 45-degree angle is a deliberate specification choice over a 90-degree threaded elbow wherever routing geometry allows. The shallower directional change reduces turbulence at the bend, lowers pressure drop through the fitting, and minimizes mechanical stress on the threaded joints at each end of the elbow — a consideration that carries added significance in threaded assemblies, where repeated pressure cycling and thermal movement apply torque and bending stress directly to the thread engagement rather than to a cemented pipe wall. In systems where a 45-degree offset is achievable within the layout, specifying this elbow over a 90-degree fitting preserves more available pressure head and reduces long-term fatigue at the threaded joint interfaces.

The FPT x FPT connection type is the defining feature that distinguishes this elbow from its slip-socket equivalent. Threaded elbows are specified when the system is assembled entirely in threaded connections — typically in smaller-diameter industrial systems, chemical handling lines, pump and equipment connections, and maintenance-accessible service points where the ability to break and reassemble a joint without cutting pipe is a design priority. The female threads on both ends accept any standard 3-inch male NPT fitting, giving the system designer full flexibility to connect threaded nipples, close nipples, union halves, or male adapters on either side of the elbow depending on what the routing requires.

Schedule 80 PVC provides the additional wall thickness at the thread engagement that industrial threaded service demands. The thicker Schedule 80 wall supports deeper thread form engagement, distributes thread load across more material, and reduces the risk of thread failure under sustained pressure — a known performance advantage over Schedule 40 in threaded PVC applications operating at elevated pressures or subject to thermal cycling. This is particularly relevant at elbow fittings, where the combination of directional change and threaded connection concentrates both hydraulic and mechanical stress at the joint. Manufactured to ASTM D2467 standards and compatible with standard NPT threaded fittings throughout the 3-inch nominal pipe size range.

Specifications:

Industries & Applications:

• Chemical Processing & Handling — Specified in threaded Schedule 80 PVC chemical conveyance lines where a 45-degree directional change is required and the FPT x FPT connection allows the elbow to be removed and replaced without cutting into the piping system — a critical serviceability advantage in chemical handling environments where line access for maintenance and inspection is routine
• Water & Wastewater Treatment — Applied in treatment plant process piping and pump station assemblies where 3-inch threaded Schedule 80 lines require a gradual directional transition at equipment connections, instrumentation taps, or chemical dosing headers where threaded access for periodic service is built into the system design
• Industrial Process Piping — Used in threaded industrial process lines where routing constraints require a 45-degree offset and the fully threaded FPT x FPT configuration maintains the disassembly flexibility of the threaded system at the elbow without introducing a cemented joint that would require cutting out for future modification
• Pump Connections & Mechanical Assemblies — Incorporated in pump suction and discharge piping where a 45-degree threaded elbow provides a gradual directional transition at the pump flange adapter or equipment inlet, reducing turbulence and stress at the connection point while preserving the ability to break the joint for pump service or replacement
• Irrigation & Agricultural Systems — Specified in 3-inch Schedule 80 irrigation mainlines and pump discharge assemblies where threaded connections are required at filter inlets, pressure regulator connections, and valve bodies and a 45-degree elbow provides a gradual directional change that reduces pressure loss through the fitting relative to a 90-degree threaded elbow
• Industrial Drainage & Chemical Discharge — Applied in threaded discharge lines handling corrosive or chemically active effluents where Schedule 80 PVC is the material of choice and a 45-degree elbow provides a smooth directional transition in gravity or low-pressure discharge piping that minimizes turbulence and reduces the risk of solids accumulation at the bend
