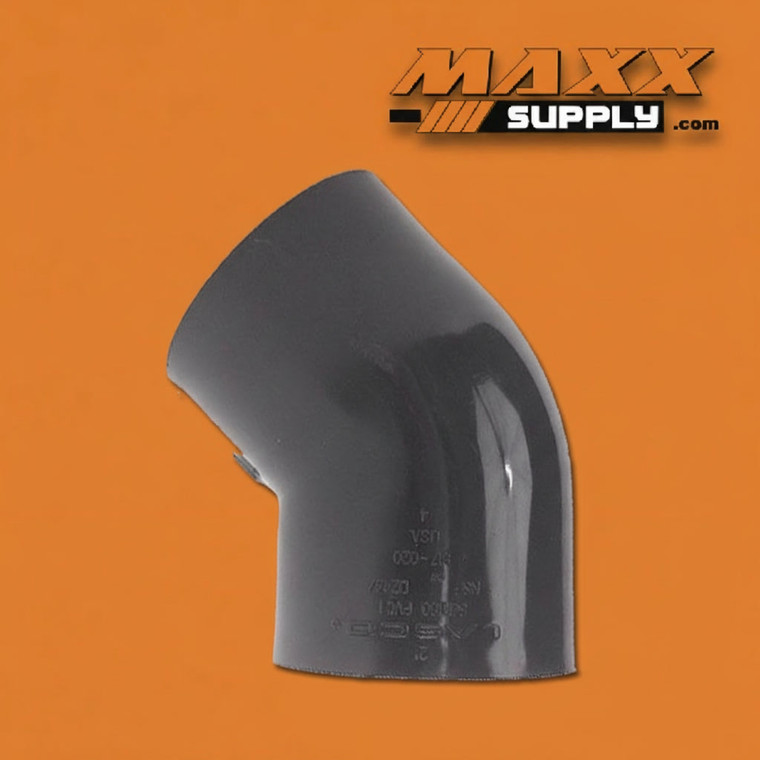

45 Degree Elbow, Slip x Slip PVC Schedule 80 4" (817-040)

The 4" PVC Schedule 80 45-Degree Elbow (Slip x Slip) is a heavy-duty thermoplastic fitting designed to introduce a gradual, half-angle directional change in industrial PVC piping systems. With slip socket connections on both ends, this fitting installs permanently via PVC solvent cement — producing a full-bore, pressure-tight joint that maintains the pressure rating and chemical resistance of the Schedule 80 system through the directional transition and along the downstream run.

The 817-040 is the 4-inch member of the 817-series Schedule 80 45-degree slip elbow line, sitting directly below the previously described 817-060 (6-inch) in the series. The design intent, specification rationale, and hydraulic principles are consistent across both sizes — the 45-degree geometry provides a shallower directional change than a 90-degree elbow, reducing turbulence at the bend, lowering pressure drop through the fitting, and minimizing mechanical stress on the pipe assembly at the point of transition. The distinction between the two sizes is the system context. Where the 6-inch configuration serves large industrial process mains, chemical headers, and heavy municipal infrastructure, the 4-inch elbow operates in the medium-diameter range that spans a broader set of industrial and commercial applications — chemical processing lines, pump discharge assemblies, irrigation mains, water treatment process piping, and industrial mechanical systems where 4 inches is the standard pipe size for the primary distribution or conveyance function.

At 4 inches, the 45-degree elbow is a fitting where the hydraulic efficiency argument for specifying it over a 90-degree elbow is particularly practical and frequently acted upon. A 4-inch Schedule 80 system is large enough that pressure drop through each fitting accumulates meaningfully across a multi-elbow run, and small enough that a 45-degree pair approach — using two 45-degree elbows to achieve a 90-degree offset over a longer, more gradual sweep — is physically manageable in most installation environments without the spatial constraints that make a two-elbow approach impractical in tightly confined layouts. Engineers and contractors specifying 4-inch Schedule 80 systems for pump discharge, chemical distribution, or process piping routinely choose 45-degree elbows wherever the routing allows precisely because the pressure and flow efficiency gains over the service life of the system are tangible and cost-justifiable at this diameter.

The relationship between this fitting and the 4-inch Schedule 80 90-degree elbow is the central selection decision on any 4-inch Schedule 80 routing change: 45 degrees when layout permits and hydraulic efficiency is a design priority; 90 degrees when spatial constraints require the most compact directional change available. Both fittings are permanent solvent-weld installations — once the elbow is cemented, the directional commitment is made — which makes specifying the correct angle at the design stage more consequential than in a threaded assembly where an elbow can be unthreaded and replaced. All slip socket connections are sized for Schedule 80 PVC pipe and designed for solvent cement installation per ASTM D2564 procedures. Manufactured to ASTM D2467 standards and fully compatible with Schedule 80 PVC pipe throughout its rated pressure and temperature range.

Specifications:

Industries & Applications:

• Chemical Processing & Handling — Specified in 4-inch chemical-resistant Schedule 80 PVC process lines where a gradual directional change reduces turbulence and mechanical stress at the bend in systems handling acids, bases, and industrial solvents — the 45-degree geometry preserving more available pressure head through the fitting than a 90-degree elbow would at the same flow velocity and pipe diameter
• Pump Discharge & Suction Lines — The most common application for a 4-inch Schedule 80 45-degree elbow in commercial and industrial pumping systems; used in pump discharge piping where gradual bends at the pump outlet reduce turbulence in the immediate post-pump flow zone, improve flow profile in the downstream run, and reduce the cyclic stress on the cemented joint at the elbow body through the pressure pulsations of pump operation
• Water & Wastewater Treatment — Applied in treatment plant process mains where 4-inch Schedule 80 piping requires directional transitions at structural boundaries, equipment footprints, and process area layouts — the 45-degree elbow specified over a 90-degree fitting wherever the treatment plant layout allows the additional linear space the shallower angle requires
• Industrial Process Piping & Pipe Racks — Used in process plant pipe racks and mechanical assemblies where 45-degree offsets are deliberately specified over 90-degree elbows to preserve available pressure head, reduce long-term stress on the piping assembly at directional change points, and minimize turbulence-induced erosion in process lines conveying abrasive or solids-bearing fluids at sustained high velocity
• Irrigation & Agricultural Infrastructure — Applied in high-pressure 4-inch Schedule 80 irrigation mainlines and pump discharge assemblies where routing transitions across field layouts, around structures, or between elevation changes are best achieved with 45-degree bends that maintain efficient flow through directional changes across long runs where pressure loss at each fitting compounds meaningfully over the system's total length
• Municipal Infrastructure & Pump Stations — Specified in pump station discharge headers, lift station piping, and treatment plant process mains where 4-inch Schedule 80 runs require directional transitions and where the hydraulic efficiency of the 45-degree geometry is a design consideration in systems where pump energy costs, pressure budgets, and long-term system performance are engineering priorities rather than secondary concerns
