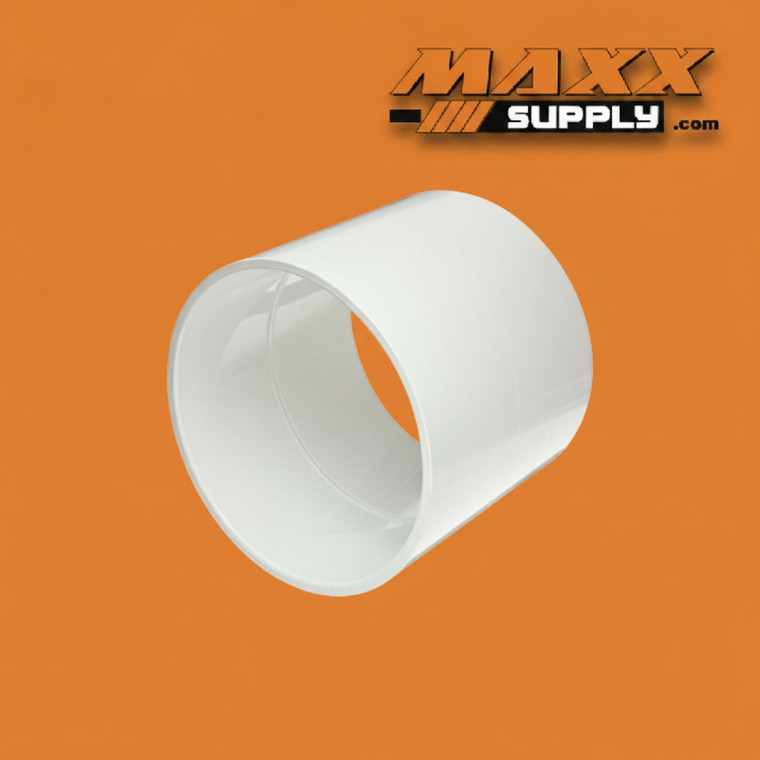

5" Coupling, Slip x Slip PVC Schedule 40 (429-050)

The 429-050 is a 5" PVC Schedule 40 straight coupling with solvent-weld slip (socket) ends on both sides, designed to join two lengths of 5" IPS pipe in a permanent, pressure-rated inline connection. Both socket ends receive 5" pipe for standard solvent cement installation, with an internal center stop — a molded ridge at the midpoint of the fitting bore — ensuring equal pipe insertion depth on each side and preventing either pipe end from being pushed through to the opposite socket during assembly.

Straight couplings are among the most fundamental fittings in any PVC piping system, serving three primary functions: extending a run of pipe beyond a single pipe length, making a field repair by cutting out a damaged pipe section and bridging the gap, or providing a defined transition point between pipe segments of different manufacture or procurement dates within a continuous run. At 5", the 429-050 serves all three functions in a size that sees regular use in municipal water distribution, large-scale irrigation infrastructure, and industrial process piping where 5" mains are specified.

The 5" nominal size occupies a specific position in the PVC pipe sizing landscape — less common than the adjacent 4" and 6" sizes but specified consistently in systems originally designed around it. Buyers working with 5" systems typically know their size requirement precisely; the 429-050 is built to meet that specification without ambiguity.

At 5", full large-diameter solvent cement procedure is required for a reliable joint. Both the pipe ends and the socket bores should be wiped clean of debris, moisture, and surface contamination before beginning. Apply PVC primer to all mating surfaces — both socket bores and both pipe ends — allowing primer to flash off briefly before proceeding. Coat all primed surfaces with a heavy-bodied PVC solvent cement rated for large-diameter schedule pipe, ensuring full circumferential coverage with no dry spots or voids. Insert each pipe end with a slight twisting motion immediately after cement application, pushing firmly to the center stop. Hold each joint under pressure for a minimum of 30 to 60 seconds while the initial bond develops, keeping the assembly aligned throughout. Follow cement manufacturer cure time specifications before pressurizing — at 5", full cure at ambient temperature is essential before any hydraulic load is applied to the joint.

Manufactured from rigid PVC Type I, Grade I (Cell Classification 12454) to ASTM D2466, the 429-050 provides broad corrosion resistance to acids, bases, salts, and many industrial fluids encountered in the applications where 5" PVC systems are deployed. NSF/ANSI 61 certification confirms suitability for potable water contact. The pressure rating of approximately 130 PSI @ 73°F reflects the size-to-pressure relationship in Schedule 40 PVC at this diameter — system designers operating 5" lines near or above this threshold should evaluate Schedule 80 components for the service conditions.

Specifications:

Industries & Applications:

• Municipal Water Distribution & Infrastructure — Extending 5" water main runs, making field repairs to damaged pipe sections, and providing defined transition points in distribution networks where 5" mains are specified; NSF 61 listing confirms suitability for potable water service throughout
• Industrial & Chemical Processing — Inline pipe joining and repair in 5" process lines carrying corrosive fluids, industrial chemicals, or process water where metal pipe systems would be subject to corrosion and require frequent maintenance
• Irrigation & Agricultural Infrastructure — Joining and extending 5" mainline pipe runs in large-scale center pivot, gravity-fed, and pressurized drip irrigation systems where 5" supply mains serve large field or greenhouse zones
• Wastewater & Effluent Systems — Straight pipe joining in 5" gravity or pressurized wastewater conveyance and effluent distribution systems; chemical resistance to sewage constituents and treatment chemicals is a key performance requirement
• Drainage & Stormwater Systems — Extending and repairing 5" stormwater conveyance pipe runs in retention and detention basin outlet structures, underground drainage networks, and site drainage infrastructure
• Swimming Pool & Aquatic Facility Piping — Joining 5" recirculation, backwash, and supply main pipe runs in large commercial pool and aquatic facility piping systems where corrosion-free, chlorine-resistant construction is essential
• Industrial Plant Utilities — Cooling water, process water, and utility fluid distribution in plant piping systems where 5" mains serve multiple equipment drops or process zones from a common supply header
