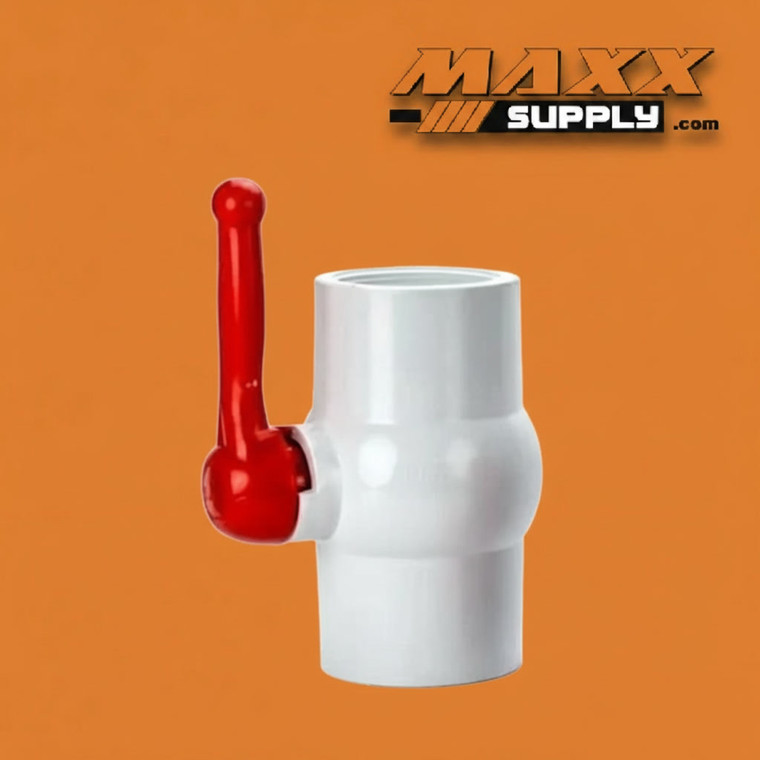

Compact Ball Valve White PVC Threaded 6” (1060WT)
$196.99
The 1060WT is a 6-inch compact ball valve in white PVC built for full-bore, quarter-turn shutoff in large-diameter piping systems where corrosion resistance, NSF compliance, and ease of installation are priorities. The threaded (NPT) end connections eliminate the need for solvent cement, making this valve a practical choice for systems requiring periodic maintenance, inline serviceability, or future modifications without cutting into bonded pipe.
As the white PVC counterpart to the 1060GT (grey PVC), the 1060WT is the preferred specification for potable water systems, municipal infrastructure, and food-grade applications where NSF 61 certification and material traceability are required. White PVC (Type I, Cell Class 12454) is the industry standard for water service and is widely recognized and accepted across municipal bid specifications and plumbing codes.
The compact body design shortens the face-to-face installation length versus standard full-size ball valves — an advantage in tight mechanical rooms, valve vaults, and inline installations with limited clearance. The quarter-turn lever handle delivers fast, positive shutoff with immediate visual confirmation of valve position — essential for maintenance crews and operators managing large systems with multiple isolation points.
Specifications
| Attribute | Detail |
|---|---|
| Model Number | 1060WT |
| Nominal Size | 6 Inch |
| Valve Type | Compact Ball Valve |
| End Type | Threaded x Threaded (NPT) |
| Material | White PVC (Type I, Cell Class 12454) |
| Body Style | Compact / Short Pattern |
| Operation | Quarter-Turn Lever Handle |
| Seal / Seat Material | EPDM or PTFE (confirm with manufacturer) |
| Max Temperature | 140°F (60°C) |
| Standards | ASTM D1784, NSF 61 (Potable Water) |
Industries & Applications
The 1060WT is the specification-grade choice for potable water and municipal-compliant systems at large diameters:
- Municipal Water Distribution — NSF 61 certified for use in pressurized potable water mains, service laterals, and distribution system isolation points requiring code-compliant materials.
- Water & Wastewater Treatment — Ideal for isolation valves on treatment trains, chemical feed lines, and recirculation loops in facilities where white PVC is the standard specified material.
- Agricultural & Irrigation Systems — Threaded connections simplify seasonal installation, removal, and winterization on mainline headers and pump discharge assemblies.
- Commercial Plumbing & Mechanical — Suitable for large-building cold water supply, makeup water lines, and rooftop mechanical systems where NSF compliance is required by code.
- Aquaculture & Food Processing — White PVC and NSF 61 certification make the 1060WT appropriate for systems with direct or indirect contact with potable water or food-grade fluids.
- Swimming Pools & Water Parks — Commonly specified on high-volume recirculation and filtration headers where chemical resistance and water-safe materials are non-negotiable.
(No reviews yet)
Write a Review
Compact Ball Valve White PVC Threaded 6” (1060WT)
The 1060WT is a 6-inch compact ball valve in white PVC built for full-bore, quarter-turn shutoff in large-diameter piping systems where corrosion resistance, NSF compliance, and ease of installation are priorities. The threaded (NPT) end connections eliminate the need for solvent cement, making this valve a practical choice for systems requiring periodic maintenance, inline serviceability, or future modifications without cutting into bonded pipe.
As the white PVC counterpart to the 1060GT (grey PVC), the 1060WT is the preferred specification for potable water systems, municipal infrastructure, and food-grade applications where NSF 61 certification and material traceability are required. White PVC (Type I, Cell Class 12454) is the industry standard for water service and is widely recognized and accepted across municipal bid specifications and plumbing codes.
The compact body design shortens the face-to-face installation length versus standard full-size ball valves — an advantage in tight mechanical rooms, valve vaults, and inline installations with limited clearance. The quarter-turn lever handle delivers fast, positive shutoff with immediate visual confirmation of valve position — essential for maintenance crews and operators managing large systems with multiple isolation points.
Specifications
| Attribute | Detail |
|---|---|
| Model Number | 1060WT |
| Nominal Size | 6 Inch |
| Valve Type | Compact Ball Valve |
| End Type | Threaded x Threaded (NPT) |
| Material | White PVC (Type I, Cell Class 12454) |
| Body Style | Compact / Short Pattern |
| Operation | Quarter-Turn Lever Handle |
| Seal / Seat Material | EPDM or PTFE (confirm with manufacturer) |
| Max Temperature | 140°F (60°C) |
| Standards | ASTM D1784, NSF 61 (Potable Water) |
Industries & Applications
The 1060WT is the specification-grade choice for potable water and municipal-compliant systems at large diameters:
- Municipal Water Distribution — NSF 61 certified for use in pressurized potable water mains, service laterals, and distribution system isolation points requiring code-compliant materials.
- Water & Wastewater Treatment — Ideal for isolation valves on treatment trains, chemical feed lines, and recirculation loops in facilities where white PVC is the standard specified material.
- Agricultural & Irrigation Systems — Threaded connections simplify seasonal installation, removal, and winterization on mainline headers and pump discharge assemblies.
- Commercial Plumbing & Mechanical — Suitable for large-building cold water supply, makeup water lines, and rooftop mechanical systems where NSF compliance is required by code.
- Aquaculture & Food Processing — White PVC and NSF 61 certification make the 1060WT appropriate for systems with direct or indirect contact with potable water or food-grade fluids.
- Swimming Pools & Water Parks — Commonly specified on high-volume recirculation and filtration headers where chemical resistance and water-safe materials are non-negotiable.
