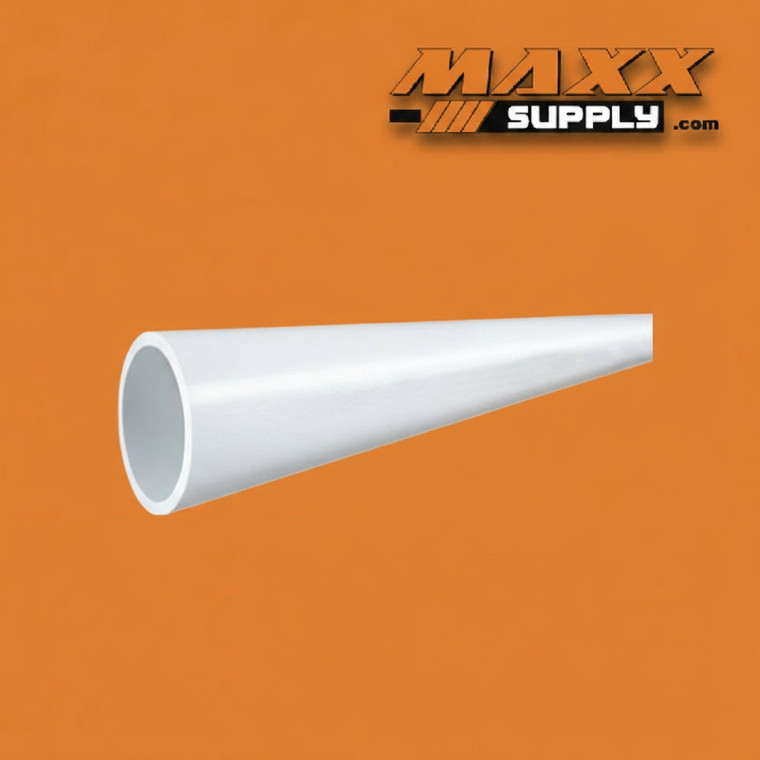

6" Schedule 40 PVC Pipe Plain End - 1-5ft

The 6" Schedule 40 White PVC Pipe (Plain End, 1-5 Foot Length) is a large-diameter thermoplastic pressure pipe manufactured to ASTM D1785, certified to NSF 61 and NSF 14, and rated at 180 PSI at 73°F — the standard-weight Schedule 40 pipe for large-diameter commercial irrigation primary mains, industrial process piping trunks, municipal water treatment plant branch and distribution piping, large commercial pool and aquatic facility recirculation mains, and chemical distribution headers where the 180 PSI pressure rating and Schedule 40 wall thickness satisfy the system specification and Schedule 80's higher wall and pressure rating are not required by the design engineer. The 6" size is one of the most significant sizes in the large-diameter Schedule 40 PVC pipe line — it is the dominant primary main size for large commercial irrigation pump stations, the standard recirculation main size for large commercial pools and aquatic centers, a primary distribution size in municipal water treatment plant branch piping, and a common process water and chemical distribution trunk size in industrial facilities where Schedule 40 is the specified system material and operating pressures are designed within the 180 PSI Schedule 40 ceiling.

The Schedule 40 wall at 6" is a 0.280" nominal wall — a structurally capable and fully code-compliant specification for the pressure and loading conditions of systems designed to operate within the 180 PSI Schedule 40 pressure rating at this diameter. For system designers comparing Schedule 40 and Schedule 80 at 6", the specification context is direct: Schedule 80 carries a 0.432" nominal wall and a 280 PSI rating at the same 6.625" outside diameter — a 54% thicker wall and a 56% higher pressure ceiling. Where the design operating pressure, surge allowance, and safety margin requirements of the system fit within Schedule 40's 180 PSI at 6", Schedule 40 is the cost-effective and fully specification-compliant pipe class. Where the design requires the additional pressure margin, structural wall thickness, or Schedule 80 material class identification that gray pipe provides, Schedule 80 is the correct upgrade — and both schedules connect into the same 6" IPS socket fittings without modification. At the 6" size, the pressure differential between schedules is the widest in the standard commercial pipe line above 2" — 180 PSI versus 280 PSI — making the schedule selection decision more consequential at 6" than at the 3" or 4" sizes where the pressure gap had narrowed; buyers and designers should evaluate system pressure requirements carefully before selecting schedule at this size.

The white color is the standard field and facility identifier for Schedule 40 PVC pipe at every size in the commercial pipe line. At the 6" primary mainline size, white Schedule 40 identification provides immediate visual confirmation of the installed pipe class for inspectors, maintenance engineers, and facility managers — distinguishable at a glance from gray Schedule 80 pipe that may be present in other sections of the same system or facility. For systems where the designer has specified Schedule 40 throughout, or where Schedule 40 and Schedule 80 are used in different pressure zones of the same system, the white and gray color coding eliminates material class ambiguity at every point along the installed pipeline without reference to construction documents or pipe markings that may be obscured by soil, insulation, or paint after installation.

Plain end pipe cuts to required length with a power saw or large-diameter PVC pipe cutter and solvent cements directly into any standard IPS socket fitting without additional machining or end preparation. At the 6" diameter, joint assembly requires deliberate, careful technique — the large bonding surface area demands thorough, even heavy-body solvent cement coverage across the full circumference of the pipe end and the complete depth of the fitting socket, careful working time management to ensure full seating and insertion before initial cement set begins, and strict full cure time compliance before any system pressurization. Use a heavy-body solvent cement rated for Schedule 40 PVC at the 6" pipe diameter and the specific fitting combination being assembled. Follow the manufacturer's set and full cure time recommendations for the ambient temperature at time of installation — cure times extend significantly at lower temperatures and must be respected in full at this large diameter where partial cure under system pressure is the primary root cause of joint failure. Deburr and bevel the cut end thoroughly before cementing to ensure consistent insertion depth and a complete circumferential bond line. The 5-foot length is the standard distribution and online-sale cut length, practical for pump station connections, valve vault installations, equipment room supply and return connections, maintenance repairs, and project purchases where full 10-foot or 20-foot production sticks are impractical to handle or ship at the 6" diameter where pipe weight, freight logistics, and job site handling requirements are materially greater than at smaller commercial pipe sizes.

NSF 61 certification lists this pipe for potable water contact, and NSF 14 covers compliance with applicable plastics piping material standards — making it the correct pipe for municipal water treatment primary distribution, large commercial and municipal well system mains, and institutional plumbing applications where NSF-listed materials are required at every component of the primary distribution system.

Key Features:

• Schedule 40 white PVC — 0.280" nominal wall, 180 PSI rated at 73°F
• Manufactured to ASTM D1785 — the governing standard for Schedule 40 PVC pressure pipe
• NSF 61 certified for potable water contact; NSF 14 listed
• Plain end for solvent cement installation into socket fittings
• 6.625" OD — dimensionally compatible with all 6" PVC Schedule 40 and Schedule 80 socket fittings
• 5-foot cut length for distribution, equipment connections, and repairs
• White color — standard Schedule 40 identification in the field
• Cell classification PVC 12454 per ASTM D1784
• Cost-effective large-diameter specification for systems within the 180 PSI pressure ceiling
• Pressure derated above 73°F per standard PVC temperature-pressure curves

Specifications:

Industries & Applications:

• Irrigation & Agricultural Systems — The 6" Schedule 40 size is one of the most widely used primary pump station discharge mains and principal distribution trunks in large commercial irrigation systems at golf courses, sports complexes, municipal parks, commercial farms, and large-acreage agricultural operations where design operating pressures fall within Schedule 40's 180 PSI ceiling; for commercial irrigation systems where pump station discharge pressures, surge allowances, and system safety margin requirements are designed within 180 PSI at the primary main, Schedule 40 is the correct and cost-effective pipe specification at this high-volume distribution size — and the white pipe identification confirms the installed material class at every point along the primary main for inspectors and future maintenance personnel
• Industrial Process Piping — Used on 6" process water trunks, cooling tower primary supply and return mains, large-volume chemical transfer headers, and primary plant utility connections in manufacturing, chemical processing, and industrial facilities where the system design specifies Schedule 40 PVC throughout and operating pressures are within the 180 PSI ceiling; Schedule 40 at 6" is the correct and fully capable specification for industrial systems where the design engineer has determined that Schedule 40 wall thickness, pressure rating, and white pipe material class identification satisfy all system engineering requirements at this service diameter
• Chemical Processing & Distribution — PVC's broad resistance to acids, bases, chlorine, salts, and oxidizing agents makes Schedule 40 appropriate for 6" chemical distribution trunks and process chemical transfer mains where system operating pressures are designed within Schedule 40's 180 PSI rating; for chemical systems with higher operating pressures, surge pressure allowances, or specifications requiring Schedule 80 construction and gray identification, the 6" Schedule 80 pipe is the correct upgrade; for systems within the 180 PSI pressure envelope, Schedule 40 delivers full chemical resistance performance at a lower installed cost than Schedule 80 at this large diameter
• Municipal Water & Wastewater Treatment — NSF 61 listed for potable water contact makes this pipe appropriate for 6" distribution branch mains, chemical feed header connections, filter vessel primary inlet and outlet piping, backwash supply and discharge headers, and process water connections in water treatment plant environments where the design engineer has specified Schedule 40 PVC for large-diameter branch and primary distribution piping operating within the 180 PSI pressure rating; white Schedule 40 identification confirms the installed pipe class at every inspection and maintenance point in the distribution system
• Pool & Spa — Large Commercial & Aquatic Facilities — The 6" size is one of the most common primary recirculation main sizes at large commercial pools, natatoriums, water parks, and aquatic centers; Schedule 40 PVC is the standard specification for 6" recirculation mains at commercial aquatic facilities where pump operating pressures, system design pressures, and safety margins are within the 180 PSI Schedule 40 ceiling; PVC construction handles continuous chlorine, salt, and pool treatment chemical exposure, and Schedule 40 at 6" is fully appropriate and widely specified for commercial aquatic facility primary recirculation piping designed within standard commercial pump pressure parameters
• Commercial & Municipal Well Systems and Booster Stations — Used on 6" well pump discharge mains and booster pump station primary headers where pump operating pressures and shut-off head conditions fall within the 180 PSI Schedule 40 pressure ceiling; for well and booster station systems where shut-off head, surge pressure, or engineering safety margin requirements push the primary main design above 180 PSI, the Schedule 80 version of this pipe at 6" is the correct specification; Schedule 40 is fully appropriate and widely used for well and booster station installations designed within the Schedule 40 pressure window at the 6" service size
• HVAC & Large Commercial Mechanical Systems — Specified on 6" primary chilled water mains, condenser water primary distribution headers, and large-capacity hydronic heating and cooling supply and return connections in large commercial, campus, and industrial mechanical systems where Schedule 40 PVC is the system material standard and system pressures are within the 180 PSI rating; at the 6" size on HVAC primary distribution mains, the design engineer's pressure zone analysis determines the correct pipe schedule, and Schedule 40 is fully appropriate where operating pressure and safety margin requirements are satisfied within the 180 PSI ceiling
• Gravity Flow & Low-Pressure Large-Diameter Systems — The 6" Schedule 40 size is well suited for gravity-fed distribution systems, low-head pump applications, and large-diameter low-pressure conveyance piping in water treatment, irrigation, and industrial environments where system operating pressures are well within the Schedule 40 ceiling and the additional wall thickness of Schedule 80 is not required by the design; the 180 PSI rating provides a generous safety margin for low-pressure applications at this large service diameter while delivering the full chemical resistance, NSF certification, and specification compliance of Schedule 40 PVC construction
