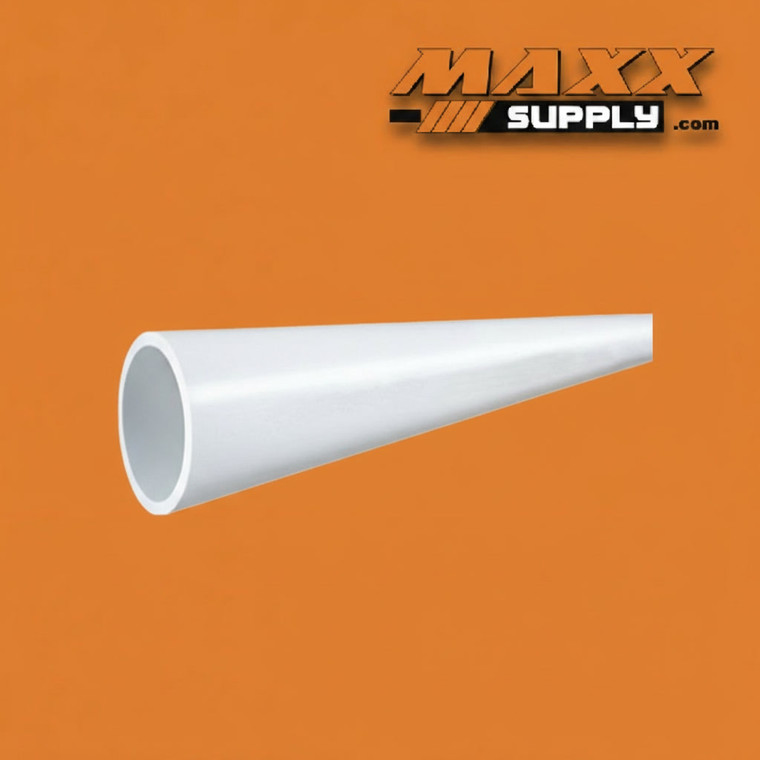

8" Schedule 40 PVC Pipe Plain End - 1-5ft

The 8" Schedule 40 White PVC Pipe (Plain End, 1-5 Foot Length) is a large-diameter thermoplastic pressure pipe manufactured to ASTM D1785, certified to NSF 61 and NSF 14, and rated at 160 PSI at 73°F — the standard-weight Schedule 40 pipe for large-diameter commercial irrigation primary mains, industrial process piping trunks, municipal water treatment plant branch piping, large-volume aquatic facility recirculation systems, and chemical distribution headers where the 160 PSI pressure rating and Schedule 40 wall thickness satisfy the system specification and Schedule 80's higher wall and pressure rating are not required by the design engineer. At the 8" size, Schedule 40 PVC occupies a specific and well-defined role in large-diameter system design — it is the correct specification where system operating pressures are comfortably within the 160 PSI ceiling, where the design engineer has not required the additional wall thickness or pressure margin of Schedule 80, and where the cost efficiency of Schedule 40 at large diameters is a meaningful project consideration. It appears on the primary mains of commercial irrigation systems operating at moderate pump pressures, the gravity-fed and low-pressure distribution headers of municipal water treatment plants, the recirculation mains of large commercial pools and aquatic centers designed within standard operating pressure parameters, and the large-diameter industrial process and utility piping of facilities where Schedule 40 is the specified system material.

The Schedule 40 wall at 8" is a 0.322" nominal wall — a structurally capable specification for the pressure and loading conditions of systems designed to operate within the 160 PSI Schedule 40 pressure ceiling at this diameter. For system designers comparing Schedule 40 and Schedule 80 at 8", the wall thickness and pressure rating context is as follows: Schedule 80 carries a 0.500" nominal wall and a 250 PSI rating at the same 8.625" outside diameter — a 55% thicker wall and a 56% higher pressure ceiling. Where the design operating pressure, surge allowance, and safety margin requirements of the system fit within Schedule 40's 160 PSI at 8", Schedule 40 is the cost-effective and fully code-compliant specification. Where the design requires the additional pressure margin, structural wall thickness, or Schedule 80 material class identification that the gray pipe delivers, Schedule 80 is the correct upgrade path — and both schedules connect into the same 8" IPS socket fittings without modification.

The white color is the standard field and facility identifier for Schedule 40 PVC pipe at every size in the commercial pipe line. At the 8" primary mainline size, white Schedule 40 identification provides immediate visual confirmation of the installed pipe class for inspectors, maintenance engineers, and facility managers — distinct from gray Schedule 80 pipe that may be present elsewhere in the same system or facility. For systems where the designer has specified Schedule 40 throughout, or where Schedule 40 and Schedule 80 are used in different sections of the same system based on pressure zone requirements, white and gray color coding eliminates material class ambiguity at every point along the installed pipeline without reference to construction documents or pipe markings that may be obscured after installation.

Plain end pipe cuts to required length with a power saw or large-diameter PVC pipe cutter and solvent cements directly into any standard IPS socket fitting without additional machining or end preparation. At the 8" diameter, joint assembly requires the most deliberate technique in the commercial PVC pipe line regardless of schedule — the large bonding surface area demands thorough, even heavy-body solvent cement coverage across the full circumference of the pipe end and the complete depth of the fitting socket, careful working time management to ensure full seating and insertion before initial cement set begins, and strict full cure time compliance before any system pressurization. Use a heavy-body solvent cement rated for Schedule 40 PVC at the 8" pipe diameter and the specific fitting combination being assembled. Follow the manufacturer's set and full cure time recommendations for the ambient temperature at time of installation — cure times extend significantly at lower temperatures and must be respected in full at 8" where partial cure under system pressure is the primary root cause of joint failure at large diameters. Deburr and bevel the cut end thoroughly before cementing to ensure consistent insertion depth and a complete circumferential bond line. The 5-foot length is the standard distribution and online-sale cut length, practical for pump station connections, valve vault installations, equipment room supply and return connections, maintenance repairs, and project purchases where full 10-foot or 20-foot production sticks are impractical to handle or ship at the 8" diameter where pipe weight, freight logistics, and job site handling requirements are at their maximum in the commercial PVC pipe line.

NSF 61 certification lists this pipe for potable water contact, and NSF 14 covers compliance with applicable plastics piping material standards — making it the correct pipe for municipal water treatment primary distribution, large commercial and municipal well system mains, and institutional plumbing applications where NSF-listed materials are required at every component of the primary distribution system.

Key Features:

• Schedule 40 white PVC — 0.322" nominal wall, 160 PSI rated at 73°F
• Manufactured to ASTM D1785 — the governing standard for Schedule 40 PVC pressure pipe
• NSF 61 certified for potable water contact; NSF 14 listed
• Plain end for solvent cement installation into socket fittings
• 8.625" OD — dimensionally compatible with all 8" PVC Schedule 40 and Schedule 80 socket fittings
• 5-foot cut length for distribution, equipment connections, and repairs
• White color — standard Schedule 40 identification in the field
• Cell classification PVC 12454 per ASTM D1784
• Cost-effective large-diameter specification for systems within the 160 PSI pressure ceiling
• Pressure derated above 73°F per standard PVC temperature-pressure curves

Specifications:

Industries & Applications:

• Irrigation & Agricultural Systems — Used on 8" primary pump station discharge mains and principal distribution trunks at large commercial irrigation systems where design operating pressures fall comfortably within Schedule 40's 160 PSI ceiling; the 8" Schedule 40 main is the correct specification on gravity-fed irrigation systems, low-head pump applications, and large-volume distribution networks designed with operating pressures that do not require the additional pressure margin or wall thickness of Schedule 80 — the 160 PSI Schedule 40 rating is fully adequate for a broad range of commercial irrigation pump station configurations, and the cost efficiency of Schedule 40 at this large diameter is a meaningful project consideration for irrigation contractors and system owners
• Industrial Process Piping — Used on 8" process water trunks, cooling tower primary supply and return mains, and large-volume plant utility connections in manufacturing, chemical processing, and industrial facilities where the system design specifies Schedule 40 PVC throughout and operating pressures are within the 160 PSI pressure ceiling; Schedule 40 at 8" is the correct and fully capable specification for industrial systems where the design engineer has determined that Schedule 40 wall thickness, pressure rating, and white pipe material class identification satisfy all system requirements
• Chemical Processing & Distribution — PVC's broad resistance to acids, bases, chlorine, salts, and oxidizing agents makes Schedule 40 pipe appropriate for 8" chemical distribution trunks and process chemical transfer mains where system operating pressures are within Schedule 40's 160 PSI rating at this diameter; for chemical systems with higher operating pressures, surge allowances, or specifications requiring Schedule 80 construction, the 8" Schedule 80 pipe is the correct upgrade; for systems within the 160 PSI pressure window, Schedule 40 provides full chemical resistance performance at a lower installed material cost
• Municipal Water & Wastewater Treatment — NSF 61 listed for potable water contact makes this pipe appropriate for 8" distribution mains, filter vessel primary inlet and outlet piping, backwash supply and discharge headers, and process water connections in water treatment plant and reclamation facility environments where the design engineer has specified Schedule 40 PVC for large-diameter branch and distribution piping operating within the 160 PSI pressure rating; white Schedule 40 identification confirms the installed pipe class at every point in the distribution system for inspectors and maintenance personnel
• Pool & Spa — Large Commercial & Aquatic Facilities — Used on 8" primary recirculation mains, pump suction and discharge connections, and equipment room supply and return piping at large commercial pools, natatoriums, water parks, and aquatic centers where the system design engineer has specified Schedule 40 for the recirculation main and system operating pressures are within the 160 PSI Schedule 40 ceiling; PVC construction handles continuous chlorine, salt, and pool treatment chemical exposure, and Schedule 40 at this size is fully appropriate for aquatic facility recirculation systems designed within standard commercial pump pressure parameters
• Commercial & Municipal Well Systems and Booster Stations — Used on 8" well pump discharge mains and booster pump station primary headers where pump operating pressures and shut-off head conditions fall within the 160 PSI Schedule 40 pressure ceiling; for well systems where pump shut-off head, surge pressure, or engineering safety margin requirements push the design above 160 PSI at 8", the Schedule 80 version of this pipe is the correct specification; Schedule 40 is fully appropriate for well and booster station installations designed within the Schedule 40 pressure window at this service size
• HVAC & Large Commercial Mechanical Systems — Specified on 8" primary chilled water mains, condenser water primary distribution headers, and large-capacity hydronic heating and cooling supply and return connections in large commercial, campus, and industrial mechanical systems where Schedule 40 PVC is the system material standard and system pressures are within the 160 PSI rating; at the 8" size on HVAC primary distribution mains, the design engineer's pressure zone analysis determines whether Schedule 40 or Schedule 80 is the correct pipe class, and Schedule 40 is the appropriate specification where operating pressures and safety margin requirements are satisfied within the 160 PSI ceiling
• Gravity Flow & Low-Pressure Large-Diameter Systems — The 8" Schedule 40 size is particularly well suited for gravity-fed distribution systems, low-head pump applications, and large-diameter low-pressure conveyance piping in water treatment, irrigation, and industrial environments where the system is not operating under significant pressure and the structural wall thickness of Schedule 80 is not required by the design; the 160 PSI rating provides an adequate safety margin for low-pressure applications at this large service diameter while delivering the full chemical resistance and NSF certification of Schedule 40 PVC construction
