90 Degree Elbow, FPT x FPT PVC Schedule 80 3" (808-030)

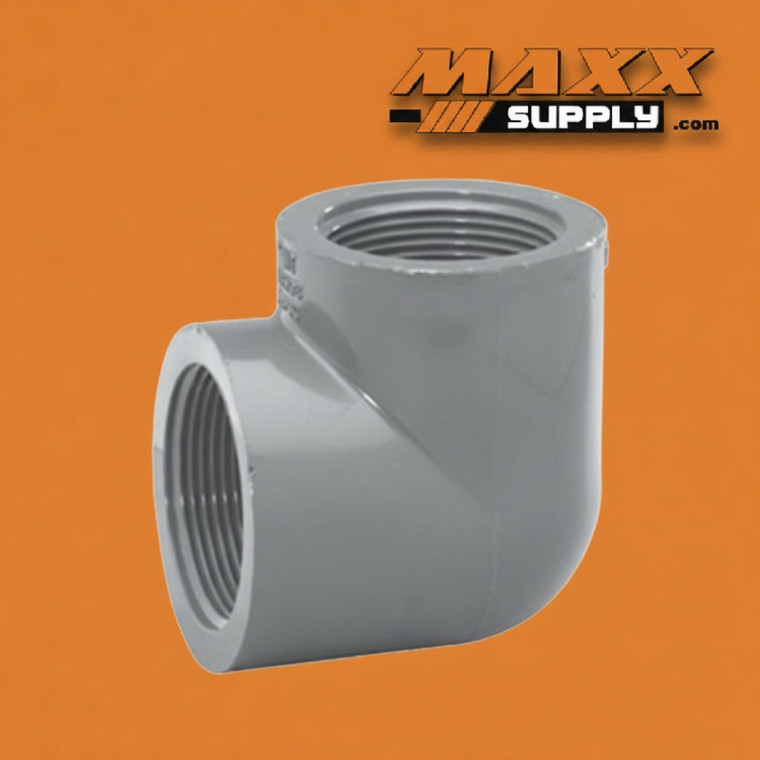

The 3" PVC Schedule 80 90-Degree Elbow (FPT x FPT) is a heavy-duty thermoplastic fitting designed to make a full right-angle directional change in fully threaded industrial PVC piping systems. With female NPT threads on both ends, this fitting accepts standard 3-inch male NPT threaded pipe, nipples, or adapters on each side — delivering the compact, right-angle routing of a 90-degree elbow while preserving the disassembly flexibility that defines a fully threaded Schedule 80 PVC assembly.

Within the threaded Schedule 80 PVC fitting catalog, the 808-030 is one of the most frequently specified directional fittings. Wherever a fully threaded industrial PVC system must change direction — at a wall penetration, around structural interference, at an equipment connection that requires a perpendicular approach, or at a routing transition between horizontal and vertical pipe runs — the 90-degree FPT elbow is the standard solution. Both ends accept male-threaded components directly: close nipples, hex nipples, threaded pipe sections, male adapters, or any other 3-inch MPT fitting can be threaded into either end without additional conversion fittings, and either connection can be broken and reassembled at any point without disturbing the other end or any other joint in the system.

The relationship between this fitting and the previously described 819-030 (3" Schedule 80 FPT x FPT 45-degree elbow) follows the same logic established between their slip-socket equivalents — the 806-060 (6" Schedule 80 90-degree slip elbow) and 817-060 (6" Schedule 80 45-degree slip elbow). The 90-degree FPT elbow makes the most compact right-angle directional change available in the threaded PVC line, consuming the minimum linear space at the routing transition. The 45-degree FPT elbow provides a shallower, more hydraulically efficient directional change at the cost of additional linear run. In fully threaded industrial systems where routing is constrained by equipment footprints, facility structures, or prefabricated skid dimensions, the 90-degree elbow is frequently the only practical option — there is simply not enough room for the longer sweep of a 45-degree approach, and the compact 90-degree turn fits the spatial envelope the system requires.

The FPT x FPT connection type is the feature that places this elbow in the threaded system context rather than a mixed slip/threaded assembly. Both ends are threaded — not one slip and one threaded — which means this elbow is specified when the entire assembly at the elbow, including both approach and departure pipe connections, must remain accessible for disassembly. This is the characteristic of a fully threaded system, and the all-FPT elbow is consistent with that design intent throughout the routing transition it serves. Thread sealant — PTFE tape or pipe thread compound — should be applied to both male-threaded components engaging the FPT ends prior to assembly per standard NPT practice.

As established consistently across the threaded Schedule 80 fittings described in this catalog, Schedule 80 PVC provides the wall thickness that makes fully threaded industrial PVC systems viable in sustained-pressure and chemically demanding service. The additional material depth at each FPT thread engagement supports deeper thread form contact, distributes the thread load across more material, and reduces the risk of thread failure under the combined stresses of operating pressure, thermal cycling, and the torque applied during assembly and disassembly — all of which concentrate at the thread engagement of a directional fitting more acutely than at a straight coupling or adapter. Manufactured to ASTM D2467 standards and compatible with standard NPT threaded fittings throughout the 3-inch nominal pipe size range.

Specifications:

Industries & Applications:

• Chemical Processing & Handling — The primary application for a 3-inch Schedule 80 FPT 90-degree elbow; used in fully threaded chemical conveyance and distribution lines where routing must change direction at a wall penetration, equipment connection, or structural boundary — the all-FPT construction maintaining the disassembly flexibility of the threaded assembly at the elbow, allowing the approach and departure pipe sections to be independently unthreaded without disturbing the elbow body or any other fitting in the run
• Industrial Process Piping — Constrained Layouts — Specified in process plant pipe racks, equipment skids, and prefabricated mechanical assemblies where routing constraints — equipment footprints, structural members, skid frame dimensions — require a full 90-degree directional change within a tight spatial envelope, and where the linear space required for a 45-degree pair approach is not available in the layout
• Water & Wastewater Treatment — Applied in treatment plant process piping and pump station assemblies where 3-inch Schedule 80 threaded systems require right-angle routing transitions at equipment connections, pump vault walls, structural penetrations, and mechanical room boundaries — the FPT x FPT construction preserving the fully threaded character of the assembly through the directional change
• Fully Threaded Industrial Assemblies — Regulatory Compliance — Incorporated in industrial process assemblies governed by facility or regulatory standards requiring fully threaded, fully inspectable PVC piping at designated system points — where every fitting in the assembly, including directional fittings, must present threaded connections on all ports for compliance with inspection and serviceability requirements
• Pump Connections & Mechanical Equipment — Used in pump suction and discharge piping where a 3-inch threaded 90-degree elbow provides a right-angle directional transition at the pump flange adapter, equipment inlet, or connection stub — allowing the pump or equipment to be positioned perpendicular to the pipe run and connected through a threaded assembly that can be broken for service without cutting any fitting from the system
• Irrigation & Agricultural Chemical Systems — Specified in 3-inch Schedule 80 irrigation and chemical injection assemblies where threaded piping must turn 90 degrees at a riser, equipment connection, or structural boundary — the FPT x FPT elbow maintaining the fully threaded character of the chemical injection or pump discharge assembly at the directional transition point
