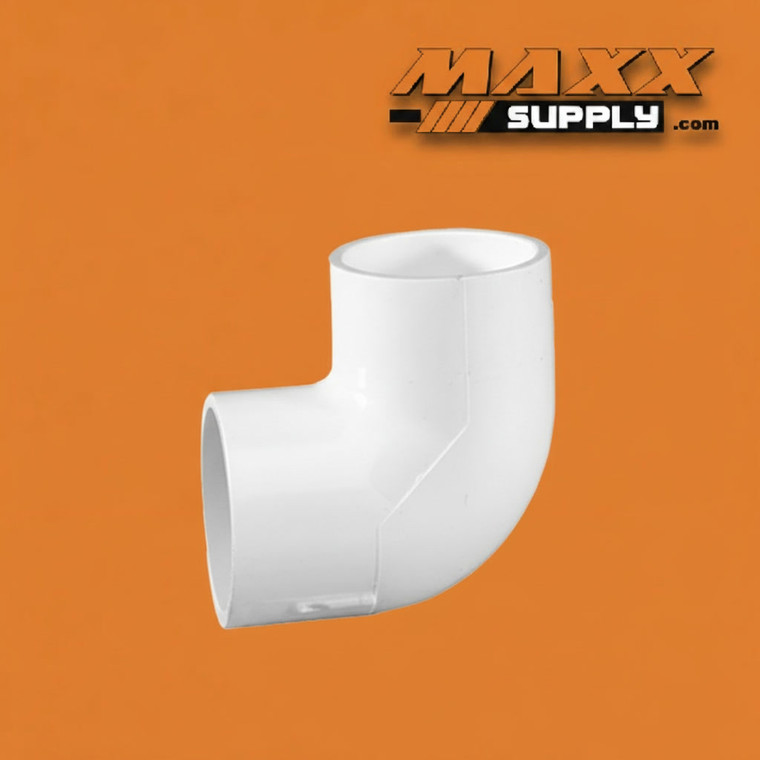

90 Degree Elbow, Slip x Slip 12" (C606-120)

The 12" PVC Schedule 40 90 Degree Slip x Slip Elbow (Part No. C606-120) is a large-diameter directional fitting that delivers a full 90-degree change in pipe direction — the standard right-angle turn used across municipal transmission mains, industrial process headers, large-scale irrigation systems, and commercial piping installations wherever a mainline must change direction perpendicular to its original travel path. Both ends are slip (socket) configuration, accepting 12-inch PVC pipe or spigot fittings via solvent-weld connection for a permanent, pressure-rated joint on each side using standard PVC cement and primer.

At 12-inch diameter, a 90-degree elbow is a significant structural and hydraulic fitting — one that anchors the directional geometry of a large-diameter system at its most consequential turns. The forces acting on a 90-degree elbow in a pressurized 12-inch system are substantial: internal pressure generates a thrust force at the bend that must be managed through thrust blocks, restrained joint systems, or properly designed pipe supports, and the fitting itself must be capable of sustaining both the operating pressure of the system and the mechanical loads imposed by the pipe runs on either side. Schedule 40 PVC construction at this diameter, manufactured to ASTM D2466 standards from virgin PVC compound, provides the structural integrity and pressure capacity appropriate for the broad range of water, irrigation, and industrial applications where this fitting is specified.

The 90-degree elbow is the correct directional fitting when the system layout demands a sharp, perpendicular direction change — turning a mainline along a building wall, transitioning from a horizontal to a vertical run, navigating around a structural obstacle, or making a precise right-angle turn in a pump station vault or mechanical equipment room. Where a more gradual directional change is hydraulically preferable — and where the system layout permits it — a pair of 45-degree elbows with a connecting spool piece provides lower head loss and reduced turbulence through the directional transition. But where space constraints, layout geometry, or installation economics favor a single-fitting 90-degree turn, this elbow is the direct, standard solution for a 12-inch Schedule 40 system.

This Charlotte Pipe SKU — identified by the C606 part number prefix — is a nationally distributed, contractor-recognized fitting stocked consistently across supply chains serving municipal water utilities, industrial contractors, and large-scale irrigation installers. At 12-inch diameter, where procurement lead times and local stocking levels can be a genuine constraint on project scheduling, sourcing from a reliable distributor with confirmed availability is a meaningful consideration for contractors and project managers working to installation deadlines on large-diameter system builds.

The hydraulic behavior of a 90-degree elbow at large diameters warrants attention at the design stage. The sharp direction change generates turbulence and a pressure drop that is significantly higher than the equivalent pipe length of a straight run — at 12-inch diameter, the equivalent pipe length of a standard 90-degree elbow can exceed 30 feet of straight pipe in head loss contribution, depending on the fitting's radius and the flow velocity in the system. In pump-fed systems where head loss budgeting is a factor in pump selection and operating energy cost, the cumulative contribution of 90-degree elbows across the system is a non-trivial design consideration, and specifying 45-degree elbow combinations wherever the layout permits can meaningfully reduce total system head loss and lifetime operating cost.

Manufactured from virgin PVC compound to ASTM D2466 standards, this elbow delivers the corrosion resistance, chemical compatibility, and long-term service life that make Schedule 40 PVC the standard material across water, wastewater, irrigation, and industrial piping environments. NSF/ANSI 61 certification confirms suitability for potable water contact, extending its application range to municipal water distribution, water treatment infrastructure, and food-adjacent process piping in addition to its broad industrial and agricultural markets.

Specifications:

Note: Pressure ratings decrease with increasing pipe diameter. At 12-inch diameter, internal pressure thrust forces at the elbow bend are substantial — consult manufacturer-published pressure-temperature rating tables and confirm thrust restraint requirements with a qualified engineer before system design and installation.

Industries & Applications:

• Municipal Water Distribution — The primary application for a 12-inch 90-degree elbow; used at directional changes on large-diameter transmission and distribution mains, at connections between buried and above-grade pipe runs, at pump station discharge headers, and at vault and chamber configurations where the system layout requires a right-angle turn on the mainline
• Industrial Process Piping — Provides 90-degree directional changes in 12-inch supply headers, process mains, and large-diameter equipment feed lines in chemical, pharmaceutical, manufacturing, and power generation facilities where the system layout demands perpendicular turns in the piping run within mechanical rooms, pipe galleries, or outdoor process areas
• Pump Station & Mechanical Room Piping — One of the most frequent applications for large-diameter elbows; used at discharge header turns, suction line direction changes, and mainline routing transitions within pump station structures where the structured layout of equipment rooms creates multiple perpendicular direction changes in the large-diameter piping runs
• Commercial & Agricultural Irrigation — Turns 12-inch irrigation mainlines at field boundaries, around structures, at pump station discharge runs, and at zone distribution manifold entries in large-scale commercial, turf, golf course, and agricultural irrigation systems where mainline routing requires right-angle turns across the site layout
• Water Treatment & Filtration Plants — Integrates into large-diameter process piping headers and treatment train distribution mains at 90-degree direction changes within plant buildings, pipe galleries, and outdoor process areas where the structured layout of treatment equipment creates perpendicular turns in the primary piping routes
• Wastewater Force Mains — Used at direction changes on large-diameter pressurized sewer force mains at pump station discharge points, at transitions between buried and above-grade pipe sections, and at routing changes required to navigate around structures or underground utilities in the force main alignment
• Stormwater & Large-Diameter Drainage — Provides direction changes in large-diameter stormwater conveyance and detention system piping at structure connections, outlet transitions, and routing changes where gravity-flow or low-pressure conditions allow the use of Schedule 40 PVC at 12-inch diameter
• Mining & Heavy Industrial Water Supply — Delivers reliable 90-degree directional turns in large-diameter site water distribution infrastructure serving process water, dust suppression, and equipment cooling circuits where mainline routing across complex industrial sites requires multiple perpendicular direction changes in the primary distribution runs
