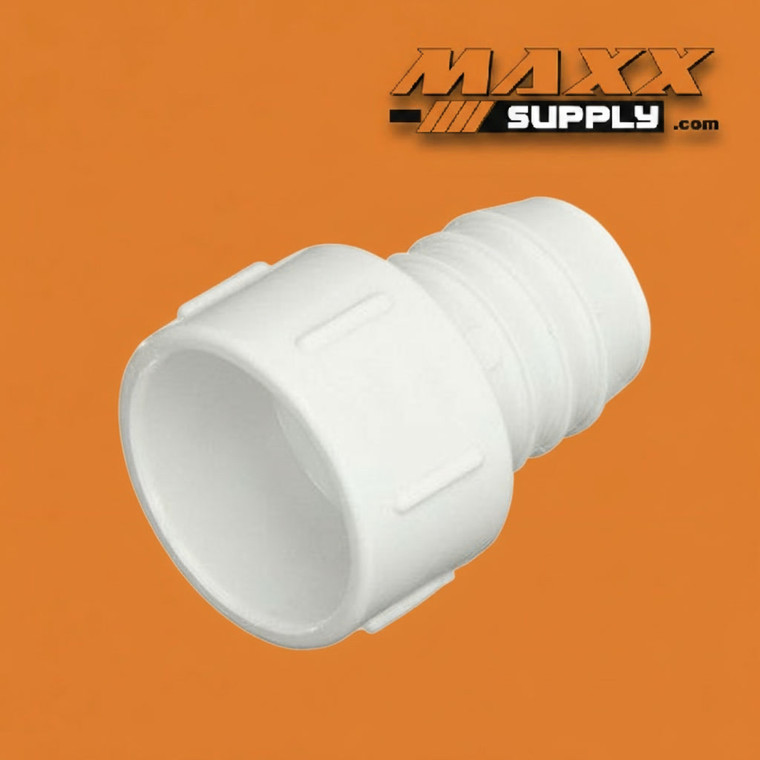

Adapter, Insert x Slip PVC Schedule 40 1" (474-010)

This 1" Schedule 40 PVC Insert x Slip Adapter (474-010) provides a direct material transition from flexible polyethylene irrigation pipe or insert-compatible flexible tubing to a rigid Schedule 40 PVC socket pipe assembly, combining both connection methods in a single compact fitting body. Constructed in white Schedule 40 PVC, it is the highest-demand entry in the 474 series — appearing at virtually every residential and light commercial irrigation system entry point where a 1" poly mainline must connect directly to a PVC socket valve box, manifold header, or distribution assembly, eliminating the need for a separate insert-to-thread nipple plus a socket adapter at the transition point.

The insert (barbed) end is sized to insert fully into the bore of compatible 1" flexible polyethylene irrigation pipe, corrugated drain tubing, or other insert-compatible flexible pipe, with the pipe interior sliding over the barbed profile for a mechanically secure connection. A stainless steel or galvanized hose clamp applied over the pipe exterior at the barb location provides the clamping force needed to maintain a pressure-tight seal — a separate clamp is required and not included with the fitting. The slip socket end accepts 1" PVC pipe for a permanent solvent-cement bond on the rigid PVC side, completing the flexible-to-rigid material transition in a single fitting body. This Insert x Slip configuration is the standard approach to transitioning from 1" flexible insert-type irrigation poly pipe to Schedule 40 PVC socket assemblies — distinct from the Female Adapter (435 series, Slip x FPT) and Male Adapter (436 series, MPT x Slip), which transition between PVC socket and threaded connections within the same PVC pipe material family, and from the 474-015 (1-1/2" Insert x Slip), which serves larger-diameter poly mainline assemblies. At 1", this adapter is most commonly specified at the entry point of Schedule 40 PVC valve boxes, manifold headers, and distribution assemblies in residential landscape irrigation, light commercial irrigation, and agricultural micro-irrigation systems where 1" poly mainline is the dominant distribution pipe material and Schedule 40 PVC is used throughout the downstream valve and manifold assembly.

Rated to approximately 450 psi at 73°F at the slip socket end, this adapter is suited for standard residential and light commercial irrigation and water distribution service. The assembled pressure rating at the insert end depends on the insert pipe specification, hose clamp type, and installation torque — confirm the system working pressure against the assembled connection rating for the specific insert pipe and clamp used. Its PVC composition provides excellent resistance to corrosion, scale, chlorinated water, and a broad range of chemical exposures. NSF/ANSI 61 listing confirms suitability for potable water contact.

To install the insert end, push the flexible pipe fully over the barbed profile until the pipe face seats against the fitting shoulder — full barb engagement is essential for a reliable pressure seal. Apply a stainless steel hose clamp over the pipe exterior directly over the barbed section and tighten to manufacturer-recommended torque. Apply solvent cement to the 1" pipe end and fitting socket per ASTM D2564 procedures on the slip end, inserting fully and maintaining a quarter-turn during assembly. Allow adequate cure time on the cemented joint before pressurizing the system. Inspect the insert end clamp for seating and uniform compression before pressurizing.

Specifications:

Industries & Applications:

• Irrigation & Water Distribution — Transitions 1" flexible polyethylene mainline irrigation pipe to Schedule 40 PVC socket valve boxes, manifold headers, and distribution assemblies at pump station entries, zone valve station inlets, and lateral distribution manifold connection points in residential and light commercial irrigation systems — the dominant application for this fitting at the most widely specified all-threaded and all-socket irrigation assembly diameter; virtually every 1" poly mainline irrigation system requires this adapter at each valve box entry point
• Landscape Irrigation — Provides the standard flexible-to-rigid transition at valve box entry points, manifold inlets, and distribution header connections in residential and commercial landscape irrigation systems where 1" poly mainline is the primary distribution pipe material and Schedule 40 PVC is used throughout the valve box and manifold assembly — the highest-demand application context for the 474 series
• Commercial Plumbing — Connects flexible poly or insert-compatible service lines to 1" Schedule 40 PVC socket distribution assemblies, valve body socket inlets, and riser connections in commercial building systems where a flexible supply line must terminate at a rigid PVC socket fitting without an intermediate all-threaded transition assembly
• Agricultural Micro-Irrigation — Provides the flexible-to-rigid mainline transition at 1" drip emitter manifold inlets, filter housing socket connections, and pressure regulator socket entries in agricultural micro-irrigation systems where 1" poly mainline distributes from the pump station to individual manifold assemblies built entirely in Schedule 40 PVC socket construction
• Water Treatment & Aquaculture — Used at flexible supply line entry points on filter manifold inlet assemblies, tank fill connections, and recirculating system flexible-to-rigid transition points where a 1" flexible poly or insert-compatible feed line must connect to a PVC socket header assembly with NSF/ANSI 61 compliance required throughout
• Industrial Process Piping — Transitions flexible insert-compatible tubing to rigid Schedule 40 PVC socket process water assemblies at pump connections, equipment feed entry points, and service manifold inlets in light industrial facilities where a 1" flexible supply line must connect to a PVC socket header assembly without a multi-piece transition
