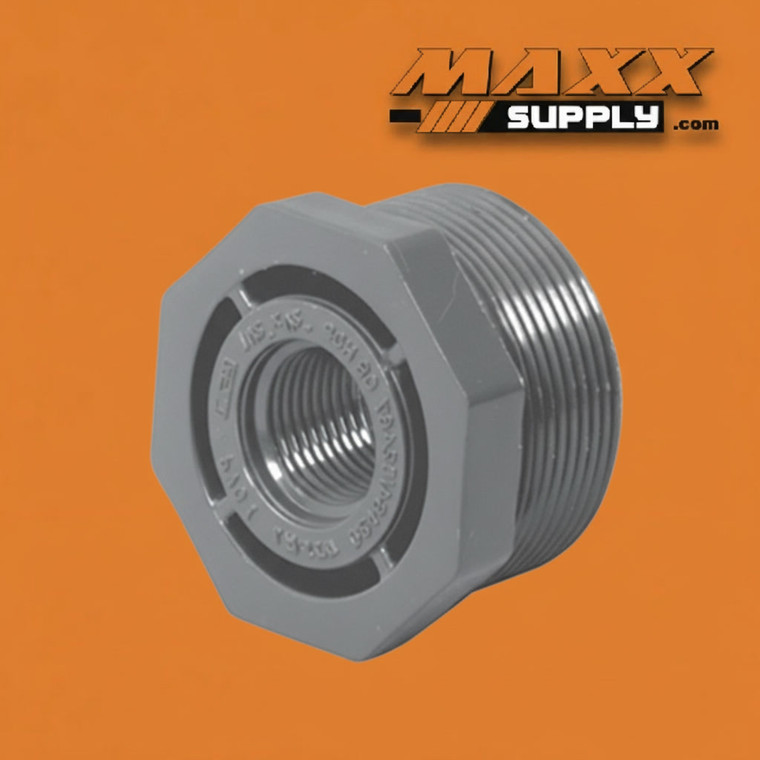

Bushing, MPT x FPT (Flush Style) PVC Schedule 80 2" x 1-1/2" (839-251)

The 839-251 is a PVC Schedule 80 flush bushing that reduces a 2" female-threaded port or fitting down to a 1-1/2" male-threaded connection using an all-threaded MPT × FPT configuration. The 2" male NPT threads on the large end engage an existing 2" FPT fitting, valve body, tank outlet, or threaded port, while the 1-1/2" female NPT threads on the small end accept any standard 1-1/2" male-threaded fitting, nipple, or valve.

The 2" to 1-1/2" transition is the narrowest diameter reduction in the 2"-large-end 839 flush bushing series — the outlet is the closest in size to the inlet of any fitting in the group. Applications calling for this specific transition are typically those where a 2" fitting or equipment port needs to connect to an existing 1-1/2" system, or where a modest flow reduction at a branch tie-in is required without the more significant cross-sectional area changes introduced by the larger reductions available in the series. The close size relationship between inlet and outlet produces minimal velocity increase and the least turbulent flow transition of any fitting in the 2"-large-end 839 group, making the 839-251 the right choice in circuits where preserving flow characteristics is a primary design consideration.

As with every 839-series fitting, the flush style is the defining feature that separates this product from the 838 hex bushing series. The large end carries no raised hexagonal shoulder — it is fully threaded from face to face, allowing the fitting to thread completely into a 2" FPT socket and sit flush or recessed below the socket face without any protruding profile. In panel-mounted equipment, dense threaded manifold assemblies, enclosed skid packages, or any piping layout where clearance above the fitting socket face is restricted, this low-profile geometry resolves interference problems that a hex-shoulder bushing cannot.

Because the flush large end offers no wrench purchase surface, installation requires a strap wrench or chain wrench. PTFE thread tape or an approved pipe thread sealant should be applied to all male threads before assembly. Engagement proceeds hand-tight, followed by one to two additional turns with the strap wrench to achieve a reliable, leak-free seat. The torque tolerance of threaded PVC is meaningfully lower than metal pipe of comparable size — over-tightening remains the primary installation failure mode across all threaded PVC fittings, and metal pipe wrenches applied directly to the fitting body should always be avoided regardless of fitting size.

Manufactured from rigid PVC Type I, Grade I (Cell Classification 12454) to ASTM D2464, the 839-251 provides broad corrosion resistance across acids, bases, salts, oxidizing agents, and a wide range of industrial process fluids. NSF/ANSI 61 certification confirms suitability for potable water contact. The 1-1/2" FPT small end governs the pressure rating for the assembled fitting at approximately 230 PSI @ 73°F — the lowest governing-end rating among all five 2"-large-end 839 SKUs. Specifiers should note this directly: the governing pressure in a flush bushing assembly decreases as the outlet size approaches the inlet size, not as the outlet size decreases. The 839-251's 1-1/2" outlet is the closest to 2" in the series and therefore carries the lowest rated working pressure of the group. Systems requiring higher pressure performance at a 2"-to-close-step reduction should evaluate whether the application demands a full-bore connection instead.

Specifications:

Industries & Applications:

• Industrial & Chemical Processing — Half-step reductions from 2" valve ports, tank outlets, or manifold connections to 1-1/2" branch lines or equipment inlets in corrosive service environments; the close size match minimizes velocity change and turbulence through the fitting in flow-sensitive process circuits
• Pump & Valve Bodies — Adapting 2" NPT pump suction or discharge ports to 1-1/2" downstream piping in a single compact fitting; the near-bore match supports efficient hydraulic transition with minimal pressure drop at the connection point
• Water Treatment & Purification — NSF 61 listing supports potable water service; 2" to 1-1/2" transitions are common at filter housing outlets, treatment vessel ports, and distribution manifold branches where close-coupled size matching maintains system flow balance
• Chemical Metering & Dosing Systems — Reducing 2" tank or pump ports to 1-1/2" distribution headers in skid-assembled dosing systems; flush profile accommodates enclosed panel or cabinet installations where hex shoulder clearance is unavailable
• Irrigation & Agricultural Infrastructure — Half-step reductions at 2" mainline valve bodies or filter housings connecting to 1-1/2" zone or lateral piping in large-format irrigation systems where preserving flow capacity from main to branch is a design priority
• Commercial & Mechanical Plumbing — Transitioning 2" threaded fitting ports to 1-1/2" service connections in mechanical rooms, equipment pads, and utility assemblies; close size match supports even flow distribution across multi-branch manifold systems
• OEM & Skid-Mounted Equipment Fabrication — Low-profile half-step reduction for factory-built assemblies where a 2" equipment port must connect to 1-1/2" field piping without a protruding hex shoulder creating clearance conflicts within the enclosure or equipment package
