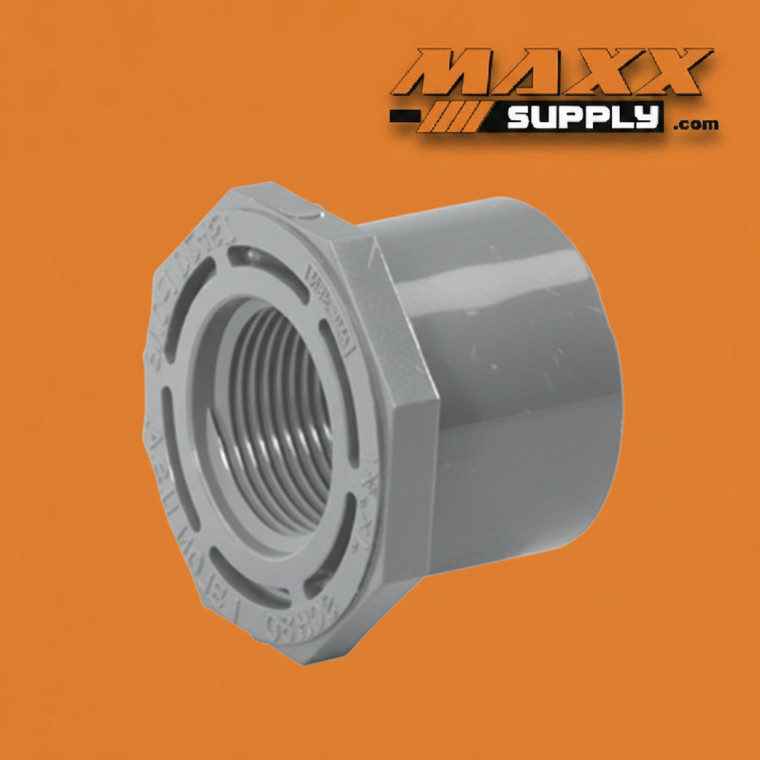

Bushing, Spigot x FPT (Flush Style) PVC Schedule 80 4" x 1-1/2" (838-419)

The 4" x 1-1/2" PVC Schedule 80 Flush Style Bushing (Spigot x FPT) is a specialty inline reducer that combines two distinct functional advantages in a single fitting body: the flush style spigot geometry that eliminates the internal shoulder at the receiving fitting socket, and a female NPT threaded outlet on the small end that provides a serviceable, disassemblable connection to the downstream fitting or component. The 4-inch spigot end seats flush with the face of the receiving 4-inch Schedule 80 slip socket fitting — producing a smooth internal bore transition at the reduction point with no protruding step or shoulder — while the 1-1/2-inch FPT outlet accepts any standard 1-1/2-inch male NPT fitting for a threaded connection that can be assembled, disassembled, and reconfigured without disturbing the cemented spigot joint at the 4-inch end.

This fitting occupies a specific and deliberate position in the Schedule 80 bushing catalog — one that the 837-series (Spigot x Slip flush style) does not fill. The 837-529 described earlier in this catalog provides a flush spigot-to-slip transition, producing a permanent solvent-weld joint on both ends. The 838-419 replaces the slip outlet with a female NPT thread, fundamentally changing the downstream connection from permanent to serviceable. The practical consequence is significant: where the 837-series bushing commits the downstream pipe run to a permanent solvent-weld joint at the outlet, the 838-series allows the downstream fitting — a valve, an injector, a gauge, a union, a nipple, or any other 1-1/2-inch MPT component — to be threaded in, adjusted, and removed at any point in the system's service life without cutting or disturbing the cemented 4-inch spigot joint in the upstream fitting socket.

The combination of flush style spigot and FPT outlet is most naturally specified in two overlapping application contexts. The first is systems where internal bore smoothness at the reduction point matters — chemical process lines, high-purity systems, pharmaceutical and semiconductor process piping, or any application where an internal shoulder at the bushing socket face would create a turbulence zone, a contamination harbor, or a solids accumulation point that compromises system performance or cleanliness. The second is systems where the downstream component at the 1-1/2-inch connection point requires periodic removal for service, calibration, replacement, or inspection — chemical injectors, pressure gauges, sample valves, instrumentation ports, and similar serviceable devices that are installed in a threaded configuration precisely because they will eventually need to come out. The 838-419 serves both contexts simultaneously, making it the correct specification wherever both bore smoothness at the socket face and downstream serviceability at the outlet are requirements rather than preferences.

At the 4" to 1-1/2" size differential — a two-and-a-half nominal size step-down — the fitting serves branch connections and service tap applications where the downstream function operates at a substantially lower flow volume than the primary 4-inch system. This is characteristic of instrumentation taps, chemical injection ports, sample connections, drain outlets, and small-bore supply lines that depart from a 4-inch process or distribution header at a designed access point. Schedule 80 PVC provides the elevated wall thickness required for both the spigot end — where the flush seating geometry is machined or molded to precise tolerances — and the FPT outlet, where the additional material depth behind the thread form supports deeper thread engagement and improved resistance to thread failure under sustained pressure and repeated assembly cycles. Manufactured to ASTM D2467 standards and compatible with Schedule 80 PVC fittings on the spigot end and standard NPT threaded fittings on the 1-1/2-inch outlet.

Specifications:

Industries & Applications:

• Chemical Processing & High-Purity Systems — The primary application for the flush style spigot x FPT configuration; used in chemical process headers and high-purity distribution lines where an internal shoulder at the 4-inch fitting socket would compromise flow profile, cleanliness, or chemical integrity — and where the 1-1/2-inch FPT outlet provides a serviceable threaded connection for a chemical injector, dosing port, sample valve, or inline instrument that will require periodic removal and replacement over the system's service life
• Pharmaceutical & Semiconductor Manufacturing — Specified in cleanroom and controlled-environment process piping where flush style bore geometry at every fitting junction is a validation and qualification requirement — ultrapure water distribution, chemical delivery systems, and process fluid lines where both internal smoothness and downstream component serviceability are specified simultaneously, and the 838-series provides the only standard PVC bushing configuration that satisfies both requirements in a single fitting body
• Process Instrumentation & Sampling Connections — Used in 4-inch Schedule 80 process headers where a 1-1/2-inch FPT outlet provides a dedicated tap point for a pressure gauge, temperature sensor, flow meter port, or manual sample valve — the flush style spigot ensuring a smooth bore at the receiving socket face while the FPT outlet allows the instrument or valve to be removed for calibration, replacement, or inspection without disturbing the cemented 4-inch fitting in the header
• Water & Wastewater Treatment — Applied in treatment plant process piping where 4-inch Schedule 80 headers require a 1-1/2-inch threaded tap for chemical injection, pH probe supply, turbidity sensor ports, or small-volume dosing connections — the flush style geometry preventing chemical or biological accumulation at the socket face while the FPT outlet allows dosing equipment to be serviced or upgraded without cutting the primary process line
• Industrial Drain & Vent Connections on Process Headers — Incorporated in 4-inch industrial process piping at designed drain or vent points where a 1-1/2-inch FPT outlet provides a removable drain plug, low-point cleanout access, or air release connection — the flush style spigot preventing solids accumulation at the socket face in headers conveying process fluids containing suspended material, while the threaded outlet allows seasonal or maintenance-cycle drain valve installation and removal
• Pump & Equipment Bypass Connections — Specified at pump discharge fitting sockets and equipment connection points in 4-inch Schedule 80 systems where a 1-1/2-inch FPT outlet provides a recirculation return, pressure relief tap, or bypass connection — the flush style bore minimizing turbulence at the connection point in the immediate post-pump flow zone while the FPT outlet preserves the ability to reconfigure the bypass circuit without cutting into the primary discharge fitting
