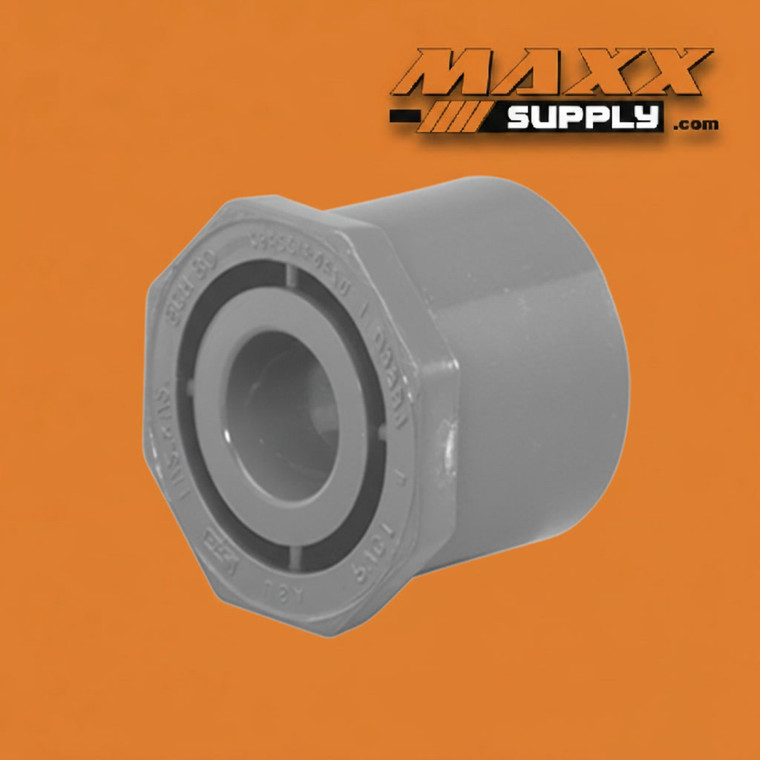

Bushing, Spigot x Slip (Flush Style) PVC Schedule 80 10" x 6" (837-626)

The 10" x 6" PVC Schedule 80 Flush Style Bushing (Part No. 837-626) is a heavy-duty, large-diameter inline reduction fitting that steps a 10-inch piping system down to a 6-inch downstream connection — delivering the increased wall thickness, higher pressure capacity, and superior mechanical resilience of Schedule 80 construction in a flush-profile design engineered to seat cleanly and completely within the receiving socket without a protruding collar or raised shoulder. The spigot (male) end inserts directly into a standard 10-inch Schedule 80 socket fitting, while the slip (female socket) end accepts 6-inch PVC pipe or a spigot fitting via solvent-weld connection, forming a permanent, pressure-rated joint on both ends using standard PVC cement and primer.

The flush style designation defines the critical installation advantage of this fitting over a standard hex bushing or shoulder-collar reducer bushing. In a standard bushing, a hex head or raised flange sits proud of the receiving fitting face — providing a mechanical grip point during installation but projecting beyond the socket opening in the finished assembly. The flush style bushing eliminates this protrusion entirely, seating fully within the socket depth so that the bushing face is flush with the fitting socket end. In confined mechanical rooms, pump station vaults, tight manifold assemblies, and equipment enclosures where clearance between adjacent fittings or structural surfaces is measured in fractions of an inch, this profile difference is not aesthetic — it is a functional installation requirement that determines whether the fitting can be used at all in the available space.

The 10-inch to 6-inch reduction — approximately a 1.67:1 ratio — occupies a meaningful position in the Schedule 80 bushing range. It is more aggressive than the near-equal 10-to-8-inch step-down, reducing the pipe cross-sectional area by approximately 64 percent and increasing downstream flow velocity by roughly 2.8 times relative to the upstream 10-inch run. This velocity increase and its associated downstream pressure drop must be factored into component sizing, valve selection, and hydraulic calculations for the 6-inch continuation — and in systems where this velocity change is a design constraint, staged reduction through an intermediate bushing size may be the preferred approach. Where layout economics, space constraints, or installation simplicity favor a direct single-step reduction from 10 to 6 inches, this bushing delivers that transition in a single fitting body with a flush profile that keeps the assembly clean and compact.

Selecting Schedule 80 for this fitting reflects the engineering judgment that the service environment — whether defined by elevated operating pressure, chemical fluid compatibility requirements, mechanical loading at the reduction point, or a system-wide Schedule 80 specification in a high-criticality installation — exceeds the reliable performance envelope of Schedule 40 at this diameter. The thicker PVC wall of Schedule 80 delivers a higher pressure rating than Schedule 40 at equivalent diameters, greater resistance to impact and external mechanical stress, and improved structural integrity under thermal cycling and continuous-duty industrial service conditions.

Manufactured from virgin PVC compound to ASTM D2467 standards and gray in color per Schedule 80 convention, this bushing is NSF/ANSI 61 certified for potable water contact — qualifying it for municipal water distribution, water treatment infrastructure, and food-adjacent process piping in addition to its core industrial, chemical, and process piping applications. Compatible with IPS-standard PVC solvent cements and primers for a code-compliant, permanent installation.

Specifications:

Note: Schedule 80 pressure ratings exceed Schedule 40 at equivalent diameters due to increased wall thickness. The 10-to-6-inch reduction produces a significant increase in downstream flow velocity — consult manufacturer-published pressure-temperature rating tables and confirm hydraulic implications with a qualified engineer before system design and commissioning.

Industries & Applications:

• Industrial Process Piping — The core Schedule 80 application for this fitting; used to step down a 10-inch supply header or process main to a 6-inch sub-process line, equipment feed connection, or parallel circuit branch in chemical plants, refineries, pharmaceutical facilities, and heavy manufacturing environments where operating pressures, chemical exposure, or system criticality demand Schedule 80 construction at every reduction fitting in the system
• Confined Equipment Rooms & Pump Stations — The flush style profile is the specification driver in pump station vaults, mechanical rooms, utility tunnels, and equipment enclosures where clearance between adjacent fittings, structural walls, or equipment housings is restricted and a standard protruding bushing collar would create interference, installation complications, or code-compliance issues in the finished assembly
• Chemical Handling Systems — Schedule 80's increased wall thickness and structural integrity make this bushing well-suited to service where a 10-inch chemical supply or process main must transition inline to a 6-inch downstream connection; the flush profile keeps the transition compact in the close-tolerance piping arrangements common to chemical dosing and process manifold configurations; always verify chemical compatibility with the specific fluid and concentration before specification
• Municipal Water Distribution — Specified in high-pressure distribution zones, pump station discharge headers, and engineered large-diameter water main configurations where the system designer requires Schedule 80 pressure margin at the reduction point, and where the flush bushing profile accommodates constrained vault or chamber installation geometries that preclude the use of a standard protruding bushing
• Water Treatment & Filtration Plants — Integrates into 10-inch process piping headers and treatment train distribution manifolds where an inline transition to a 6-inch downstream connection is required in plant environments where Schedule 80 is specified system-wide for pressure capacity, chemical resistance, or long-term reliability in continuous-duty treatment service
• Industrial Cooling Water Systems — Provides an inline 10-to-6-inch reduction in large-diameter recirculating cooling circuits in power generation, large-scale HVAC, and heavy manufacturing facilities where Schedule 80 construction and flush-profile installation geometry are both required at the header-to-branch transition point
• Wastewater Force Mains — Used in pressurized large-diameter sewer conveyance systems where pump discharge pressure requires Schedule 80 at pipe size transitions, and where the flush bushing profile accommodates the tight fitting clearances and compact layout requirements common to pump station wet well and discharge piping configurations
• High-Pressure Irrigation Pump Stations — Specified on pump discharge manifolds and pressurized mainline runs in commercial and large-scale agricultural irrigation systems where discharge pressures at 10-inch diameter exceed Schedule 40 design limits and where manifold layout constraints demand the flush profile over a standard hex or shoulder-style bushing at the reduction point
