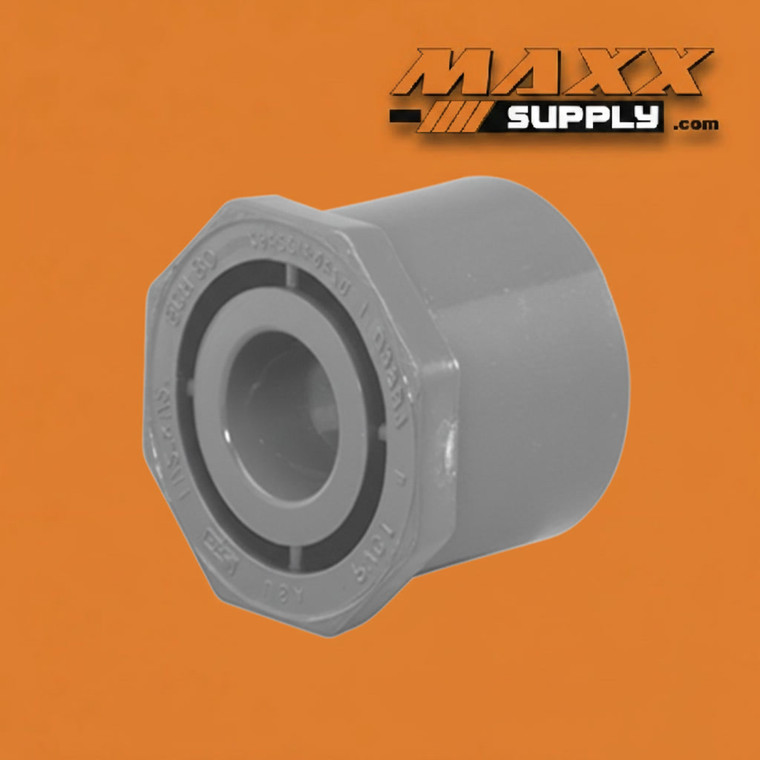

Bushing, Spigot x Slip (Flush Style) PVC Schedule 80 10" x 8" (837-628)

Blue Monster 76037 1-Step PVC Cement Clear (32OZ)

The 10" x 8" PVC Schedule 80 Flush Style Bushing (Part No. 837-628) is a heavy-duty, large-diameter inline reduction fitting that steps a 10-inch piping system down to an 8-inch downstream connection — delivering the increased wall thickness, higher pressure capacity, and superior mechanical resilience of Schedule 80 construction in a flush-profile design that sits cleanly inside the receiving socket without protruding beyond the fitting face. The spigot (male) end inserts directly into a standard 10-inch Schedule 80 socket fitting, while the slip (female socket) end accepts an 8-inch PVC pipe or spigot fitting via solvent-weld connection on both ends.

The flush style designation is what distinguishes this bushing from a standard hex bushing or a reducer bushing with an extended shoulder. Where a standard bushing features a hex head or raised flange that sits proud of the receiving fitting face, the flush style bushing is designed to seat fully within the socket depth of the receiving fitting — presenting a clean, flat face at the socket opening rather than a protruding collar. This profile is specifically advantageous in confined installations, tight manifold assemblies, and equipment room piping where clearance between adjacent fittings or structural surfaces is limited, and where the extended geometry of a standard bushing would interfere with neighboring components or create an unacceptable protrusion in the piping layout.

At the 10-inch to 8-inch size pairing, the reduction ratio is relatively modest — approximately 1.25:1 — but the hydraulic and structural significance of this transition is meaningful in large-diameter Schedule 80 systems. The step-down from 10 inches to 8 inches increases flow velocity by approximately 56 percent as the cross-sectional area decreases, which must be factored into downstream component sizing, valve selection, and pressure drop calculations for the 8-inch branch or continuation run. In many large-diameter system designs, this near-equal reduction is preferred over a more aggressive single-stage step-down precisely because it manages velocity increase incrementally, reducing turbulence at the transition point and preserving better flow balance across complex distribution networks.

Specifying this fitting in Schedule 80 reflects a deliberate engineering decision driven by one or more of the conditions that define Schedule 80 applications — operating pressures that exceed Schedule 40 design limits at large diameters, chemical service environments that benefit from the additional wall mass of Schedule 80, mechanical loading or impact resistance requirements at an exposed or structurally loaded pipe transition, or a system-wide Schedule 80 specification in a high-criticality industrial or municipal installation. The thicker PVC wall delivers a meaningfully higher pressure rating than Schedule 40 at equivalent diameters, greater resistance to mechanical stress and external loading at the reduction point, and improved structural confidence in continuous-duty industrial service.

Manufactured from virgin PVC compound to ASTM D2467 standards and gray in color per Schedule 80 convention, this bushing is NSF/ANSI 61 certified for potable water contact — qualifying it for municipal water distribution, water treatment infrastructure, and food-adjacent process piping in addition to its core industrial, chemical, and process piping applications. Compatible with IPS-standard PVC solvent cements and primers for a code-compliant, permanent installation.

Specifications:

Note: Schedule 80 pressure ratings exceed Schedule 40 at equivalent diameters due to increased wall thickness. At large diameters, even a modest reduction ratio produces meaningful changes in downstream flow velocity and pressure drop — consult manufacturer-published pressure-temperature rating tables and confirm hydraulic implications with a qualified engineer before system design and commissioning.

Industries & Applications:

• Industrial Process Piping — The primary Schedule 80 application for this fitting; used to step down a 10-inch supply header to an 8-inch sub-process main, equipment feed line, or parallel circuit connection in chemical plants, refineries, pharmaceutical facilities, and heavy manufacturing environments where operating pressures, chemical exposure, or mechanical loading demand Schedule 80 construction at every transition fitting in the system
• Confined Equipment Rooms & Pump Stations — The flush style profile makes this bushing particularly well-suited to pump station vaults, mechanical rooms, and equipment enclosures where clearance between adjacent fittings, structural walls, or equipment surfaces is limited and a standard protruding bushing collar would create interference or installation complications
• Chemical Handling Systems — The increased wall thickness and structural integrity of Schedule 80 make this bushing well-suited to aggressive or reactive fluid service where a 10-inch chemical supply main must transition inline to an 8-inch downstream connection; always verify chemical compatibility with the specific fluid and concentration before specification
• Municipal Water Distribution — Specified in high-pressure distribution zones, pump station discharge headers, and engineered water main configurations where the system designer requires the pressure margin and structural performance of Schedule 80, and where the flush bushing profile keeps the transition point compact within constrained vault or chamber installations
• Water Treatment & Filtration Plants — Integrates into large-diameter process piping headers and treatment train distribution manifolds where a 10-inch process main must transition to an 8-inch downstream connection in environments where Schedule 80 is specified system-wide for pressure capacity, chemical resistance, or long-term reliability
• Industrial Cooling Water Systems — Used in large-diameter recirculating cooling circuits in power generation, large-scale HVAC, and heavy manufacturing facilities to provide an inline 10-to-8-inch reduction at headers, equipment connections, or zone distribution points where Schedule 80 reliability and flush-profile installation geometry are both required
• Wastewater Force Mains — Used in pressurized large-diameter sewage conveyance systems where pump discharge pressure requires Schedule 80 at pipe transitions, and where the flush style bushing profile accommodates the tight fitting clearances common in pump station wet well and discharge piping configurations
• High-Pressure Irrigation Pump Stations — Specified on pump discharge manifolds and pressurized mainline headers in commercial and large-scale agricultural irrigation systems where pump discharge pressures at this diameter exceed Schedule 40 design limits, and where manifold layout constraints favor the flush bushing profile over a standard hex or shoulder-style bushing
