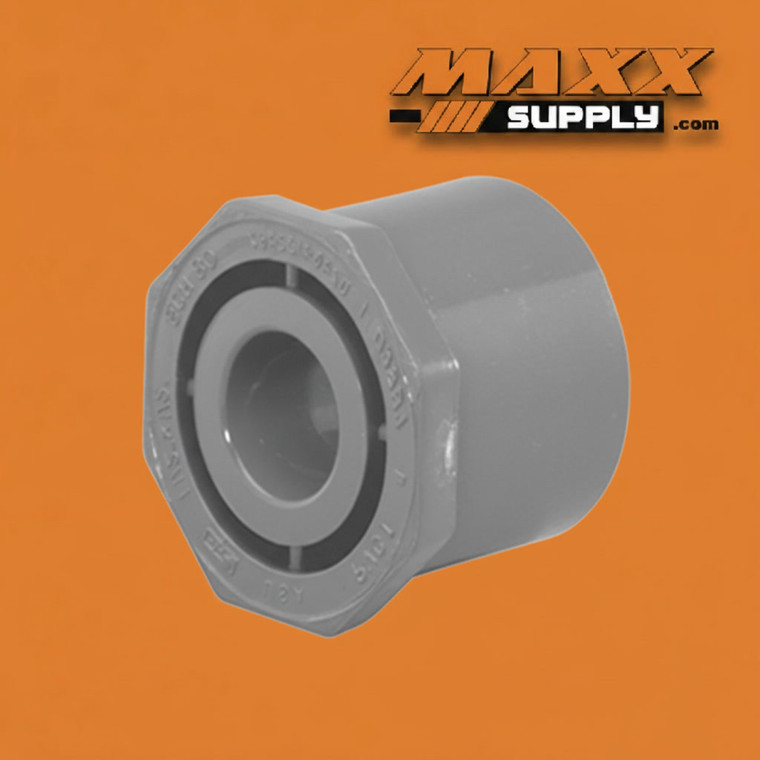

Bushing, Spigot x Slip (Flush Style) PVC Schedule 80 6" x 2-1/2" (837-529)

The 6" x 2-1/2" PVC Schedule 80 Flush Style Bushing (Spigot x Slip) is a precision inline reducer designed for industrial PVC piping systems where the internal bore continuity and flow profile at the size reduction point are as important as the reduction itself. The 6-inch spigot end inserts directly into any standard 6-inch Schedule 80 slip socket fitting, while the 2-1/2-inch slip socket on the outlet end accepts 2-1/2-inch Schedule 80 PVC pipe for permanent solvent cement installation. The flush style construction ensures that the spigot end seats precisely flush with the face of the receiving fitting socket — eliminating the internal shoulder or bore intrusion that a standard spigot bushing creates at the installation point.

This distinction — flush style versus standard spigot bushing — is not cosmetic. In a standard spigot bushing, the bushing body extends into the socket of the receiving fitting to a depth that can create a visible step or shoulder at the interior face of the joint. In fluid systems carrying solids, slurries, viscous chemicals, or media sensitive to flow disruption, this shoulder is a turbulence point, a potential solids accumulation site, and in high-purity or sanitary applications, a contamination harbor that complicates cleaning and validation. The flush style bushing addresses this by seating the spigot face level with the interior socket surface — producing a transition geometry that is as smooth as the fitting interior allows at the reduction point, with no protruding edge to disrupt flow or accumulate material.

At the 6" to 2-1/2" size differential, the flush style construction carries particular relevance. A four-and-a-half-size step-down in a single fitting body is already a pronounced transition; ensuring that transition occurs without an additional internal obstruction at the socket face is a detail that matters in the industrial and process environments where Schedule 80 fittings at this size are specified. Chemical processing lines, pharmaceutical and semiconductor process systems, water treatment dosing circuits, and any application where the fluid media or regulatory requirements make internal bore geometry a specification criterion are the environments where the flush style designation moves from a preference to a requirement.

The spigot end is cemented into the receiving 6-inch Schedule 80 fitting socket, and the 2-1/2-inch slip socket accepts 2-1/2-inch Schedule 80 PVC pipe in the standard solvent cement installation procedure per ASTM D2564. Schedule 80 PVC provides the elevated wall thickness, higher pressure rating, and chemical resistance required for the industrial service environments where this fitting is most commonly specified. Manufactured to ASTM D2467 standards and compatible with Schedule 80 PVC pipe and fittings in both 6-inch and 2-1/2-inch sizes.

Specifications:

Industries & Applications:

• Chemical Processing & High-Purity Systems — The defining application for a flush style bushing; used in chemical process lines and high-purity fluid systems where an internal shoulder at the reduction point would create a turbulence zone, a solids accumulation site, or a contamination harbor incompatible with the cleanliness, purity, or chemical integrity requirements of the process — and where the flush seating geometry eliminates that risk at the fitting socket
• Pharmaceutical & Semiconductor Manufacturing — Specified in cleanroom and controlled-environment process systems where internal bore smoothness is a validation requirement — ultrapure water distribution, chemical delivery systems, and process fluid lines where any internal obstruction at a fitting junction is a qualification concern and flush style construction is the accepted solution in PVC piping assemblies
• Water & Wastewater Treatment — Applied in treatment plant process piping where 6-inch Schedule 80 headers require a 2-1/2-inch branch or outlet connection — at dosing circuits, filter connections, or secondary distribution points — and where the flush style construction prevents solids, biofilm, or treatment chemicals from accumulating at the reduction point inside the fitting socket
• Industrial Process Piping & Slurry Systems — Incorporated in industrial process lines conveying viscous fluids, slurries, or solids-bearing media where a shoulder at the reduction point would cause material accumulation, pressure drop concentration, or flow disruption inconsistent with the hydraulic requirements of the process — and where the flush style bore transition minimizes these effects at the size step-down
• Food & Beverage Processing — Used in Schedule 80 PVC process piping for food-grade fluid conveyance and washdown systems where internal bore smoothness at fitting junctions is a hygiene and cleanability requirement — the flush style geometry reducing the risk of product residue accumulation at the reduction point between production cycles
• Pump Discharge & Equipment Connections — Specified at pump discharge fitting outlets and equipment nozzle connections where a 6-inch fitting socket must supply a 2-1/2-inch downstream line — and where the flush style construction ensures a clean, unobstructed internal transition at the equipment connection point, reducing turbulence in the immediate post-pump or post-equipment flow zone
