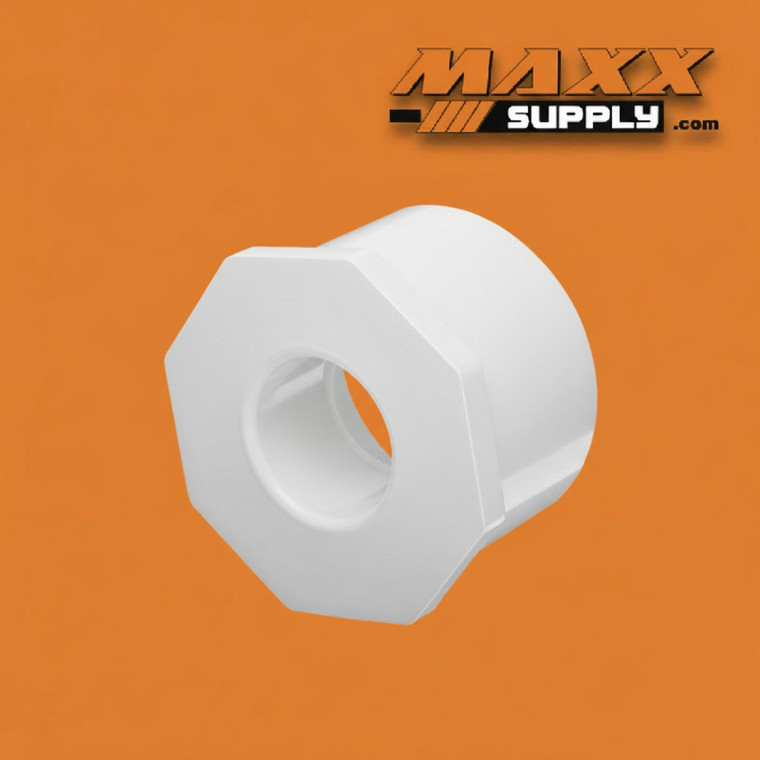

Bushing, Spigot x Socket PVC Schedule 40 3" x 1/2" (437-333)

This 3" × 1/2" Schedule 40 PVC Bushing provides a five-step, all-solvent-cement size reduction from a 3" slip socket position directly to a 1/2" PVC pipe run in a fully solvent-welded Schedule 40 system. The 3" spigot end inserts into any standard 3" female slip socket fitting or coupling for solvent cement joining on the upstream side, while the 1/2" slip socket on the outlet end accepts standard 1/2" PVC pipe for solvent cement joining on the downstream side. Both connections are permanent, chemically fused solvent-cemented joints — no threaded interface is introduced at either end of the fitting.

The 3" to 1/2" size span is among the most extreme reductions available in a single bushing fitting — stepping down across five pipe size intervals from one of the largest standard Schedule 40 distribution pipe sizes directly to one of the most common small-bore branch and supply pipe sizes. The practical significance of this range is substantial: achieving the same transition without a 437-333 would require a sequence of reducing couplings, stepped bushings, or multiple adapter fittings installed in series — each adding a joint, a potential leak point, and axial length to the assembly at the size transition position. The 437-333 accomplishes the entire five-step transition at the 3" socket face in a single compact bushing body, installed directly in the socket of the upstream fitting without any intermediate fittings between the 3" socket and the 1/2" outlet.

This extreme size reduction defines a highly specific application niche. The 3" inlet places this bushing at primary distribution fittings — mainline tees, crosses, wyes, and manifold assemblies where 3" is the primary distribution pipe size in commercial irrigation, municipal water supply, commercial plumbing, pool and spa recirculation, and large-bore process distribution systems. The 1/2" outlet connects to the small-bore branch supply runs, instrument supply branches, chemical dosing connections, control valve supply lines, and small equipment feeds that draw from those 3" distribution positions. The 437-333 bridges the full span between the primary large-bore distribution tier and the small-bore branch supply tier in a single fitting at the tee or manifold socket face.

Selecting the 437-333 vs. any 438-series or 439-series equivalent at the 3" × 1/2" size combination requires identifying both the upstream connection type and the downstream connection requirement. The 437-333 spigot end cements into a slip socket — making it the correct selection wherever the 3" upstream connection is a female socket opening. If the downstream 1/2" connection is a threaded component rather than a cemented pipe run, an 438-series Spigot × FPT equivalent applies. When the upstream port is female-threaded rather than a socket, an all-threaded 439-series equivalent applies. The 437-333 is the correct fitting when both the upstream 3" port is a socket and the downstream 1/2" connection is a cemented pipe run — fully solvent-welded on both sides of the size transition.

The 437-series is the Schedule 40 counterpart to the 837-series Schedule 80 Spigot × Slip bushings (previously written at multiple sizes). The 437-333 is the Schedule 40 equivalent at the 3" × 1/2" size combination — white PVC at the Schedule 40 pressure rating — correct for Schedule 40 socket systems where the 260 psi @ 73°F rating is sufficient for the application. When the upstream system is Schedule 80, the 837-series equivalent (if stocked at this size) maintains Schedule 80 pressure rating continuity at the transition point.

The flush style of the spigot bushing produces a streamlined, low-profile assembly. The spigot end sits within the 3" socket body, and the 1/2" outlet socket presents cleanly at the downstream side — the entire five-step size transition contained within the bushing body at the socket face without extending significantly beyond it.

Manufactured in white Schedule 40 PVC, this bushing delivers reliable performance across commercial, light industrial, and residential large-bore-to-small-bore transition applications. PVC's resistance to acids, bases, salts, chlorine, and common process fluids provides long service life in environments where metal bushings would corrode or introduce contamination at the size transition point. NSF/ANSI 61 and NSF/ANSI 14 listings confirm suitability for potable water contact.

Rated to 260 psi at 73°F (governed by the 3" spigot end), this bushing handles standard pressure service across irrigation, commercial plumbing, pool and spa, water treatment, and light industrial applications. Two separate solvent-cemented joints must be made at installation — the spigot end into the receiving 3" socket, and the 1/2" downstream pipe into the bushing's outlet slip socket. For both joints, clean and dry all mating surfaces before application. Apply purple PVC primer to the spigot exterior and receiving socket interior for the upstream joint; apply primer to the 1/2" pipe end and the bushing's outlet socket interior for the downstream joint. At 3", use a medium-body PVC solvent cement on the spigot end; standard-body cement is appropriate for the 1/2" outlet socket joint. Apply a uniform coat to both mating surfaces at each joint before inserting. Hold each joint with a slight quarter-turn twist for 30 seconds and allow full cure time per the cement manufacturer's temperature and humidity guidelines before pressurizing. Make the upstream spigot joint first to seat the bushing securely in the receiving socket before making the downstream pipe joint at the 1/2" outlet. Apply published pressure derating factors for service temperatures above 73°F.

Specifications:

Industries & Applications:

• Large-Bore-to-Small-Bore Branch Transitions — The defining application for the 3" × 1/2" all-cement bushing: reduces a 3" slip socket position on a mainline tee, cross, wye, or manifold fitting directly to a 1/2" solvent-welded branch run in Schedule 40 systems where a primary large-bore distribution fitting must simultaneously feed a small-bore branch supply line — accomplishing the five-step size transition at the socket face in a single fitting without intermediate reducing couplings or adapter assemblies
• Commercial Irrigation & Agriculture — Transitions a 3" Schedule 40 PVC mainline socket position on a tee or cross to a 1/2" cemented branch supply run feeding small-bore zone supply laterals, drip emitter supply lines, chemical injection branches, or small-bore control valve supply connections in large-scale commercial, golf course, and agricultural irrigation systems where the 3" mainline must supply 1/2" branch connections at manifold and distribution positions
• Commercial Plumbing — Reduces a 3" slip socket port on a tee, cross, or manifold assembly to a 1/2" cemented branch supply run in commercial building water distribution systems where the primary 3" distribution main must supply small-bore 1/2" branch supply lines to fixtures, equipment feeds, and secondary zone supply connections at fitting positions in the main distribution layout
• Pool, Spa & Aquaculture — Transitions a 3" slip socket position on recirculation distribution tees, filter manifold fittings, and equipment header crosses to a 1/2" cemented pipe run in pool, spa, and aquatic facility piping assemblies where the primary 3" recirculation and distribution system must supply small-bore 1/2" branch connections at chemical feed points, instrument supply branches, and equipment connections within the large-bore distribution layout
• Water & Wastewater Treatment — Reduces a 3" slip socket position on process distribution tees, pump manifold fittings, and chemical distribution crosses to a 1/2" cemented secondary branch run in municipal and industrial water treatment facilities where the primary 3" distribution header must supply 1/2" small-bore branch connections at chemical dosing injection points, instrument supply branches, and secondary distribution positions along the main header
• Industrial Process Piping — Provides a five-step all-cement size transition from a 3" slip socket position on process distribution fittings to a 1/2" cemented secondary pipe run in light industrial and chemical handling systems where the primary large-bore distribution system must supply small-bore 1/2" branch connections at process instrument supply points, chemical injection branches, and secondary distribution takeoffs in Schedule 40 PVC process piping layouts
• Site Utilities & Infrastructure — Installed at 3" slip socket positions on site utility distribution tees, manifold fittings, and distribution crosses in commercial site water distribution systems where the 3" primary utility main must supply 1/2" small-bore branch connections for hose bibs, small equipment feeds, irrigation sub-connections, and secondary utility supply points at fitting positions throughout the site distribution layout
