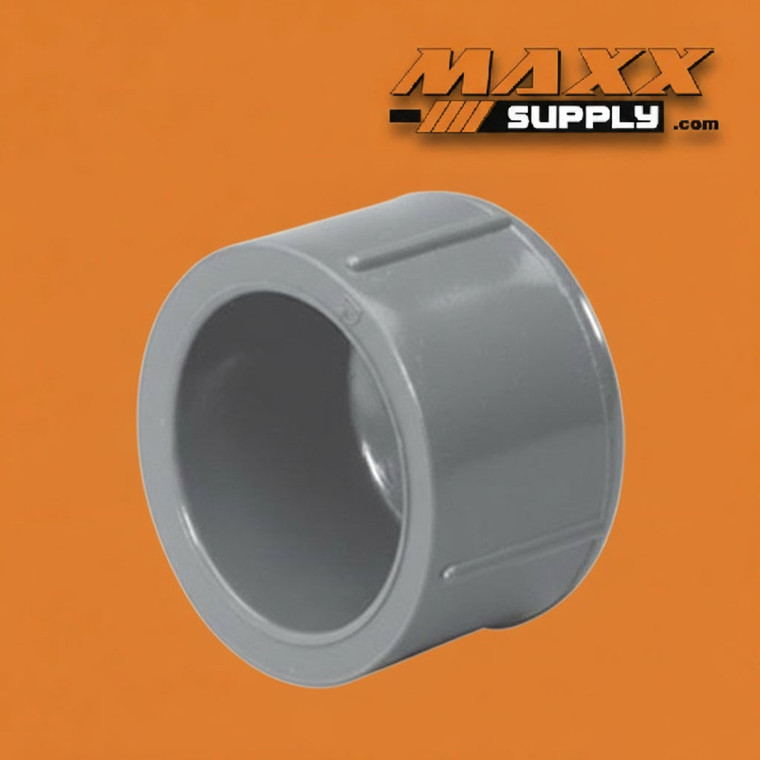

Cap, Slip PVC Schedule 80 12" (847-120)

The 12" PVC Schedule 80 Slip Cap (Part No. 847-120) is a heavy-duty, large-diameter pipe termination fitting engineered to permanently close the end of a 12-inch PVC pipe or spigot fitting — delivering the increased wall thickness, higher pressure capacity, and superior mechanical resilience of Schedule 80 construction at a diameter where the forces acting on a closed pipe end are substantial and the consequences of fitting failure are significant. The single slip (socket) end accepts a 12-inch PVC pipe or spigot via solvent-weld connection, forming a permanent, pressure-rated termination that becomes integral to the pipe system upon curing.

At 12 inches, a capped pipe end is subject to considerable hydrostatic end load — the product of system pressure acting across the full cross-sectional area of the pipe. Where that pressure is elevated, where the system operates in continuous-duty industrial service, or where the consequences of a fitting failure at the termination point are unacceptable, Schedule 80 is the correct specification. The thicker PVC wall of this cap translates directly into a higher pressure rating than a Schedule 40 cap at the same nominal diameter, greater resistance to mechanical impact and external loading at an exposed pipe end, and improved structural integrity under thermal cycling in demanding service environments.

Pipe caps serve several distinct roles across a system's lifecycle — and this fitting is built to perform reliably in all of them. In new construction, caps terminate dead-end runs, close unused branch outlets, and seal system ends during pressure testing and commissioning. In operating systems, they provide permanent, solvent-welded termination of lines that have been rerouted, decommissioned, or isolated. In maintenance and expansion scenarios, a cap seals a pipe end during phased construction or system extension, holding pressure in the active portion of the system while work continues downstream. In each scenario, the solvent-weld socket connection delivers a termination joint that — when properly prepared and installed — is as strong as the pipe wall itself.

The cap's fully enclosed dome end distributes hydrostatic end load evenly across its interior, avoiding the stress concentrations that can develop at flat-ended terminations in high-pressure service. This geometry, combined with Schedule 80 wall thickness, makes this fitting a dependable endpoint for large-diameter industrial and municipal systems where long-term joint integrity at the termination is not optional.

Manufactured from virgin PVC compound to ASTM D2467 standards and gray in color per Schedule 80 convention, this cap is NSF/ANSI 61 certified for potable water contact — qualifying it for use in municipal water distribution mains, water treatment infrastructure, and food-adjacent process piping in addition to its core industrial, chemical, and wastewater applications. Compatible with IPS-standard PVC solvent cements and primers for a code-compliant, permanent installation.

Specifications:

Note: Schedule 80 pressure ratings exceed Schedule 40 at equivalent diameters due to increased wall thickness. At 12-inch diameter, hydrostatic end load on a capped pipe is substantial — always consult manufacturer-published pressure-temperature rating tables and confirm fitting selection with a qualified engineer before system design and commissioning.

Industries & Applications:

• Industrial Process Piping — Permanently terminates 12-inch Schedule 80 supply headers, dead-end distribution runs, and unused branch outlets in chemical plants, refineries, pharmaceutical facilities, and heavy manufacturing environments where system pressure, chemical exposure, or mechanical loading demands Schedule 80 at every fitting in the system including termination points
• Municipal Water Distribution — Seals the ends of large-diameter transmission and distribution mains at system boundaries, dead-end streets, future extension points, and hydrant branch stubs where the operating pressure and long-term service requirements of the municipal system dictate Schedule 80 specification
• Pressure Testing & System Commissioning — One of the most common use cases for large-diameter caps across all industries; solvent-welded to pipe ends during hydrostatic pressure testing to temporarily or permanently seal the system while test pressure is applied and held; Schedule 80 provides the pressure margin and structural confidence required at 12-inch diameter during high-pressure testing events
• Phased Construction & System Extension — Caps active pipe ends during multi-phase construction projects where a portion of the system is pressurized and operational while adjacent sections are still under construction; the permanent solvent-weld joint holds system pressure reliably until the cap is cut out and the extension fitting is installed
• Water Treatment & Filtration Plants — Terminates unused process headers, closes decommissioned treatment train connections, and seals pipe ends in chemical dosing and distribution manifolds in plant environments where Schedule 80 is specified system-wide for pressure and chemical resistance
• Industrial Cooling Water Systems — Seals dead-end runs, future connection points, and decommissioned branch outlets in large-diameter recirculating cooling circuits in power generation, large-scale HVAC, and heavy manufacturing facilities
• Wastewater Force Mains — Terminates pressurized large-diameter sewer force mains at system boundaries, pump station discharge headers, and future connection stubs where continuous pump pressure requires Schedule 80 termination integrity at the pipe end
• Mining & Heavy Industrial Water Supply — Provides a robust, high-integrity termination for 12-inch site water distribution runs operating under elevated pressure or in chemically aggressive environments where Schedule 40 termination fittings would be an underspec relative to the rest of the system
