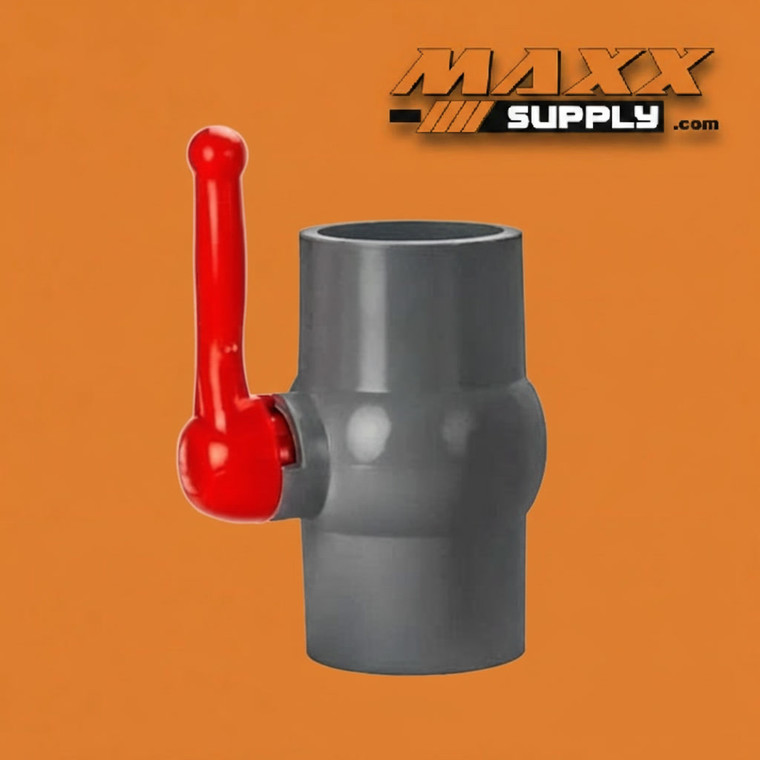

Compact Ball Valve Gray PVC Socket 6" (1060GS)

The 1060GS is a 6-inch compact ball valve in grey PVC engineered for full-bore, quarter-turn shutoff in large-diameter piping systems where a permanent, high-integrity installation is the priority. The socket (slip) end connections create a solvent-welded joint that becomes a unified, monolithic assembly with the surrounding piping — eliminating threaded joint leak points and delivering superior pull-out resistance in pressurized and chemically aggressive service.

As the socket-end counterpart to the 1060GT (threaded), the 1060GS is the preferred specification where permanent installation is intentional — high-pressure industrial lines, buried or concealed piping, and systems where vibration or thermal cycling could compromise threaded connections over time. Once bonded with standard PVC solvent cement, the socket joint matches or exceeds the pressure rating of the pipe itself, making it the structurally superior connection method for demanding applications.

Grey PVC (Type II) construction delivers enhanced impact resistance over standard white PVC — the right material choice for above-ground industrial environments, exposed mechanical rooms, and chemical processing lines where fittings are subject to physical stress, UV exposure, or aggressive fluid contact.

The compact body design reduces face-to-face installation length compared to full-size standard ball valves, giving installers more flexibility in confined spaces without sacrificing full-port flow capacity. A quarter-turn lever handle provides fast, positive shutoff with immediate visual confirmation of valve position — essential for operations teams managing multiple isolation points across large systems.

Specifications

Industries & Applications

The 1060GS is the specified choice for permanent large-diameter installations in chemically demanding environments:

• Chemical Processing & Industrial Plants — Socket connections eliminate threaded joint vulnerability in systems handling acids, alkalis, and solvents; grey PVC chemical compatibility handles aggressive fluids that would rapidly degrade metal alternatives.
• Water & Wastewater Treatment — Permanent solvent-weld installation is preferred on treatment train isolation points, recirculation headers, and chemical feed lines where joint integrity over a long service life is the primary design criterion.
• Industrial Aquaculture & Hatcheries — Corrosion-free grey PVC handles saltwater, ozone lines, and acidic treatment systems; socket ends create leak-free permanent joints in high-humidity, wet environments where threaded connections are prone to weeping.
• Agricultural Chemical Injection — Fertilizer and pesticide distribution mainlines specify socket valves for buried or semi-permanent installations where the joint must match the surrounding piping system's permanence and pressure integrity.
• Mining & Mineral Processing — Slurry lines, leach field distribution, and chemical reagent systems benefit from grey PVC's broad chemical resistance and the structural reliability of solvent-welded connections under continuous pressure.
• Commercial HVAC & Mechanical Rooms — Suitable for permanent isolation on chilled water headers, cooling tower chemical treatment lines, and large-building mechanical systems where valves are not intended for routine removal.
