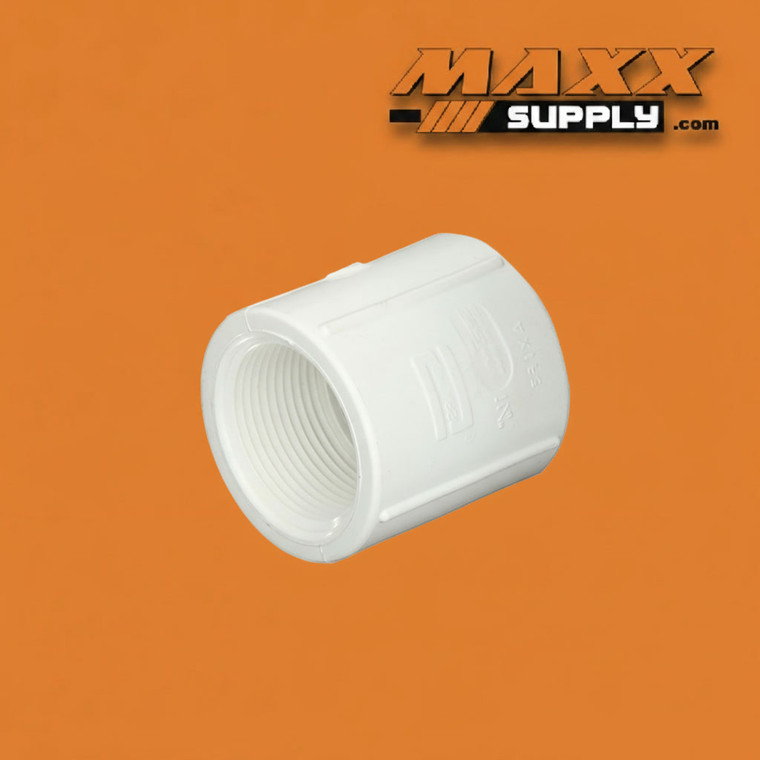

Coupling, FPT x FPT PVC Schedule 40 1/2" (430-005)

This 1/2" Schedule 40 PVC Threaded Coupling (FPT x FPT) provides a straight-through inline connection for two 1/2" male NPT-threaded pipe ends, nipples, or fitting outlets in all-threaded PVC piping systems — the standard fitting for joining two threaded components inline at the small-bore service, instrument, and chemical injection assembly diameter without introducing solvent-cement joints or directional changes into the assembly. Constructed in white Schedule 40 PVC, it is the smallest confirmed entry in the 430 series and the highest-pressure rated — carrying approximately 600 psi at 73°F — making it well-suited for the instrument manifold, chemical injection line, and compact solenoid valve outlet assemblies that dominate at this small-bore service diameter.

Both the inlet and outlet are cut to 1/2" FPT (Female Pipe Thread) geometry per NPT tapered thread standards, each accepting any standard 1/2" male NPT pipe end, nipple, or fitting for a pressure-tight mechanical connection when made up with thread sealant or PTFE tape. As the fundamental straight-through connector in all-threaded PVC assemblies at this diameter, the FPT coupling joins two male-threaded components in a continuous inline run — at pipe extension joints where a longer 1/2" threaded assembly requires two nipple sections, at repair sections where a damaged nipple or short pipe length must be replaced inline, at instrument manifold assemblies where a male-threaded component outlet must connect to a downstream male-threaded continuation, and at chemical injection and process piping assemblies where two male-threaded run sections must be joined inline without a direction change. The FPT coupling requires male pipe ends or nipples on both sides — it should not be confused with the riser extender (434-005 confirmed in this catalog session, MPT x FPT), which has a male-threaded inlet that threads directly into a female port without requiring a nipple on the inlet side; with the full-size 430-007 (3/4" FPT coupling) or 430-010 (1" FPT coupling) at larger diameters; or with the reducing 430-101 (3/4" x 1/2" FPT Reducer Coupling, confirmed in this session), which reduces from 3/4" to 1/2" rather than maintaining the same diameter on both ends. At 1/2", this coupling most commonly extends all-threaded instrument manifold runs between two male-threaded components, joins nipple sections in compact solenoid valve outlet assemblies and chemical injection line runs, and provides inline continuity wherever two 1/2" male-threaded components must be connected in-line without a direction change or size reduction at the standard small-bore service and instrument distribution diameter.

Rated to approximately 600 psi at 73°F — the highest confirmed pressure rating in the 430 series — this coupling is suited for standard commercial and light industrial water distribution, irrigation, instrument service, and chemical injection applications well within its pressure class. NSF/ANSI 61 listing confirms suitability for potable water contact.

Install using a quality pipe thread sealant or PTFE tape on both male NPT pipe ends before engagement. Avoid over-torquing — PVC threads require hand-tight plus one to two turns; at 1/2", the compact fitting body is more susceptible to overtorque cracking than at larger sizes. Derate pressure ratings for elevated temperatures per published derating curves.

Specifications:

Industries & Applications:

• Instrument & Process Piping — Joins two 1/2" male-threaded components inline on instrument manifold runs, sample distribution assemblies, and chemical feed pipe sections in manufacturing, water treatment, and laboratory facilities where all-threaded 1/2" instrument and chemical feed assemblies require straight-through inline connections between male-threaded components at run extension, nipple joining, and component connection points throughout the distribution layout
• Irrigation & Water Distribution — Joins two 1/2" male-threaded nipple sections, valve outlet stubs, and service connection segments inline in residential and light commercial irrigation all-threaded and mixed-connection 1/2" assemblies where a straight-through threaded connection is required at pipe extension joints, repair sections, and valve station assembly continuation points throughout the small-bore service and zone supply distribution system
• Chemical Handling — Provides inline straight-through connections between 1/2" male-threaded components, nipple sections, and fitting outlets in chemical feed manifolds, metering pump distribution headers, and injection line assemblies conveying acids, caustics, fertilizer solutions, and other fluids incompatible with metal couplings at 1/2" line sizes where two male-threaded components must be joined inline without direction change or size reduction
• Commercial Plumbing — Provides inline straight-through threaded connections between 1/2" male-threaded pipe ends, nipple stubs, and fitting outlet threads in commercial building water distribution systems where all-threaded PVC construction is specified at the small-bore 1/2" service and instrument diameter and a straight-through inline connection is needed at pipe extension and component joining points
• Water Treatment & Aquaculture — Used at inline straight-through connection points on 1/2" all-threaded process water distribution runs, chemical dosing manifold threaded sections, and treatment system service pipe assemblies where NSF/ANSI 61 compliance and chemical resistance are required at every male-to-female threaded connection throughout the small-bore all-threaded system
• HVAC & Mechanical Systems — Joins two 1/2" male-threaded components inline on cooling tower supply branch service line assemblies, chilled water distribution service connections, and chemically treated water system 1/2" service assemblies within the Schedule 40 pressure rating class where straight-through inline threaded connections are required between male-threaded components at service line extension and joining points
