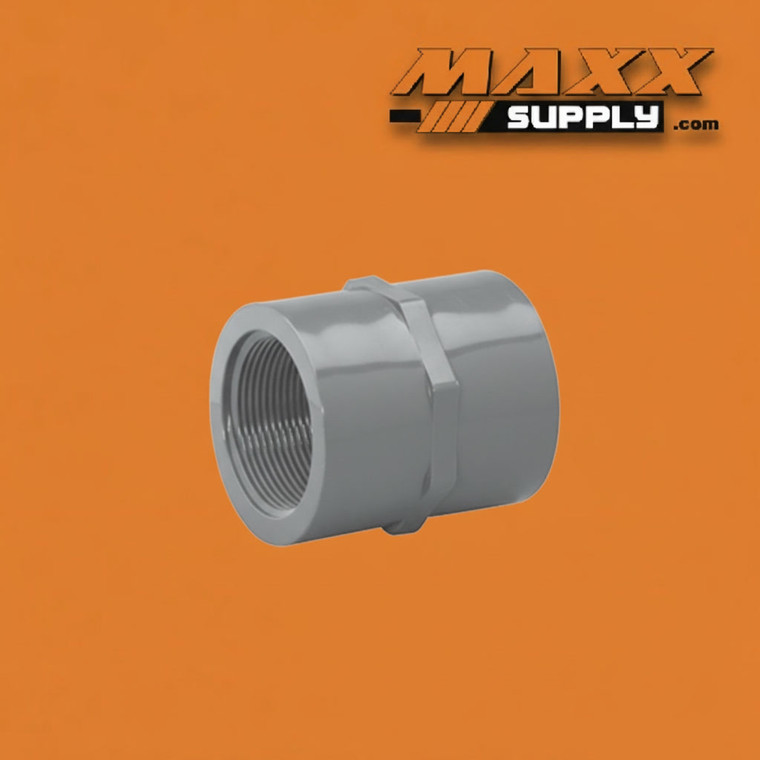

Coupling, FPT x FPT PVC Schedule 80 1" (830-010)

This 1" Schedule 80 PVC FPT × FPT Coupling provides a straight inline connection between two 1" male-threaded components in a threaded Schedule 80 PVC pressure piping system. Both female NPT threaded ends receive standard 1" male-threaded pipe, nipples, MPT adapters, or male-threaded fittings, joining them end to end without solvent cement in a fully threaded assembly.

The FPT × FPT coupling is the foundational straight-run joining fitting in any threaded PVC system — the threaded counterpart to the slip coupling in solvent-welded systems. Where the 829-series slip coupling joins plain pipe ends with solvent cement at equal socket diameters, the 830-010 joins two male-threaded ends by receiving both into its female-threaded sockets on either side of the coupling body. A nipple threads in from one side, another nipple or MPT-terminated fitting threads in from the other, and the coupling body draws both into a continuous, sealed straight run at the fitting center.

At 1", the 830-010 serves what is consistently the most prevalent pipe size in commercial and industrial Schedule 80 threaded systems. One-inch NPT is the standard size across the broadest range of standard valves, pump ports, strainer bodies, flow meters, equipment nozzles, and instrument connections in industrial and commercial facilities — and fully threaded Schedule 80 assemblies at this size appear throughout mechanical rooms, chemical process connections, equipment supply runs, and instrument distribution systems wherever nipple-and-fitting construction is the design approach rather than solvent-welded pipe runs. The 830-010 is the straight-run coupling at the heart of every such assembly, appearing wherever two threaded ends must be joined in line without a directional change or branch.

Three distinct system contexts drive demand for the 830-010. In fully threaded Schedule 80 assemblies — mechanical rooms, equipment bays, process connections, and instrument supply systems built entirely with threaded pipe, nipples, and fittings — the 830-010 is the standard inline joining coupling at every nipple-to-nipple or adapter-to-nipple straight-run connection. In hybrid systems that combine solvent-welded PVC mains with threaded branch sub-assemblies at equipment connections and instrument takeoffs, the 830-010 joins the threaded components within the branch portion without cement work at the coupling position. In retrofit and repair situations where an existing threaded system must be extended, modified, or repaired without introducing cement joints into an established threaded assembly, the 830-010 provides the straight-run connection point that maintains the all-threaded system integrity through the modification.

Maintaining schedule consistency through repair and extension work is as important in threaded Schedule 80 systems as in solvent-welded systems. Substituting a Schedule 40 coupling in a Schedule 80 threaded line introduces a pressure rating discontinuity at the coupling position — the 830-010 eliminates that gap, delivering a Schedule 80 coupling body that matches the pressure rating of the surrounding Schedule 80 threaded system at the most common commercial and industrial pipe size.

Manufactured in dark gray Schedule 80 PVC, this coupling delivers the increased wall thickness and mechanical strength required in industrial, chemical, and commercial pressure piping where Schedule 40 ratings are insufficient. PVC's broad chemical resistance covers acids, bases, salts, chlorine, and most common process fluids, providing long service life in corrosive environments where metal couplings would corrode, scale, or seize on threads under repeated assembly and disassembly cycles. NSF/ANSI 61 listing confirms suitability for potable water contact.

Rated to 450 psi at 73°F, this coupling handles standard to elevated pressure service across the full range of commercial and industrial Schedule 80 PVC applications. Apply PTFE tape or compatible pipe thread sealant to all male threads before engaging either FPT end. Hand-tighten plus one to two turns — do not over-torque PVC female threads, as excessive force risks cracking the coupling body at the thread root. When assembling a nipple-coupling-nipple run, make up both ends evenly and avoid applying torsional stress to one end while tightening the other. Apply published pressure derating factors for service temperatures above 73°F.

Specifications:

Industries & Applications:

• Fully Threaded Schedule 80 Systems — Joins two 1" MPT-terminated components — nipples, male adapters, threaded pipe ends, or MPT-ported fittings — in a straight inline run in mechanical rooms, equipment bays, process connection assemblies, and instrument supply systems built entirely with threaded Schedule 80 PVC components; the 830-010 is the straight-run coupling that holds these fully threaded 1" assemblies together at every nipple-to-nipple and adapter-to-nipple inline joint
• Industrial Process Piping — Provides an inline straight connection between 1" Schedule 80 threaded nipples and MPT-terminated fittings on process headers, chemical distribution branches, pump manifold connections, equipment supply runs, and instrument supply lines in chemical processing, water treatment, and manufacturing facility piping where the threaded system construction requires an all-FPT coupling body at the inline joining position
• Chemical Dosing & Injection Systems — Joins 1" threaded nipples and MPT-terminated components in chemical dosing headers, injection assembly runs, and reagent distribution assemblies where fully threaded Schedule 80 construction is standard practice for disassembly access and maintenance — the 830-010 provides the straight-run coupling at every inline joint in the dosing header assembly
• Commercial Plumbing — Joins threaded pipe segments and nipples in 1" Schedule 80 PVC branch supply mains, equipment feed connections, and mechanical room piping assemblies where the system is constructed with threaded fittings and nipples rather than solvent-welded pipe runs; provides schedule-consistent repair and extension joints in existing 1" Schedule 80 threaded systems
• Threaded System Repair & Extension — Provides a straight inline repair or extension coupling in existing 1" threaded Schedule 80 PVC systems where a damaged nipple or short threaded section must be replaced without cutting solvent-cemented pipe or introducing cement work into the established threaded assembly — threading out the damaged component and threading in a replacement while maintaining full Schedule 80 pressure rating consistency at the repair joint
• Water & Wastewater Treatment — Joins threaded nipple-and-fitting assemblies on 1" Schedule 80 PVC process headers, chemical dosing supply lines, instrument connection runs, and pump station distribution piping in municipal and industrial water treatment facilities where threaded construction is used at equipment connection and secondary distribution points
• HVAC & Mechanical Systems — Used in 1" Schedule 80 PVC cooling tower chemical feed lines, treated water distribution threaded branches, and glycol system connection assemblies where threaded construction is specified at the coupling position and schedule-consistent pressure rating must be maintained through the inline joining point in commercial mechanical system piping
