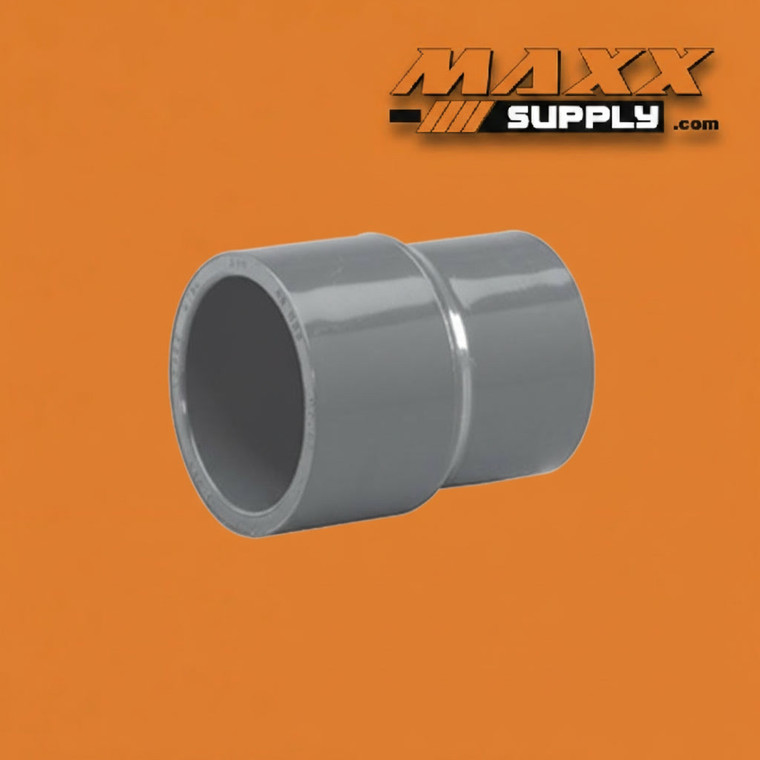

Coupling, Slip PVC Schedule 80 1-1/2" x 1/2" (829-209)

The 829-209 is a 1-1/2" x 1/2" Schedule 80 PVC reducing slip coupling with solvent weld socket connections on both ends. This fitting reduces the pipe size from 1-1/2 inches to 1/2 inch directly in line along the same flow axis — no direction change occurs. The three nominal step reduction from 1-1/2 to 1/2 inch is aggressive by design, reflecting the specific and deliberate use cases this fitting serves: transitioning from a 1-1/2-inch Schedule 80 mainline to a 1/2-inch small-bore downstream run used for instrumentation supply lines, chemical injection feeds, sampling port supplies, gauge connection sub-lines, and minor service connections where the mainline must deliver controlled access to a significantly smaller secondary pipe.

Unlike the 829-210 (1-1/2" x 3/4") where the downstream bore carries substantial primary service flow, the 1/2-inch downstream bore on the 829-209 is a small-bore size best suited for connections where flow volume is intentionally restricted or where the downstream run feeds a single small-bore device, instrument, or access point rather than a continuing distribution line. This distinction in downstream application profile is the clearest way to determine whether the 829-209 or a less aggressive reducing coupling is the right fitting for a given installation — if the downstream 1/2-inch run must carry meaningful primary flow volume, a less aggressive reducer with a larger small-end bore is likely the more appropriate choice.

Both socket ends are bored to accept standard Schedule 80 PVC pipe for solvent weld assembly, producing permanent, pressure-rated joints at each end when properly primed and cemented. The all-slip configuration means both joints are fixed once cemented — the 829-209 is the correct choice when both the upstream 1-1/2-inch run and the downstream 1/2-inch run are permanently routed fixed installations. For applications where the downstream 1/2-inch connection must remain serviceable and reconnectable, a combination of a reducing coupling and a threaded adapter at the small end provides the appropriate alternative.

The assembly pressure rating is governed by the larger 1-1/2-inch end at 280 PSI @ 73°F. The 1/2-inch end alone rates substantially higher at 850 PSI — one of the larger end-to-end pressure rating differentials in the 829-series at this inlet size — but system design must use the lower of the two end ratings for the assembled fitting. Schedule 80 wall thickness provides the higher pressure rating and mechanical strength required for industrial chemical feed, process piping, and utility water systems. Gray PVC construction delivers broad chemical resistance to acids, alkalis, salts, and many industrial process fluids with no corrosion risk in continuously wet or chemically aggressive environments. Both socket ends are manufactured and dimensioned to ASTM D2467 standards for Schedule 80 PVC socket fittings.

Specifications:

Pressure rating is for water service at 73°F. Assembly pressure rating is governed by the lower-rated 1-1/2-inch end at 280 PSI. The 1/2-inch end in isolation rates at 850 PSI but does not govern the assembled fitting rating. Derate for elevated temperatures and aggressive chemical service per manufacturer guidelines.

Industries & Applications:

The 829-209 Schedule 80 reducing slip coupling is specified across chemical process, industrial, and utility piping wherever a straight inline three-step reduction from a 1-1/2-inch Schedule 80 mainline to a 1/2-inch small-bore downstream run is required in a permanently routed all-solvent-weld installation:

• Chemical Processing & Water Treatment — Straight inline reductions on 1-1/2-inch chemical feed, chlorination, and reagent distribution headers stepping down to 1/2-inch injection sub-lines, chemical dosing quill supply connections, and small-bore treatment equipment feeds where the mainline must deliver controlled, restricted-volume access to a downstream injection or dosing point
• Instrumentation Supply Lines — Inline size transitions on 1-1/2-inch process and utility headers feeding 1/2-inch instrument supply sub-lines, pressure gauge connections, transducer feeds, and analyzer sample supply runs where the 1/2-inch downstream bore is appropriately sized for the instrument flow demand and the straight inline reducer keeps the transition compact along the pipe run axis
• Pressure Monitoring & Gauge Connections — Reducing connections on 1-1/2-inch process and irrigation mains where a 1/2-inch sub-line must be tapped off inline to supply pressure gauges, gauge isolator valves, and pressure monitoring instruments mounted along the mainline route
• Sampling Port Supply Lines — Straight inline reductions supplying 1/2-inch sample point sub-lines from 1-1/2-inch process distribution headers on water treatment, chemical process, and laboratory systems where sample taps must access mainline flow through a small-bore permanent inline connection
• Irrigation & Agricultural Systems — Inline size transitions on 1-1/2-inch pressurized irrigation and pump discharge headers stepping down to 1/2-inch drip emitter feeds, microirrigation laterals, and small-bore control sub-lines where the size reduction occurs in a straight pipe run at a defined distribution point along the mainline
• Industrial Process Piping — Straight inline reductions on 1-1/2-inch process distribution and utility water headers supplying 1/2-inch downstream service connections, drain tap sub-lines, and small-bore equipment supply runs where the aggressive size reduction is intentional and the compact all-slip assembly is preferred over a multi-fitting alternative
• HVAC & Cooling Systems — Inline size transitions on 1-1/2-inch chemical treatment feed lines stepping down to 1/2-inch instrument connections, chemical injection ports, and small-bore service sub-lines at straight-run reduction points in mechanical room and cooling tower installations
• Semiconductor & Electronics Manufacturing — Straight inline reductions on 1-1/2-inch ultra-pure water and chemical distribution headers stepping down to 1/2-inch small-bore distribution sub-lines and instrument supply connections where the aggressive reduction is a deliberate system design choice and joint count minimization through all-slip coupling assembly is a cleanliness priority
