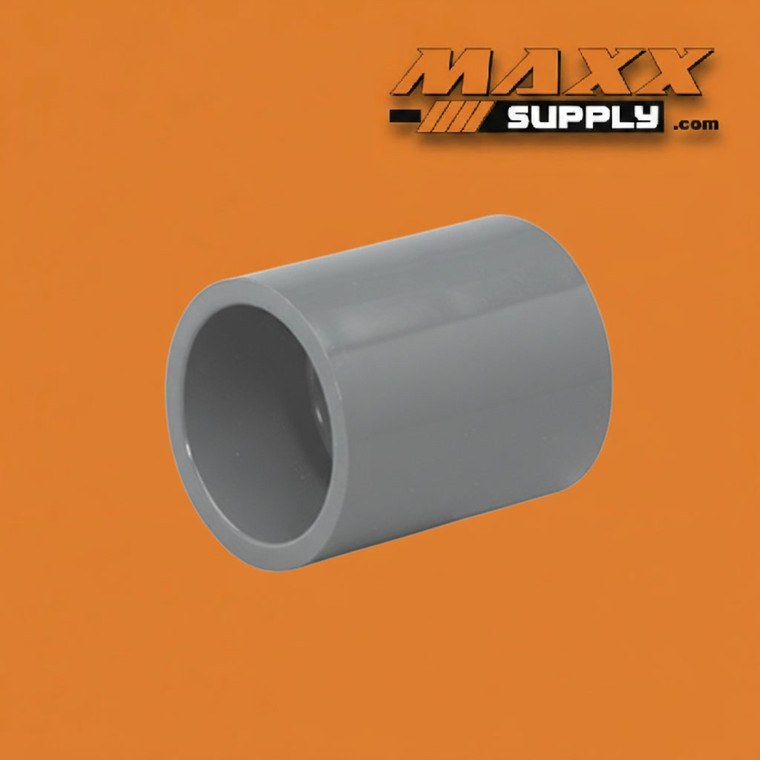

Coupling, Slip x Slip PVC Schedule 80 4" (829-040)

The 829-040 is a 4" Schedule 80 PVC Coupling with Slip x Slip connections. This fitting joins two 4" PVC pipe ends inline — one pipe end is inserted and cemented into each socket, forming a permanent, pressure-rated solvent-welded joint at both ends that is fully integrated into the pipe system once cured. The coupling introduces no change in pipe size, no directional change, and no branch — it is the straightforward inline joining fitting, used wherever two sections of 4" PVC pipe must be connected end to end in a pressure system.

The coupling is one of the most fundamental fittings in any PVC pressure piping system, appearing wherever a pipe run must be extended, a damaged section spliced out and replaced, two prefabricated pipe spools connected at their ends, or a pipe length falls short of a required run and must be supplemented with an additional section. At 4", the 829-040 is sized for the large-diameter commercial and industrial tier of the PVC pressure fitting catalog — a size commonly encountered on pump station discharge and suction mains, water treatment plant distribution headers, large irrigation supply lines, industrial process piping, and municipal water distribution infrastructure where 4" is a primary pipe diameter.

Both slip sockets accept standard 4" Schedule 40 or Schedule 80 PVC pipe for solvent cementing. Proper solvent cementing practice at 4" is important — large-diameter joints require a full two-step primer and cement application with thorough, even coverage across the complete socket interior and pipe end surface on both sides. Pipe must be inserted to full socket depth and held firmly in alignment through the set period before the joint is allowed to cure undisturbed. At 4", a two-person assembly is recommended: one to apply cement and seat the pipe, one to hold alignment and maintain insertion pressure through the full set time. Do not allow the joint to rotate after insertion — rotation after seating breaks the solvent bond before it sets.

The coupling's role in repair and maintenance scenarios is particularly significant at larger pipe sizes like 4". When a section of 4" PVC pressure main is damaged, corroded at a connection point, or must be removed for system modification, two couplings — one at each cut end of the repair section — provide the re-connection points for the replacement pipe spool. This repair coupling application is one of the most frequent real-world uses for large-diameter slip couplings in the field, and having the 829-040 in stock at a distributor who can ship quickly is a meaningful service advantage for contractors working against project or repair timelines.

Manufactured to Schedule 80 wall thickness standards, the 829-040 carries a higher pressure rating than a Schedule 40 coupling of equivalent size and is the correct specification for systems where Schedule 80 fittings are required throughout — chemical processing lines, high-pressure distribution systems, and industrial process piping where the additional wall thickness and pressure capacity of Schedule 80 are specified. The dark gray rigid PVC compound resists a wide range of acids, bases, and industrial chemicals, making this coupling a reliable long-service joining fitting in corrosive environments where metal couplings would degrade or contaminate the process fluid.

Specifications:

⚠️ Note: Use primer on both sockets and both pipe ends before cement application — do not skip the priming step at 4" diameter. A two-person assembly is recommended at this size. Do not rotate the joint after pipe insertion — rotation after seating breaks the solvent bond before it cures. Once cemented, neither end can be disassembled without cutting pipe. Consult manufacturer derating tables for elevated-temperature service.

Industries & Applications:

• Water & Wastewater Treatment — Joins sections of 4" Schedule 80 PVC pipe on treatment plant distribution headers, process piping mains, pump station connections, and filter assembly piping where a permanent, high-integrity inline joint is required between pipe sections in corrosive-service environments
• Chemical Processing — Used throughout 4" chemical distribution and process piping systems to join pipe sections inline, extend runs, and reconnect pipe after maintenance or modification, with the Schedule 80 wall thickness and dark gray PVC compound providing the chemical resistance and pressure capacity required in demanding industrial chemical service
• Industrial Process Piping — Connects 4" pipe sections inline on process water, cooling water, and chemical distribution mains on manufacturing plant piping systems and skid assemblies where permanent, pressure-rated inline joins are required at regular intervals along the pipe run
• Pump Station & Equipment Connections — Used on 4" pump discharge and suction mains to join pipe sections, extend runs to equipment connection points, and reconnect pipe spools after pump service or piping modification, with the coupling providing the inline join at each spool end
• Irrigation & Agricultural Systems — Joins 4" PVC supply main sections inline on large-scale agricultural, golf course, and commercial irrigation systems where the supply infrastructure requires multiple pipe joins along extended mainline runs and repair coupling applications are a routine maintenance requirement
• Municipal & Utility Infrastructure — Applied on 4" municipal water distribution mains, pump station headers, and utility service piping where inline coupling of pipe sections, repair of damaged main segments, and connection of prefabricated pipe spools are standard installation and maintenance operations
