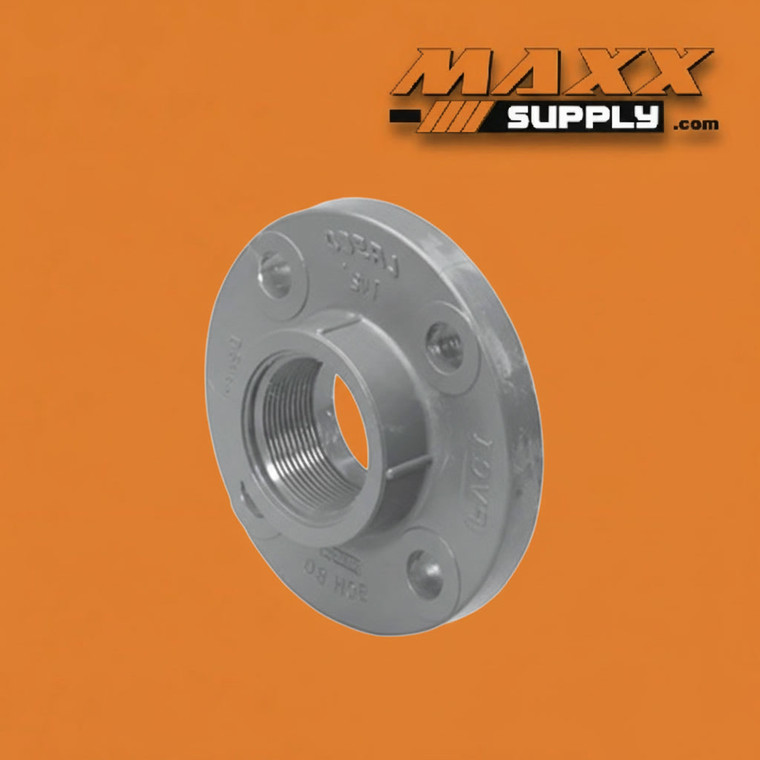

Flange (Solid Style), FPT PVC Schedule 80 4" (852-040)

The 4" PVC Schedule 80 Solid Style Flange (FPT) is a heavy-duty thermoplastic flange fitting designed to create a bolted, face-to-face connection point in Schedule 80 PVC piping systems. The female NPT threaded inlet accepts a standard threaded pipe or nipple on the pipe side, while the flat face bolts directly to any mating ANSI 150 lb flange — whether PVC, metal, or a flanged valve, pump, or equipment connection — using standard bolt circle hardware.

The solid style flange is a one-piece, full-body fitting machined or molded without a separate backing ring. This distinguishes it from a van stone (lap joint) flange assembly, where a loose ring rotates behind a flared stub end. The solid construction makes this fitting the more rigid, pressure-stable choice and the preferred option when alignment is fixed, bolt loads are predictable, and the assembly does not require the rotational freedom that a van stone provides.

Flanged connections offer a critical advantage over solvent-welded or threaded joints in systems that require periodic disassembly for inspection, maintenance, valve replacement, or equipment service. Where a cemented fitting is permanent and a threaded connection is limited in size and pressure range, a flanged joint can be unbolted and reassembled cleanly — making this fitting a standard specification at pump inlets and outlets, filter housings, strainer connections, and any other system point where future access is anticipated.

Schedule 80 PVC provides the additional wall thickness and elevated pressure rating needed in industrial environments where chemical exposure, elevated operating pressures, or demanding service conditions exceed what Schedule 40 fittings are rated to handle. Manufactured to ASTM D2467 standards and drilled to ANSI B16.5 150 lb bolt pattern for broad compatibility with mating flanges across materials and manufacturers.

Specifications:

Industries & Applications:

• Pump Connections — The most common application; bolted flanges at pump inlets and outlets allow the pump to be unbolted and serviced without cutting into the piping system, making this fitting a near-universal specification at pump stations and booster assemblies
• Water & Wastewater Treatment — Used at filter housings, strainer connections, chemical dosing points, and treatment equipment tie-ins where routine access for cleaning and service is built into the system design
• Industrial Chemical Processing — Specified wherever a PVC piping system interfaces with chemical handling equipment, reactors, or storage tanks in industries including agriculture, semiconductor fabrication, metal finishing, and pulp and paper
• Irrigation & Agricultural Systems — Applied at pump discharge connections, filter manifolds, and mainline isolation points on large commercial and agricultural irrigation systems where equipment serviceability is a maintenance priority
• Municipal Infrastructure — Incorporated in pump station piping, lift station headers, and treatment plant process lines where flanged connections are standard practice for long-term operational flexibility
• HVAC & Mechanical Systems — Used in chilled water, cooling tower, and process cooling loops where PVC is specified for corrosion resistance and flanged connections are required at equipment interfaces
