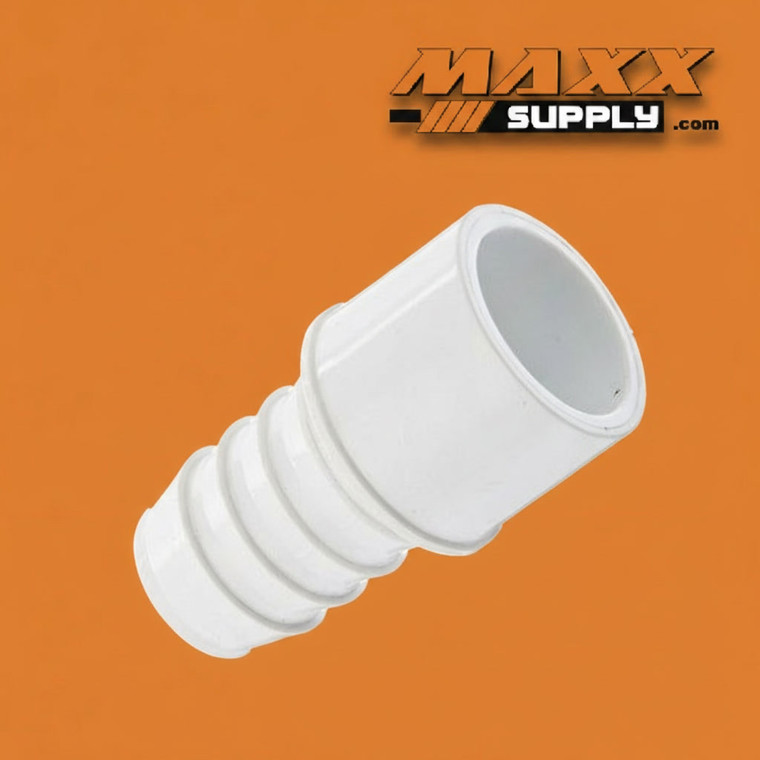

Insert Adapter, Spigot ( 3/4" Slip) Insert x Spigot PVC SCH 40 1" x 1" (460-010)

This 1" × 3/4" Schedule 40 PVC Insert Adapter transitions a 1" flexible polyethylene pipe or irrigation poly tubing run to a rigid 3/4" PVC fitting socket in a single compact fitting. The barbed insert end accepts 1" flexible poly pipe on the flexible tubing side — held by hose clamps or compression fittings over the barbed shank — while the 3/4" spigot end inserts directly into any standard 3/4" female slip socket fitting, coupling, or tee for solvent cement joining on the rigid PVC side. The result is a direct, mechanical transition from flexible poly tubing to the rigid solvent-welded PVC fitting system at the spigot face without an intermediate rigid pipe section between the adapter body and the receiving socket.

The spigot outlet end is the defining characteristic that distinguishes the 460-010 from the related 474-series Insert × Slip adapter (previously written at 2" as 474-020). Both are insert adapters bridging flexible poly pipe to rigid PVC systems — but their outlet ends serve different connection geometries. The 474-series slip socket outlet receives a rigid PVC pipe end, making it a fitting that sits inline within a pipe run or at the end of a rigid pipe section. The 460-010 spigot outlet inserts directly into the receiving socket of an adjacent fitting — a tee branch socket, a coupling socket, a cross outlet, or any fitting presenting an open 3/4" slip socket face — without requiring a rigid pipe stub between the adapter and the upstream socket. This spigot-into-socket geometry is the same compact direct-connection advantage established across all spigot-end fittings in this catalog, now applied to the insert adapter context: the flexible poly run terminates at the adapter insert end, and the adapter spigot seats directly in the rigid PVC system's fitting socket.

At the 1" × 3/4" size combination, this adapter addresses one of the most common poly-to-PVC transition requirements in residential and commercial irrigation systems. One-inch flexible poly pipe is a widely used irrigation mainline material — flexible, freeze-tolerant, easy to route through irregular terrain, and available in bulk coil lengths for buried mainline runs. Three-quarter inch NPT and slip socket fittings are a standard connection size throughout the rigid PVC valve bodies, manifold assemblies, filter stations, and distribution tees that make up the above-grade and in-box portions of irrigation systems. The 460-010 bridges these two worlds at the connection point — the flexible 1" poly mainline enters the adapter insert end, and the rigid PVC system begins at the 3/4" spigot seated in the receiving fitting socket.

The size relationship between the 1" poly insert end and the 3/4" spigot end reflects the dimensional reality of 1" nominal poly irrigation pipe. One-inch nominal poly pipe has an OD that corresponds to the 3/4" PVC pipe OD used for Schedule 40 PVC spigot-to-socket joints — meaning the adapter produces a seamless geometric transition that inserts cleanly into a standard 3/4" PVC fitting socket without requiring a reducing bushing or adapter between the insert adapter body and the receiving socket.

In irrigation system layouts, the spigot-outlet insert adapter is particularly useful at valve box and manifold positions where space is limited and fitting count minimization is a practical design objective. Rather than running a short section of rigid 3/4" PVC pipe from the valve box fitting socket out to a 474-series Insert × Slip adapter at the pipe end, the 460-010 inserts directly into the valve box fitting socket — compressing the transition into a single adapter body at the socket face and eliminating the rigid pipe stub between them.

For installation at the insert end, ensure the flexible poly tubing cut end is clean, square, and free of burrs. Lubricate the barbed insert end with a compatible pipe lubricant or dish soap — do not use petroleum-based lubricants on PVC or PE components. Push the insert end firmly into the tubing bore until the tubing seats fully against the fitting shoulder. Install two stainless steel hose clamps on the tubing over the barbed insert area per the fitting manufacturer's installation instructions and tighten to the specified torque. For the spigot end, clean and dry the spigot exterior and receiving socket interior before application. Apply purple PVC primer to both mating surfaces, then apply a uniform coat of Schedule 40 PVC solvent cement to both the spigot exterior and socket interior and insert with a slight quarter-turn twist, holding firmly for 30 seconds. Make the spigot joint before the insert end hose clamp installation where possible to allow free rotation for socket alignment. Allow full cement cure time per the cement manufacturer's guidelines before pressurizing.

Specifications:

Industries & Applications:

• Irrigation & Agriculture — The defining application for the 1" × 3/4" Insert × Spigot adapter: transitions a 1" flexible poly irrigation mainline directly to a 3/4" PVC fitting socket at valve box positions, in-line manifold tee branch sockets, filter station socket inlets, and distribution fitting connection points in residential, commercial, golf course, and agricultural irrigation systems — the spigot end inserts directly into the receiving fitting socket without requiring a rigid pipe stub between the adapter and the upstream socket, producing the most compact possible poly-to-PVC transition at the fitting face
• Irrigation Valve Box & Manifold Connections — Connects 1" flexible poly irrigation mainline pipe directly to 3/4" slip socket openings on valve body manifolds, distribution tees, filter station sockets, and inline coupling sockets within irrigation valve boxes and manifold enclosures where space constraints inside the valve box make the direct-socket spigot connection preferable to a rigid pipe section between the adapter and the receiving fitting
• Residential Irrigation Systems — Transitions 1" flexible poly mainline pipe coils to the rigid 3/4" PVC valve body, manifold, and distribution fitting assemblies at zone controller valve boxes, backflow preventer inlets, and inline filter connections in residential landscape irrigation systems where the buried flexible poly mainline connects to the above-grade or in-box rigid PVC system components
• Commercial Irrigation & Landscape — Provides a compact direct-socket poly-to-PVC transition at 3/4" fitting socket positions on distribution manifold assemblies, valve station inlets, filter housing sockets, and zone header connections in commercial landscape, sports field, and park irrigation systems where 1" poly mainlines feed 3/4" rigid PVC fitting assemblies at multiple valve and distribution connection points
• Drip & Micro-Irrigation Systems — Connects 1" flexible poly supply mainline pipe directly to 3/4" slip socket inlets on filter assemblies, pressure regulator sockets, zone manifold tee sockets, and distribution fitting connections in large-scale drip and micro-irrigation systems where the 1" poly supply line transitions to the 3/4" rigid PVC distribution and filtration assembly at the zone inlet position
• Agricultural Water Supply — Transitions 1" flexible poly water supply tubing to 3/4" PVC fitting socket connections at field entry connection points, inline filter sockets, pump station manifold tee sockets, and distribution valve box connections in agricultural water supply and drip irrigation systems where flexible poly supply lines interface with rigid PVC fitting assemblies
• Residential Plumbing & Water Distribution — Used at poly-to-PVC transition points where 1" flexible polyethylene water service pipe connects to 3/4" PVC fitting sockets at service entry points, inline filter housings, and distribution system transition positions in residential water supply systems where flexible poly service pipe transitions to rigid PVC distribution
