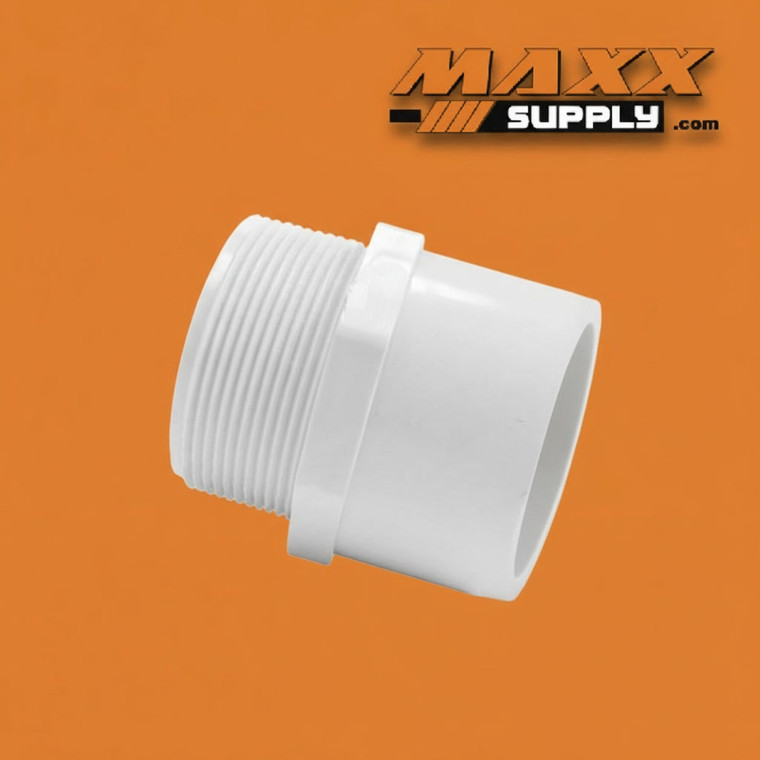

Male Adapter, MPT x Slip PVC Schedule 40 3" (436-030)

This 3" Schedule 40 PVC Male Adapter provides a permanent, pressure-rated transition from a solvent-cemented PVC pipe system to a 3" male NPT threaded connection, enabling a Schedule 40 PVC pipe run to interface directly with female-threaded valves, pumps, equipment ports, threaded couplings, and tank fittings at the pipe-to-thread transition point. The slip socket end accepts standard 3" PVC pipe for solvent cement joining, while the MPT end threads into any compatible 3" female-threaded (FPT) port without additional adapters.

At 3", the male adapter serves a large-bore pipe size that appears across irrigation submains, commercial plumbing distribution headers, pump station outlet connections, pool and spa recirculation mains, water treatment process headers, and site utility distribution systems. These are applications where the pipe run carries meaningful flow volume at a size that regularly interfaces with female-threaded equipment ports, valves, and couplings in both above-grade and buried system configurations. The 436-030 is the correct adapter wherever the transition from solvent-welded 3" PVC pipe to a female-threaded port must be accomplished in a single fitting at the pipe end.

The male adapter does the inverse of the female adapter — it presents a male-threaded end that inserts into female-threaded ports rather than receiving male-threaded components. This distinction is essential for correct product selection at the pipe-to-thread transition. When the receiving connection is a female-threaded (FPT) port on a valve, pump body, tank fitting, or threaded coupling, the male adapter is the correct selection. When the PVC pipe run must receive an externally threaded nipple or male-threaded fitting, the female adapter (435-series) is the appropriate counterpart. At 3", both adapters frequently appear in the same system — typically on opposite sides of a valved assembly or equipment connection where the PVC piping must adapt to both sides of a threaded component body.

Manufactured in white Schedule 40 PVC, this adapter delivers reliable performance across residential, commercial, and light industrial piping applications at this large-bore pipe size. PVC's resistance to acids, bases, salts, chlorine, and common process fluids provides long service life in environments where metal adapters would corrode, seize under repeated assembly cycles, or introduce scale and contamination into the fluid stream. NSF/ANSI 61 and NSF/ANSI 14 listings confirm suitability for potable water contact.

Rated to 260 psi at 73°F, this fitting handles standard pressure service across commercial plumbing, irrigation, pool and spa, water treatment, and process piping applications at 3". For the slip socket end, clean and dry the pipe end and socket interior before application. Apply purple PVC primer to both mating surfaces, then apply a uniform coat of medium-body Schedule 40 PVC solvent cement to both the pipe end and socket interior before joining. Insert the pipe with a slight quarter-turn twist and hold firmly for 30 seconds. Allow full cure time per the cement manufacturer's temperature and humidity guidelines before pressurizing or threading any component into the MPT end. Apply PTFE tape or compatible thread sealant to the MPT threads before engaging any female-threaded port. Hand-tighten plus one to two turns with a strap wrench — avoid over-torquing into PVC or metal female threads, as excessive force can crack the receiving fitting or the adapter body at the thread engagement zone. Apply published pressure derating factors for service temperatures above 73°F.

Specifications:

Industries & Applications:

• Commercial & Municipal Plumbing — Terminates a 3" solvent-welded PVC water supply main or distribution header at a female-threaded gate valve, butterfly valve, ball valve, or threaded coupling in commercial building water distribution and mechanical room piping; frequently paired with a 435-series female adapter on the opposing side of a valved assembly where both ends of the valve body must be adapted to solvent-welded PVC pipe
• Irrigation & Agriculture — Connects a 3" solvent-cemented PVC submain or mainline to female-threaded pump discharge ports, filter vessel inlets, flow control valves, zone header couplings, and metering equipment in large-scale commercial, golf course, and agricultural irrigation systems where the 3" pipe size serves a primary or submain distribution role
• Water & Wastewater Treatment — Provides a slip-to-MPT transition at female-threaded pump flanges, filter vessel inlets, tank fittings, and process equipment connection ports on 3" Schedule 40 PVC process piping in municipal and industrial water treatment facilities where the upstream piping is solvent-welded and the downstream component presents a female-threaded port
• Pool, Spa & Aquaculture — Connects 3" solvent-cemented PVC recirculation, filtration, and backwash pipe runs to female-threaded pump connections, filter head inlets, multiport valve bodies, and manifold couplings in commercial pool, spa, and large aquatic facility installations where the 3" pipe size handles primary recirculation and filtration flow volumes
• Industrial Process Piping — Adapts 3" Schedule 40 PVC pressure piping to female-threaded equipment nozzles, flow meters, pressure regulators, and process equipment inlets in light industrial, chemical processing, and agricultural chemical handling systems where corrosion-resistant slip-to-MPT transitions are required at female-ported process equipment connections
• Fire Protection & Site Utilities — Used in underground and above-grade 3" PVC piping systems where a permanent socket-to-MPT transition is required at fire hydrant risers, backflow preventer inlets, utility service entries, and site water distribution connections presenting female-threaded ports
• Pump Station & Equipment Routing — Connects the solvent-welded 3" PVC discharge header to female-threaded pump outlet ports, strainer body inlets, and equipment nozzles at pump station outlet assemblies in municipal water supply, irrigation pump stations, and commercial mechanical equipment rooms where the 3" pipe size serves the primary pump discharge flow requirement
