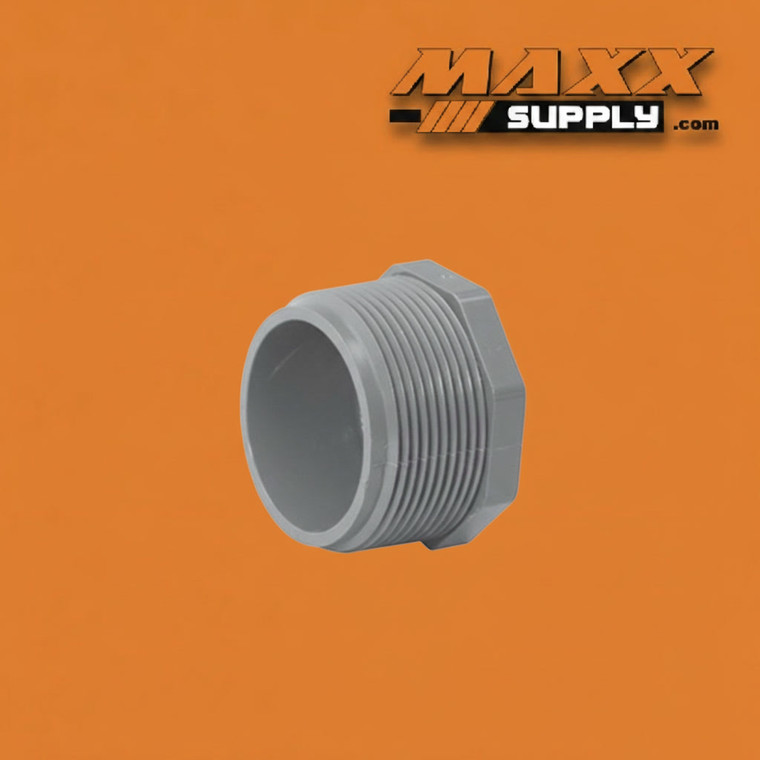

Plug, MPT PVC Schedule 80 1-1/4" (850-012)

This 1-1/4" Schedule 80 PVC MPT Plug provides a removable, threaded closure for any 1-1/4" female NPT (FPT) port in a Schedule 80 PVC pressure piping system. The externally threaded male body engages directly into an open 1-1/4" FPT opening — on a tee branch outlet, cross port, manifold connection, equipment nozzle, or tank fitting — sealing the port against pressure, flow, and fluid loss with a reliable thread-and-sealant mechanical closure that can be removed and reinstalled without cutting into the line.

Correctly identifying the closure fitting type required at a 1-1/4" port requires understanding the distinction between the MPT plug and the FPT cap. The MPT plug is a male-threaded component that inserts into a female-threaded port — it closes open FPT openings. The FPT cap (848-series, previously written at 1-1/4" as 848-012) is a female-threaded component that threads onto a male-threaded pipe end or nipple — it closes open MPT ends. At the same 1-1/4" pipe size, these two fittings serve opposite thread orientations and are not interchangeable. When the open port to be sealed is female-threaded — a tee branch outlet, cross port, manifold connection, or equipment nozzle presenting internal female threads — the 850-012 MPT plug is the correct selection. When the open end to be sealed is a male-threaded pipe end or nipple, the 848-012 FPT cap applies. In any fully configured 1-1/4" Schedule 80 threaded system, both fitting types will commonly appear — the plug at branch and manifold FPT ports, the cap at nipple and pipe ends.

The threaded connection is the key serviceability advantage of the MPT plug over a permanent solvent-cemented closure. Once installed with PTFE tape and thread sealant, the plug holds full system pressure at the 1-1/4" FPT port — and when the system requires access, the plug backs off cleanly without disturbing any surrounding piping or fittings. This removability makes the 850-012 the preferred closure at unused tee branch outlets and cross ports that may be commissioned in the future, spare manifold connections that will be activated during system expansion, pressure test ports that must be accessed across multiple service cycles, equipment nozzles that will receive future instrumentation, and any FPT port where the possibility of future access makes permanent closure an unacceptable constraint on system flexibility.

At 1-1/4", the 850-012 is particularly common at secondary distribution headers, pump suction manifolds, and equipment supply tees where spare branch ports are a standard feature of the system design — installed at initial construction and plugged until the branch is commissioned. The transitional pipe size role of 1-1/4" in commercial and industrial Schedule 80 systems means these spare ports are often found at secondary header tee positions where additional equipment feeds, chemical dosing branches, or instrument supply connections are planned but not yet active.

In Schedule 80 systems, maintaining schedule consistency at closure points preserves pressure rating continuity at the plugged port. Using a Schedule 80 MPT plug rather than a Schedule 40 substitute ensures the plug body is not the lowest-rated component in the assembly at the sealed branch position — a consideration during hydrostatic and pneumatic pressure testing where the plugged ports must hold the full test pressure without becoming the limiting element.

Manufactured in dark gray Schedule 80 PVC, this plug delivers the increased wall thickness and mechanical strength required in industrial, chemical, and commercial pressure piping where Schedule 40 ratings are insufficient. PVC's broad chemical resistance covers acids, bases, salts, chlorine, and most common process fluids, providing long service life in corrosive environments where metal plugs would corrode, pit, or seize in the female threads over time. NSF/ANSI 61 listing confirms suitability for potable water contact.

Rated to 630 psi at 73°F, this plug handles standard to elevated pressure service across a wide range of fluid handling applications. Apply PTFE tape or compatible thread sealant to the MPT threads before engaging any FPT port. Hand-tighten plus one to two turns using a wrench on the plug head — do not over-torque, as excessive force risks cracking the receiving FPT fitting at the thread root. When used for pressure testing, verify that the plug and all adjacent fittings are rated to the intended test pressure and that appropriate pressure relief provisions are in place before pressurizing. Apply published pressure derating factors for service temperatures above 73°F.

Specifications:

Industries & Applications:

• Tee & Cross Branch Port Sealing — Closes unused 1-1/4" FPT branch outlets on Schedule 80 tees, crosses, and manifold assemblies in process piping, water distribution, and chemical handling systems — the primary application for the 850-012 across all industries served by 1-1/4" Schedule 80 PVC; the removable MPT plug allows spare branch ports to be sealed at initial system construction and opened for future branch commissioning without cutting into the main run or disturbing the surrounding piping
• Industrial Process Piping — Seals unused and spare FPT ports on 1-1/4" Schedule 80 process headers, secondary distribution tees, pump suction manifolds, chemical distribution assemblies, and equipment nozzle connections in water treatment, chemical processing, and manufacturing facilities where a removable, schedule-consistent threaded closure is required at ports intended for future use or periodic access
• System Commissioning & Pressure Testing — Temporarily seals 1-1/4" FPT branch outlets, manifold ports, and equipment connection openings during hydrostatic and pneumatic pressure testing of Schedule 80 PVC piping systems in industrial and commercial construction — the threaded closure allows the plug to be removed and replaced across multiple test cycles without disturbing the surrounding piping or fittings; consistent Schedule 80 rating ensures the plug does not limit test pressure at the sealed port position
• Commercial Plumbing — Caps unused 1-1/4" FPT branch outlets on manifolds, tee assemblies, and valve bodies in mechanical room and building water supply Schedule 80 systems where spare ports are included in the system design for future expansion, equipment connections, or instrumentation additions; the removable plug preserves access to these ports throughout the life of the installation
• Chemical Handling — Provides a removable, corrosion-resistant threaded closure on unused FPT ports in chemical storage tank outlet fittings, reagent distribution headers, and chemical feed manifolds at 1-1/4" in systems handling acids, caustics, and aggressive fluids where metal plugs would corrode or seize in the female threads over time, making future removal difficult or impossible without damaging the surrounding fitting
• Water & Wastewater Treatment — Closes unused 1-1/4" FPT ports on filter vessel connections, chemical dosing manifolds, sampling port assemblies, and process equipment tee fittings in municipal and industrial water treatment facilities between service intervals, during system modifications, and at spare branch positions maintained for future chemical feed or instrument connection additions
• Irrigation & Agricultural Systems — Seals unused 1-1/4" FPT branch outlets on zone headers, filter manifolds, and distribution tees in commercial irrigation and agricultural water supply systems where seasonal maintenance, system expansion, and future zone additions make a removable threaded closure preferable to a permanent cap at spare branch port positions
