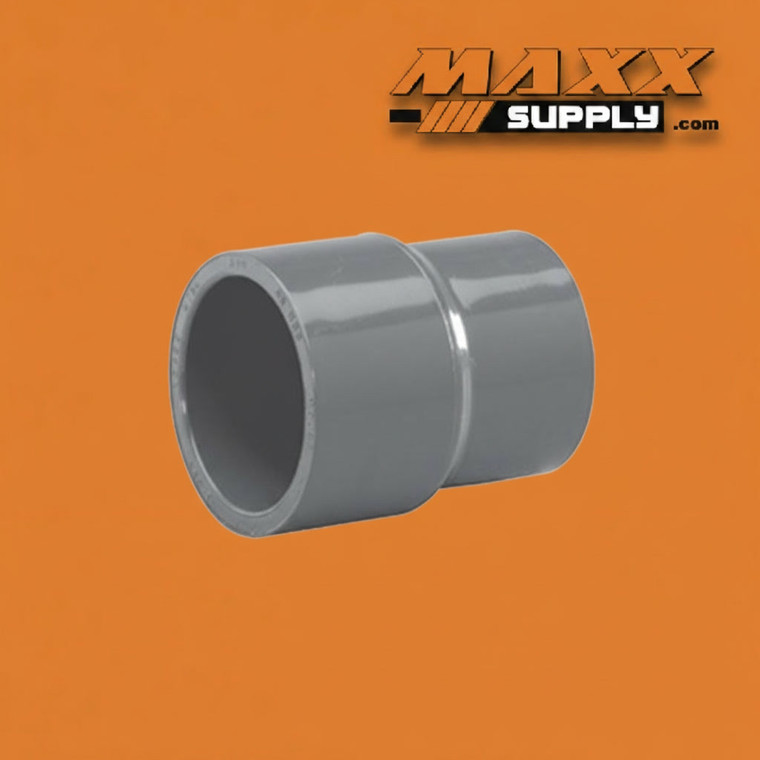

Reduced Coupling Socket, PVC Schedule 80 1/2" x 1/4" (829-072)

This 1/2" × 1/4" Schedule 80 PVC Reducer Coupling provides a permanent, inline pipe size reduction from a 1/2" solvent-cemented PVC run to a 1/4" solvent-cemented PVC run in a single fitting. The 1/2" slip socket accepts standard 1/2" PVC pipe for solvent cement joining on the larger inlet side, while the 1/4" slip socket accepts standard 1/4" PVC pipe for solvent cement joining on the smaller outlet side. Both connections are permanent, chemically fused solvent-cemented joints — the reducer coupling accomplishes both the inline pipe joining function and the two-step pipe size transition in a single compact fitting installed directly in the pipe run.

The 1/2" × 1/4" size combination defines the most specialized application niche in the 829-series reducer coupling range. At 1/4", the outlet pipe size falls below the threshold of general-purpose pipe distribution and enters the domain of instrument supply lines, gauge line assemblies, laboratory process connections, and fine-bore analytical piping — applications where 1/4" Schedule 80 PVC pipe serves as the cemented structural pipe run rather than a threaded component connection. When a 1/2" solvent-welded system must transition to a 1/4" cemented pipe run at any point along the run, the 829-072 provides that two-step inline size transition directly in the pipe without requiring an intermediate tee, reducing bushing, or separate adapter fitting at the size change position.

Understanding where the 829-072 belongs requires distinguishing it from the 839-072 (1/2" × 1/4" MPT × FPT flush bushing, previously written at the same size combination). The 839-072 is a single-male-end fitting that threads into a 1/2" FPT port and presents a 1/4" FPT threaded outlet — it serves threaded port connections where a 1/2" female-threaded port must interface with a 1/4" male-threaded instrument or gauge component. The 829-072, by contrast, is a two-socket inline fitting that sits in the pipe run between a 1/2" pipe end on one side and a 1/4" pipe end on the other — it serves fully solvent-welded systems where the pipe run itself steps down from 1/2" to 1/4" pipe diameter at a defined point in the layout. Both exist at the same 1/2" × 1/4" size combination; the fitting type and system position are entirely different.

The inline reducer coupling is the most direct solution for an in-run pipe size transition. Where achieving the same 1/2"-to-1/4" transition without this fitting would require a 1/2" tee with a reducing branch, a series of reducing bushings at separate fitting positions, or a bell reducer at a fitting body, the 829-072 accomplishes the complete two-step size change at the coupling body itself — sitting in the pipe run between the two pipe ends and performing the size transition without branching, threading, or adding intermediate fittings at the transition point.

In the solvent-welded Schedule 80 systems where the 829-072 is specified, the 1/4" downstream pipe run typically serves instrument supply branches approaching gauge manifolds, monitoring stations, or analytical instrument assemblies where the full cemented run — rather than a threaded connection — is the required downstream configuration. These are system designs where the instrument supply piping is a cemented PVC pipe assembly from the main header all the way to the instrument connection point, and the size transition from the 1/2" supply header to the 1/4" instrument branch pipe occurs at a coupling in the run rather than at a bushing in a port face.

The elevated pressure rating at this small-bore size — reflecting the significantly higher pressure capacity of fine-bore Schedule 80 PVC fittings — ensures that the reducer coupling is not the limiting pressure component in high-pressure instrument supply and fine-bore process piping where system pressures may significantly exceed the ratings typical of larger-bore Schedule 80 fittings at the same schedule.

Maintaining schedule consistency through the size transition is important in Schedule 80 systems. Using a Schedule 80 reducer coupling at the 1/2"-to-1/4" transition preserves full pressure rating continuity at both socket joints — ensuring neither the 1/2" socket end nor the 1/4" socket end introduces a rating discontinuity at the size change point in the Schedule 80 system.

Manufactured in dark gray Schedule 80 PVC, this reducer coupling delivers the wall thickness and mechanical strength required in industrial, chemical, and commercial pressure piping where Schedule 40 ratings are insufficient. PVC's broad chemical resistance covers acids, bases, salts, chlorine, and most common process and instrument fluids, providing long service life in corrosive environments where metal couplings would degrade or contaminate fine-bore instrument lines. NSF/ANSI 61 listing confirms suitability for potable water contact.

Rated to 850 psi at 73°F (governed by the 1/2" socket end), this coupling handles the full range of pressures encountered in commercial and industrial small-bore Schedule 80 PVC systems. Two separate solvent-cemented joints must be made at installation — one at the 1/2" socket and one at the 1/4" socket. For both joints, clean and dry each pipe end and socket interior before application. Apply purple PVC primer to all mating surfaces. Apply a uniform coat of Schedule 80 PVC solvent cement to both the pipe end and socket interior at each joint before inserting. Hold each joint with a slight quarter-turn twist for 30 seconds to prevent pushback. Confirm the directional orientation of the coupling before cementing — the 1/2" socket must be oriented toward the larger-diameter pipe run and the 1/4" socket toward the smaller-diameter continuation; at this small fitting size, the two sockets are visually distinct but confirming orientation before committing the first joint prevents the reversal error. Stagger the two joints where possible and allow full cure time per the cement manufacturer's temperature and humidity guidelines before pressurizing. Apply published pressure derating factors for service temperatures above 73°F.

Specifications:

Industries & Applications:

• Instrument Supply & Gauge Line Piping — Provides an inline, all-cement pipe size reduction from a 1/2" Schedule 80 PVC instrument supply run to a 1/4" cemented gauge line or instrument supply branch where the downstream instrument connection is reached via a cemented 1/4" PVC pipe run rather than a threaded component — the defining application for the 1/2" × 1/4" all-socket reducer coupling given the near-exclusive use of 1/4" PVC pipe in instrument supply and gauge line assemblies in fully cemented Schedule 80 systems
• Industrial Process Piping — Reduces a 1/2" Schedule 80 PVC solvent-welded process line to a 1/4" cemented continuation at inline size transition points in chemical processing, water treatment, and manufacturing facility piping where the 1/4" downstream pipe run is a cemented PVC assembly rather than a threaded connection and the size change occurs at a coupling body in the run rather than at a fitting port face
• Chemical Dosing & Fine-Bore Distribution — Provides an inline solvent-cemented size reduction from a 1/2" chemical feed run to a 1/4" fine-bore distribution branch in fully cemented Schedule 80 chemical dosing assemblies where the 1/4" pipe run carries the fine-bore dosing flow from the 1/2" supply header to the injection point through a cemented pipe run assembly
• Laboratory & Analytical Process Piping — Transitions a 1/2" Schedule 80 PVC solvent-welded supply run to a 1/4" cemented pipe assembly at laboratory process connection points, analytical instrument sample conditioning assemblies, and fine-bore laboratory distribution headers where the 1/4" pipe run is a permanently cemented PVC assembly within a fully solvent-welded Schedule 80 laboratory piping system
• Water & Wastewater Treatment — Reduces a 1/2" Schedule 80 PVC process header or instrument supply main to a 1/4" cemented pipe continuation at monitoring station supply branches, fine-bore sampling line transitions, and instrument supply size reduction points in municipal and industrial water treatment facilities where the 1/4" downstream pipe run is a cemented pipe assembly connecting to monitoring or instrument assemblies
• Commercial Plumbing & Mechanical Monitoring — Provides an inline all-cement size transition from a 1/2" Schedule 80 PVC supply run to a 1/4" cemented pipe branch at pressure monitoring supply connections, fine-bore instrument supply runs, and small-bore analytical connection piping in building mechanical room and utility system piping where the downstream 1/4" pipe run is a cemented assembly within a fully solvent-welded Schedule 80 system
• HVAC & Mechanical Systems — Installed at 1/2"-to-1/4" inline pipe size transition points on Schedule 80 PVC cooling tower chemical feed distribution lines, treated water fine-bore monitoring supply branches, and instrument supply runs where the 1/4" downstream pipe run is a cemented PVC assembly within a fully solvent-welded mechanical system requiring Schedule 80 pressure performance through the size reduction coupling
