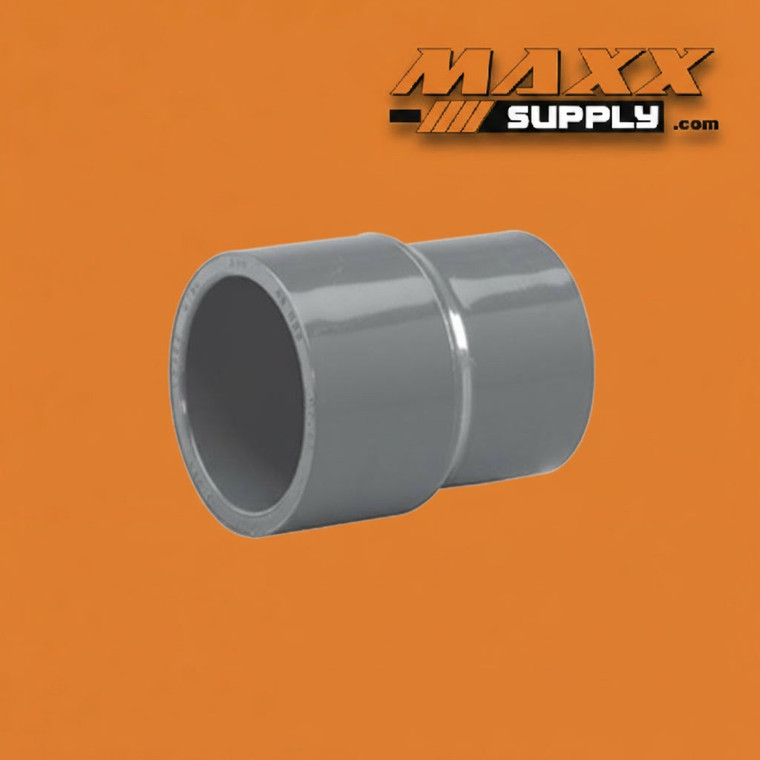

Reduced Coupling Socket, PVC Schedule 80 3/8" x 1/4" (829-052)

This 3/8" × 1/4" Schedule 80 PVC Reducer Coupling provides a permanent, inline pipe size reduction from a 3/8" solvent-cemented PVC run to a 1/4" solvent-cemented PVC run in a single fitting. The 3/8" slip socket accepts standard 3/8" PVC pipe for solvent cement joining on the larger inlet side, while the 1/4" slip socket accepts standard 1/4" PVC pipe for solvent cement joining on the smaller outlet side. Both connections are permanent, chemically fused solvent-cemented joints — the reducer coupling accomplishes both the inline pipe joining function and the one-step size transition in a single compact fitting installed directly in the pipe run.

The 3/8" × 1/4" size combination is among the most specialized configurations in the 829-series reducer coupling range — and intentionally so. Both pipe sizes are small-bore by any standard, operating in the domain of instrument supply lines, gauge line assemblies, fine-bore analytical piping, and small-bore process connections rather than primary pipe distribution runs. The 3/8" inlet pipe serves instrument manifold supply runs, gauge line headers, and fine-bore process branches; the 1/4" outlet pipe serves the instrument supply line, individual gauge connection run, or fine-bore branch that draws from that 3/8" supply. The 829-052 sits at the transition point between these two instrument-scale pipe sizes in a fully solvent-welded Schedule 80 PVC assembly, performing the one-step size change inline at the coupling body without any threaded interface, port connection, or intermediate adapter fitting at the transition point.

The 3/8" × 1/4" inline reducer coupling must be distinguished from the 839-052 (3/8" × 1/4" MPT × FPT flush bushing, previously written at the same size combination). The 839-052 is a single-male-end fitting that threads into a 3/8" FPT threaded port and presents a 1/4" FPT threaded outlet — it serves threaded port connections where a 3/8" female-threaded port must interface with a 1/4" male-threaded instrument or gauge component. The 829-052 is a two-socket inline coupling that sits between two plain pipe ends in a cemented pipe run — it serves fully solvent-welded systems where the pipe run itself transitions from 3/8" to 1/4" pipe diameter at a defined point in the layout. Both exist at the 3/8" × 1/4" size combination; the fitting type, system position, and application context are entirely different.

Within the 829-series reducer coupling range, the 829-052 occupies the finest-bore position alongside the 829-072 (1/2" × 1/4"). Both share the 1/4" outlet pipe size — confirming the near-exclusive association of 1/4" slip socket fittings with instrument supply and gauge line applications in fully cemented Schedule 80 systems. The distinction between them lies at the inlet: the 829-072 steps down from a 1/2" inlet — a more common small-bore pipe size encountered across general small-bore distribution and branch supply runs — while the 829-052 steps down from a 3/8" inlet that is itself already in the specialized instrument supply pipe size range. The 829-052 operates entirely within the fine-bore instrument piping niche on both sides of the size transition, serving system layouts where both the upstream 3/8" run and the downstream 1/4" continuation are instrument supply or gauge line pipe assemblies rather than general-purpose distribution piping.

The one-step reduction from 3/8" to 1/4" — the minimum size step between two adjacent pipe sizes — means the 829-052 produces the smoothest possible hydraulic transition in the fine-bore reducer coupling range. At instrument supply pressures and the low flow velocities typical of gauge line and instrument piping, this minimal size differential results in negligible hydraulic disruption at the coupling body — a consideration in pressure-sensitive instrument supply lines where maintaining consistent, undisturbed pressure from the supply header to the instrument connection is a design requirement.

At these fine-bore sizes, the Schedule 80 pressure rating is substantially elevated relative to larger pipe sizes — the ~1300 psi rating at 3/8" reflects the significantly higher pressure capacity of small-bore Schedule 80 PVC fittings and ensures that the reducer coupling is not the pressure-limiting component in high-pressure instrument supply headers and fine-bore process connections where system pressures may approach or exceed the rated capacities of larger-bore fittings at the same schedule.

Manufactured in dark gray Schedule 80 PVC, this reducer coupling delivers the wall thickness and mechanical strength required in industrial, chemical, and commercial pressure piping where Schedule 40 ratings are insufficient. PVC's broad chemical resistance covers acids, bases, salts, chlorine, and most common process and instrument fluids, providing long service life in corrosive environments where metal couplings would degrade or introduce contamination into fine-bore instrument lines. NSF/ANSI 61 listing confirms suitability for potable water contact.

Rated to approximately 1300 psi at 73°F (governed by the 3/8" socket end), this coupling handles the full range of pressures encountered in fine-bore Schedule 80 PVC instrument supply and process piping systems. Two separate solvent-cemented joints must be made at installation — one at the 3/8" socket and one at the 1/4" socket. For both joints, clean and dry each pipe end and socket interior before application. Apply purple PVC primer to all mating surfaces. Apply a uniform coat of Schedule 80 PVC solvent cement to both the pipe end and socket interior at each joint before inserting. Hold each joint with a slight quarter-turn twist for 30 seconds to prevent pushback. Confirm the directional orientation of the coupling before cementing — the 3/8" socket must be oriented toward the larger upstream pipe run and the 1/4" socket toward the smaller downstream continuation; at this very small fitting size the two sockets are close in physical dimension and confirming orientation before committing the first joint prevents the reversal error that would require cutting out and replacing the fitting. Stagger the two joints where possible and allow full cure time per the cement manufacturer's temperature and humidity guidelines before pressurizing. Apply published pressure derating factors for service temperatures above 73°F.

Specifications:

Industries & Applications:

• Instrument Supply & Gauge Line Piping — Provides an inline, all-cement one-step pipe size reduction from a 3/8" Schedule 80 PVC instrument supply run to a 1/4" gauge line or individual instrument supply branch where both upstream and downstream pipe runs are cemented PVC assemblies — the defining and primary application for the 3/8" × 1/4" all-socket reducer coupling given the near-exclusive use of both 3/8" and 1/4" PVC pipe in instrument supply and gauge line piping within fully cemented Schedule 80 systems
• Industrial Process Piping — Reduces a 3/8" Schedule 80 PVC solvent-welded instrument supply run or fine-bore process branch to a 1/4" cemented continuation at inline size transition points in chemical processing, water treatment, and manufacturing facility piping where both the upstream and downstream pipe runs are cemented PVC assemblies and the size change occurs at a coupling body in the run
• Gauge Line Distribution — Transitions the 3/8" cemented gauge line supply header to individual 1/4" gauge connection runs at manifold supply distribution points in instrument rack assemblies, panel-mounted gauge arrays, and monitoring station connection headers where the fine-bore cemented PVC piping steps down from the 3/8" distribution run to individual 1/4" gauge supply branches within a fully cemented Schedule 80 instrument supply system
• Chemical Dosing & Fine-Bore Process Piping — Provides an inline solvent-cemented one-step size reduction from a 3/8" fine-bore chemical dosing supply run to a 1/4" cemented downstream continuation in fully cemented Schedule 80 chemical dosing assemblies where the fine-bore process requires the size transition within the cemented pipe run rather than at a threaded fitting port
• Laboratory & Analytical Process Piping — Transitions a 3/8" Schedule 80 PVC solvent-welded laboratory supply run to a 1/4" cemented pipe assembly at sample conditioning distribution points, fine-bore laboratory process connections, and analytical instrument supply transitions where the downstream 1/4" pipe run is a permanently cemented PVC assembly within a fully solvent-welded Schedule 80 laboratory piping system
• Water & Wastewater Treatment — Reduces a 3/8" Schedule 80 PVC instrument supply main or fine-bore monitoring branch to a 1/4" cemented pipe continuation at individual monitoring point supply connections, fine-bore sampling line transitions, and instrument supply size reduction points in municipal and industrial water treatment facilities where both pipe runs are cemented PVC assemblies in a fully solvent-welded instrument supply system
• HVAC & Mechanical Monitoring Systems — Installed at 3/8"-to-1/4" inline pipe size transition points on Schedule 80 PVC fine-bore instrument supply runs, cooling tower chemical monitoring branches, and treated water instrument supply lines where the 1/4" downstream pipe run is a cemented PVC assembly within a fully solvent-welded mechanical monitoring system requiring Schedule 80 pressure performance through the inline size reduction coupling
