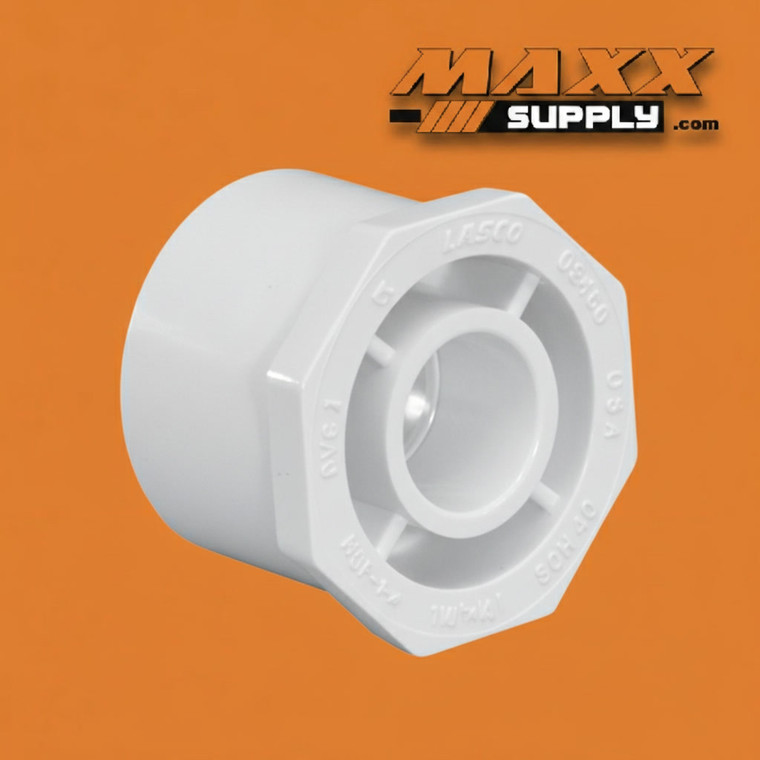

Reducer Bushing, Slip x Slip PVC Schedule 40 12" x 8" (437-668)

The 437-668 is a 12" x 8" Schedule 40 PVC reducer bushing with a slip spigot (male slip) on the 12" end and a slip socket on the 8" end. The reducer bushing's core advantage over a full reducing coupling is its compact, single-piece construction: the 12" spigot end inserts directly into any compatible 12" slip socket fitting — a tee, elbow, coupling, valve, or equipment connection — while the 8" socket accepts the downstream pipe or fitting, accomplishing the full diameter reduction within the length of a single fitting rather than requiring a separate coupling or reducer between two fittings.

At a 12" to 8" reduction, this is a substantial step-down fitting serving large-diameter commercial and industrial piping systems. The four-inch differential in nominal pipe size represents a meaningful flow transition — from a high-volume 12" main down to an 8" lateral or secondary header — making the 437-668 a practical choice in trunk-and-branch distribution architecture, pump discharge transitions, equipment inlet connections, and manifold assemblies where space efficiency and reduced joint count are both priorities.

Both ends use solvent-weld connections bonded with heavy-bodied PVC solvent cement, the recommended grade at large diameters where socket depth and cement coverage area are significantly greater than small-bore applications. The spigot end is machined to IPS outside diameter tolerances for a precise fit in any 12" Schedule 40 slip socket, and the 8" socket accepts standard IPS-dimension Schedule 40 PVC pipe or fittings. Manufactured from virgin PVC compound to ASTM D2466, the 437-668 carries the white color standard for Schedule 40 fittings and is NSF/ANSI 61 listed for potable water service.

Specifications:

Industries & Applications:

• Municipal Water Distribution — Compact inline reductions from 12" trunk mains to 8" zone headers and service laterals in water distribution systems; bushing configuration minimizes fitting count and overall assembly length compared to a full reducing coupling
• Large-Scale Irrigation & Agriculture — Step-down transitions from 12" irrigation supply mains to 8" zone laterals, pivot system feed lines, and manifold headers on high-volume agricultural and commercial landscape installations
• Industrial Process Piping — Inline diameter reductions on process water, cooling water, and plant utility fluid headers where a compact, solvent-weld bushing eliminates the need for a separate coupling and reducer combination
• Pump Station & Equipment Connections — Discharge or inlet transitions where pump flange adapters, valve bodies, or equipment sockets are a different diameter than the connecting main; the spigot end inserts directly into existing 12" socket hardware
• Stormwater & Drainage Management — Gravity-flow system diameter reductions where a 12" collection main transitions to an 8" conveyance run; smooth PVC interior minimizes friction losses at the transition point
• Water & Wastewater Treatment — Distribution header step-downs in treatment plant piping where inline bushing reductions consolidate fitting assemblies and reduce potential leak points on critical process lines
• Aquaculture & Recirculating Systems — Flow distribution transitions on large recirculating system headers and manifolds where 12" supply lines feed 8" zone or return circuits
• Fire Suppression & Site Utility — Underground and above-ground diameter transitions on commercial and campus-scale fire protection mains and site utility water distribution systems
• Chemical Processing & Manufacturing — Corrosion-resistant inline reductions on large-diameter chemical distribution and process fluid headers where compact bushing construction is preferred over multi-piece reducing assemblies
