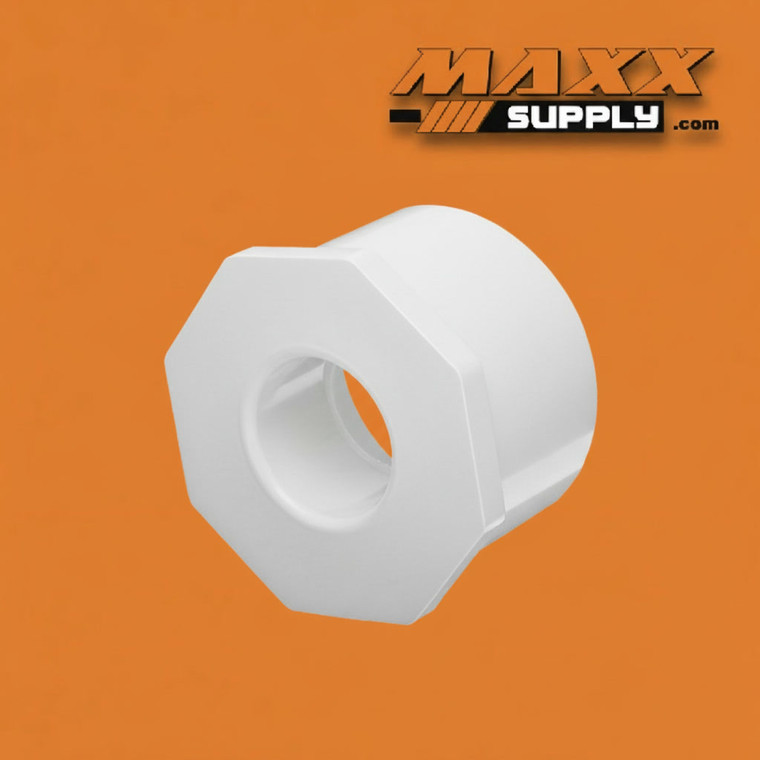

Reducer Bushing, Spigot x Slip PVC Schedule 40 5" x 3" (437-488)

The 437-488 is a PVC Schedule 40 reducer bushing that steps a 5" socket connection down two full pipe sizes to accept 3" pipe using a spigot × slip end configuration. The 5" spigot (male plain end) inserts directly into any existing 5" socket fitting — a tee, coupling, cross, or other Schedule 40 socket connection — while the 3" slip socket on the opposite end receives 3" IPS pipe for a standard solvent-cement joint.

As with all reducer bushings, the large-end geometry is male — the 5" spigot nests inside an existing fitting socket rather than acting as a standalone inline connector. This makes the 437-488 the right choice when a size reduction is needed at a fitting outlet or branch port rather than along a straight pipe run, avoiding the need for an additional reducing coupling or spool piece in the assembly.

The two-step reduction from 5" to 3" in a single fitting is a meaningful efficiency advantage in applications where intermediate sizing isn't required. Rather than stepping 5" to 4" and then 4" to 3" using two separate bushings and the fittings to support them, the 437-488 accomplishes the full transition at a single socket — reducing installed component count, potential leak points, and overall assembly length. That said, system designers should evaluate flow velocity through the reduction, as a two-step drop in a single fitting creates a more abrupt cross-sectional area change than a staged approach and may be a consideration in high-flow or low-turbulence-sensitive applications.

At 5" × 3", both ends of this fitting fall into large-diameter territory where solvent cement technique is critical. All mating surfaces should be cleaned, primed with a compatible PVC primer, and coated with a heavy-bodied PVC solvent cement rated for large-diameter schedule pipe. Full circumferential coverage is essential — at these diameters, partial contact can leave unbonded zones that compromise joint integrity under pressure. Fittings should be aligned immediately after joining and held firmly for a minimum of 30 to 60 seconds while the initial bond sets. Full cure time per cement manufacturer specifications must be observed before pressurizing, particularly at the larger 5" spigot end.

Manufactured from rigid PVC Type I, Grade I (Cell Classification 12454) to ASTM D2466, the 437-488 delivers broad chemical resistance to acids, bases, salts, and many industrial fluids. NSF/ANSI 61 certification confirms suitability for potable water contact. The 5" spigot end governs the pressure rating for the assembly.

Specifications:

Industries & Applications:

• Municipal Water & Wastewater Systems — Two-step diameter reductions at fitting outlets, tee branches, and junction structures in water distribution and collection infrastructure where a 5" to 3" transition is required without intermediate sizing
• Industrial & Chemical Processing — Aggressive header-to-branch reductions in corrosive service lines where eliminating intermediate fittings reduces potential leak points and simplifies skid or manifold assembly
• Irrigation & Agricultural Infrastructure — Step-down connections at tee outlets and mainline fittings in large-scale systems where 5" supply mains feed 3" lateral or zone piping directly
• Drainage & Stormwater Systems — Outlet reductions at junction fittings in gravity drainage networks, stormwater retention structures, and conveyance piping where two-size step-downs occur at a single fitting port
• Commercial Plumbing & Mechanical — Diameter reductions at existing 5" socket fittings during system modification or capacity-right-sizing work where 3" downstream service lines are already in place
• Swimming Pool & Aquatic Facility Piping — Reducing large recirculation or backwash headers to 3" equipment feed, filter inlet, or return lines at a single fitting connection point
