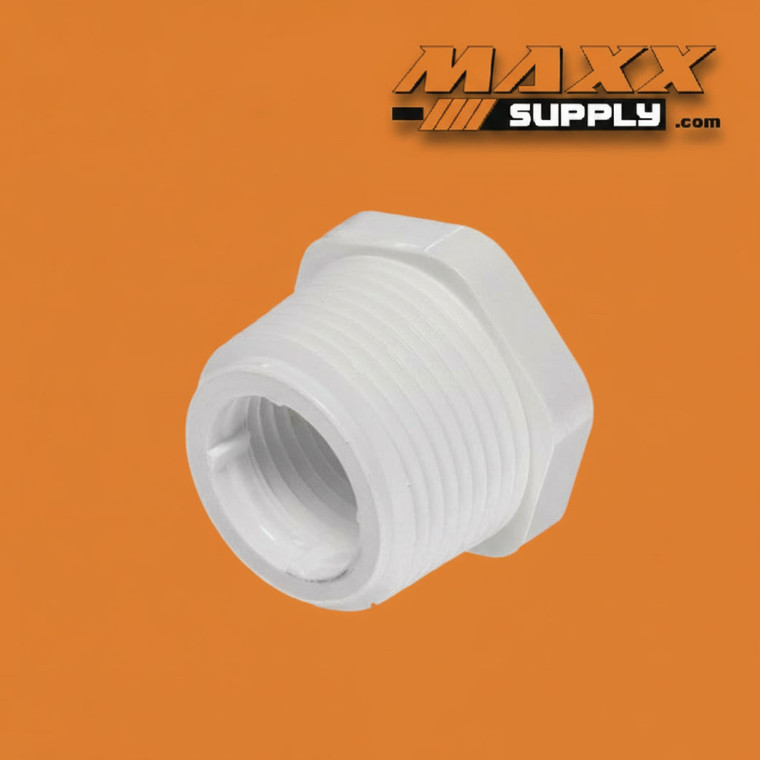

Reducer Bushing Threaded, MPT x FPT PVC Schedule 40 1-1/2" x 2" (439-198)

This 2" x 1-1/2" Schedule 40 PVC Hex Bushing (MPT x FPT) provides a compact, inline solution for reducing a 2" female-threaded port down to a 1-1/2" male-threaded connection in commercial and light industrial PVC piping systems. Constructed in white Schedule 40 PVC with a hexagonal shoulder for wrench engagement during installation, it delivers the corrosion resistance and chemical compatibility required across a wide range of fluid handling applications where a 2" female-threaded port must be reduced to accept a 1-1/2" male-threaded fitting, nipple, valve, or equipment connection without additional transition hardware.

The 2" MPT exterior threads directly into any standard 2" FPT or FIP female-threaded fitting, valve body, pump port, or equipment connection, while the 1-1/2" FPT interior accepts any standard 1-1/2" male NPT-threaded pipe end, nipple, or fitting for a pressure-tight mechanical connection when made up with thread sealant or PTFE tape. The hexagonal shoulder between the two threaded ends provides a wrench flat for controlled make-up torque — an important feature at this larger diameter where hand-tight engagement alone may not achieve sufficient thread engagement for a reliable pressure seal. This MPT x FPT hex bushing is the all-threaded approach to inline size reduction and is the correct choice when both the upstream female port and the downstream male component are threaded, eliminating the need for a socket tee, separate adapter, or additional threaded nipple at the reduction point.

Rated to 280 psi at 73°F (governed by the 2" MPT end), this bushing is suited for standard commercial and light industrial water distribution and irrigation service within its pressure class. Its PVC composition provides excellent resistance to corrosion, scale, chlorinated water, and a broad range of chemical exposures, making it a reliable long-term alternative to metal hex bushings in moisture-prone or chemically active environments. NSF/ANSI 61 listing confirms suitability for potable water contact.

Install using a quality pipe thread sealant or PTFE tape on both the 2" MPT threads and the 1-1/2" male NPT threads of the mating downstream component before engagement. Use the hex shoulder with an appropriately sized wrench to achieve proper make-up torque on the 2" MPT end — hand pressure alone is typically insufficient at this diameter for a reliable pressure seal. Avoid over-torquing — PVC threads require hand-tight plus one to two turns beyond wrench-tight; excessive force can crack the fitting body or damage the receiving female threads. Derate pressure ratings for elevated temperatures per published derating curves.

Specifications:

Industries & Applications:

• Irrigation & Water Distribution — Reduces 2" female-threaded valve bodies, pump discharge ports, filter housing inlets, and manifold connections to 1-1/2" male-threaded nipples and fittings in agricultural and municipal irrigation pump stations and distribution assemblies where a compact single-fitting all-threaded reduction is preferred over a multi-piece transition
• Commercial Plumbing — Adapts 2" female-threaded ports on valves, manifold bodies, and distribution assemblies to 1-1/2" male-threaded branch connections in commercial building water supply systems where all-threaded PVC construction is specified or preferred at the reduction point
• Industrial Process Piping — Reduces 2" female-threaded ports on pump bodies, valve assemblies, flow meters, and equipment inlets to 1-1/2" threaded connections in water treatment, chemical processing, and manufacturing facilities where an all-threaded compact reduction preserves assembly integrity without introducing socket joints
• Chemical Handling — Provides a corrosion-resistant all-threaded inline reduction in systems conveying acids, caustics, fertilizer solutions, and other fluids incompatible with metal hex bushings, particularly where 2" female-threaded pump and valve ports must interface with 1-1/2" male-threaded distribution components
• Water Treatment & Aquaculture — Used at filter housing ports, pump connection assemblies, and treatment equipment interfaces where a 2" female-threaded port must be reduced to a 1-1/2" male-threaded component in a compact all-threaded fitting body with NSF/ANSI 61 compliance
• HVAC & Mechanical Systems — Reduces 2" female-threaded ports on cooling tower pump assemblies, chilled water distribution valve bodies, and chemically treated water system equipment interfaces to 1-1/2" male-threaded connections within the Schedule 40 pressure rating class
