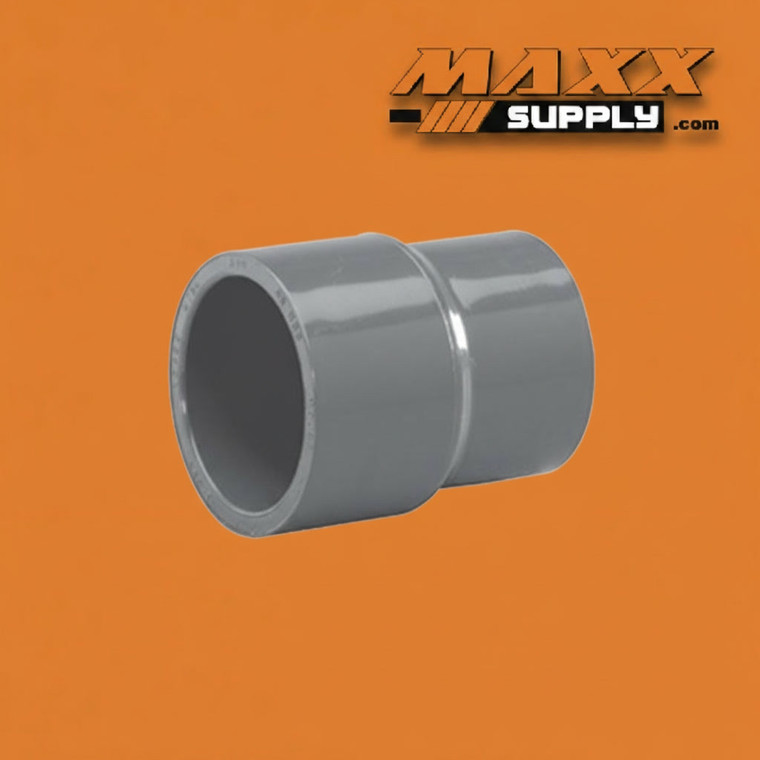

Reducer Coupling, Slip x Slip PVC Schedule 80 1" x 3/4" (829-131)

This 1" × 3/4" Schedule 80 PVC Reducer Coupling provides a permanent, inline pipe size reduction from a 1" solvent-cemented PVC run to a 3/4" solvent-cemented PVC run in a single fitting. The 1" slip socket accepts standard 1" PVC pipe for solvent cement joining on the larger inlet side, while the 3/4" slip socket accepts standard 3/4" PVC pipe for solvent cement joining on the smaller outlet side. Both connections are permanent, chemically fused solvent-cemented joints — the reducer coupling accomplishes both the inline pipe joining function and the pipe size step-down in a single compact fitting installed directly in the pipe run.

Understanding the distinction between a reducer coupling and an equal coupling clarifies where the 829-131 belongs in a Schedule 80 PVC system. An equal coupling — such as the 829-012 (1-1/4") or 829-015 (1-1/2") in this series — joins two sections of pipe at the same diameter, extending the run without changing pipe size. The reducer coupling joins two pipe sections of different diameters, transitioning the run from the larger 1" pipe on one side to the smaller 3/4" pipe on the other. This size transition function is what the reducer coupling provides that neither an equal coupling nor a bushing alone can accomplish as directly: the reducer coupling is an inline, two-socket fitting that sits in the pipe run and performs the size change at the coupling body itself, without requiring an intermediate equal coupling plus a separate reducing bushing, or a bell reducer at a separate fitting position, to achieve the same size transition.

The one-step reduction from 1" to 3/4" is among the most common pipe size transitions in commercial and industrial Schedule 80 PVC systems. The 1" pipe size serves process headers, water distribution mains, equipment supply connections, and secondary distribution runs; the 3/4" pipe size serves branch supply lines, equipment feed connections, instrument supply mains, and secondary zone distribution lines that draw from those 1" headers. The point in the piping layout where a 1" run must transition to a 3/4" branch or secondary run is a routine design feature — and wherever that transition occurs along a straight inline pipe run, the 829-131 reducer coupling is the most direct single-fitting solution.

The reducer coupling should be distinguished from the reducing bushing at the same size combination. The 839-131 (1" × 3/4" MPT × FPT flush bushing) is a compact threaded fitting that reduces a 1" female-threaded port to a 3/4" threaded outlet at a port face — it serves threaded system connections. The 829-131 reducer coupling is an inline, dual-socket fitting for solvent-welded pipe runs — it sits in the pipe run between two plain pipe ends, one on each side, and performs the size change as an inline continuity fitting. Both exist at 1" × 3/4" Schedule 80 and may appear in the same system, but they serve entirely different positions and functions in the piping layout.

In Schedule 80 systems, maintaining schedule consistency through size transitions is important. Using a Schedule 80 reducer coupling at the 1"-to-3/4" transition point preserves full pressure rating continuity at the size change joint — ensuring that neither the 1" socket joint nor the 3/4" socket joint introduces a rating discontinuity at the transition point in the Schedule 80 system.

Manufactured in dark gray Schedule 80 PVC, this reducer coupling delivers the increased wall thickness and mechanical strength required in industrial, chemical, and commercial pressure piping where Schedule 40 ratings are insufficient. PVC's broad chemical resistance covers acids, bases, salts, chlorine, and most common process fluids, providing long service life in corrosive environments where metal couplings would degrade or introduce contamination. NSF/ANSI 61 listing confirms suitability for potable water contact.

Rated to 450 psi at 73°F (governed by the 1" socket end), this coupling handles standard to elevated pressure service across a wide range of fluid handling applications. Two separate solvent-cemented joints must be made at installation — one at the 1" socket and one at the 3/4" socket. For both joints, clean and dry each pipe end and socket interior before application. Apply purple PVC primer to all mating surfaces — both pipe ends and both socket interiors. Apply a uniform coat of Schedule 80 PVC solvent cement to both the pipe end and socket interior at each joint before inserting. Hold each joint with a slight quarter-turn twist for 30 seconds to prevent pushback. Note the directional orientation of the coupling before cementing — the 1" socket must be oriented toward the larger-diameter pipe run and the 3/4" socket toward the smaller-diameter continuation; this cannot be corrected after the joints are cured. Stagger the two joints where possible and allow full cure time per the cement manufacturer's temperature and humidity guidelines before pressurizing. Apply published pressure derating factors for service temperatures above 73°F.

Specifications:

Industries & Applications:

• Industrial Process Piping — Provides an inline one-step pipe size reduction from a 1" Schedule 80 PVC process header or distribution run to a 3/4" branch continuation in chemical processing, water treatment, and manufacturing facility piping where the system layout requires a step-down from the primary 1" header to a 3/4" secondary run or equipment feed line; the reducer coupling accomplishes the size change at the coupling body in the pipe run without a separate bushing or additional fitting at the transition point
• Commercial Plumbing — Steps down a 1" Schedule 80 PVC water supply main or secondary header to a 3/4" branch supply run in mechanical room and building water distribution systems where the pipe size transitions from the 1" distribution line to a 3/4" fixture supply branch or zone supply line within the solvent-welded system layout
• Water & Wastewater Treatment — Reduces a 1" Schedule 80 PVC process header to a 3/4" secondary distribution run at zone supply transitions, equipment feed branch points, and chemical dosing secondary header connections in municipal and industrial water treatment facilities where the inline pipe size reduction is required along a straight run without intermediate tees or branch fittings at the transition point
• Chemical Handling — Delivers a corrosion-resistant, schedule-consistent inline pipe size reduction from a 1" chemical feed header to a 3/4" secondary distribution run or equipment supply branch in systems handling acids, caustics, fertilizer solutions, and aggressive process fluids where the solvent-welded Schedule 80 PVC system must step down in pipe size at defined points along the chemical distribution layout
• Irrigation & Agricultural Systems — Reduces a 1" Schedule 80 PVC pressure main or submain to a 3/4" lateral or secondary supply run in commercial irrigation, greenhouse, and agricultural water supply systems where the pipe size steps down from the 1" primary lateral to a 3/4" zone supply or drip distribution branch within the high-pressure solvent-welded system layout
• Equipment Supply & Secondary Distribution — Provides an inline Schedule 80 pipe size reduction at equipment supply branch points, pump discharge secondary headers, and instrument supply main transitions where a 1" Schedule 80 PVC supply run must step down to a 3/4" equipment feed or instrument supply continuation within the solvent-welded system without a tee, bushing, or separate reducing fitting at the size change position
• HVAC & Mechanical Systems — Used in Schedule 80 PVC cooling tower makeup lines, treated water distribution assemblies, glycol system secondary piping, and chilled water drain runs where a 1" PVC supply run must transition to a 3/4" secondary continuation at defined pipe size reduction points within a fully solvent-welded mechanical system requiring Schedule 80 pressure performance through the inline size transition
