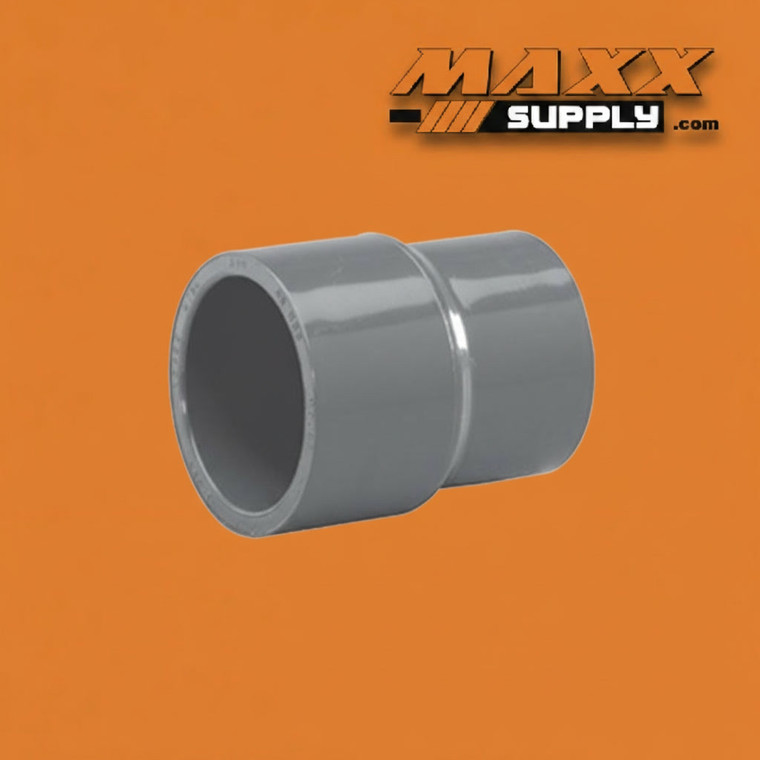

Reducer Coupling, Slip x Slip PVC Schedule 80 12" x 8" (829-668)

The 12" x 8" Schedule 80 Gray PVC Reducer Coupling (829-668, Slip x Slip) is a large-diameter, heavy-wall inline diameter reduction fitting manufactured to ASTM D2467 in Schedule 80 gray PVC — a two-port inline fitting in which one socket end accepts 12" IPS PVC pipe and the other socket end accepts 8" IPS PVC pipe, providing a single-body Schedule 80 PVC solution for transitioning a 12" primary transmission or distribution main to an 8" downstream primary distribution system in a straight inline run without branching, without direction change, without intermediate adapter fittings between the two primary pipe diameters, and without leaving the Schedule 80 gray PVC socket fitting construction standard at the primary main diameter transition point. As the moderate-ratio configuration in the standard Spears 829 series Schedule 80 PVC reducer coupling line at the 12" large-end service size — with the 8" small-end socket at 66.7% of the 12" large-end diameter and a downstream-to-upstream velocity ratio of approximately 2.25 at constant volumetric flow — the 829-668 occupies a distinctly defined position between the 829-670's most-near-equal full-flow-at-all-standard-primary-main-velocities infrastructure transition role and the more extreme configurations in the 12" Spears 829 series where the size differential places the fitting in the terminal-service and low-flow specialty connection application categories. The 829-668 is the correct fitting wherever a 12" Schedule 80 PVC primary main must reduce inline to 8" IPS — wherever the hydraulic design has established 8" IPS as the correct pipe diameter for the downstream continuing primary distribution system and the transition must be accomplished at a single inline fitting location in the primary main's straight run — subject to the explicit velocity verification requirement that distinguishes the 829-668 from the 829-670: at the 829-668's 66.7% size-reduction ratio, the downstream 8" pipe velocity at the full primary main design flow rate must be confirmed within the 8" downstream system's design velocity limits before the fitting is specified and installed at any 12" primary main inline transition location, because the approximately 2.25x velocity increase from the 12" upstream pipe to the 8" downstream pipe at constant flow places the 8" downstream velocity within or near the upper range of standard primary main design velocity limits at moderate-to-high 12" primary main design flow rates.

The 829-668's 66.7% size-reduction ratio and 2.25x downstream velocity increase define its hydraulic character and application profile in precise relationship to the other configurations in the 12" Spears 829 series. The continuity equation governs the velocity relationship: the 8" pipe's cross-sectional area is 44.4% of the 12" pipe's cross-sectional area at their respective nominal sizes, requiring the mean flow velocity in the 8" downstream pipe to be approximately 2.25 times the mean flow velocity in the 12" upstream pipe at the same volumetric flow rate passing through both sockets. At a typical 12" primary main design velocity of 3 feet per second — representative of lower-velocity large-diameter transmission main service in municipal water distribution, large commercial irrigation, and pump station primary distribution applications — the downstream 8" pipe velocity at the 829-668 transition is approximately 6.75 feet per second, a velocity that falls within standard design velocity limits for 8" Schedule 80 PVC primary distribution pipe across most commercial and municipal system design standards. At a 12" primary main design velocity of 4 feet per second, the downstream 8" velocity is approximately 9 feet per second, approaching the upper range of acceptable design velocities for 8" PVC primary distribution pipe in systems where velocity limits are established at 8 to 10 feet per second. At a 12" primary main design velocity of 5 feet per second — representative of higher-velocity transmission main service at pump station discharge headers and large commercial irrigation primary transmission mains — the downstream 8" velocity is approximately 11.25 feet per second, a velocity that exceeds standard design velocity limits for 8" PVC primary distribution pipe in most commercial and municipal system design standards and that makes the 829-668 unsuitable as a full-flow inline transition fitting at these higher primary main velocity conditions. The engineering consequence of this velocity analysis is unambiguous: the 829-668 can serve as a full-flow inline primary main transition fitting at moderate primary main design velocities where the resulting 8" downstream velocity falls within acceptable limits, but the design engineer must calculate the anticipated 8" downstream velocity explicitly from the system's design flow rate before specifying the 829-668 at any 12" primary main inline transition location — and at high-velocity primary main service conditions the 829-668's application profile shifts from full-flow inline primary main transition to reduced-flow and partial-flow inline transition applications where only a fraction of the 12" primary main's full throughput passes through the 8" downstream socket at design conditions.

This velocity-dependent application profile is the most important hydraulic specification characteristic that distinguishes the 829-668 from the 829-670 in the 12" Spears 829 series. The 829-670 (12" x 10" at 83.3%, ~1.44x velocity increase) can accept the full primary main design flow at all standard 12" primary main design velocities because the 10" downstream velocity at 1.44x the 12" upstream velocity falls within standard primary distribution velocity limits across the complete range of standard primary main design conditions. The 829-668 (12" x 8" at 66.7%, ~2.25x velocity increase) requires explicit velocity verification at the specific system's design flow rate before full-flow inline primary main transition service is confirmed — the 8" downstream velocity at the system's design flow rate must be calculated and compared to the system's design velocity limits before the 829-668 is installed as the full-flow primary main inline transition fitting at the 12"-to-8" diameter reduction point. At primary main systems where the design velocity verification confirms that the 8" downstream velocity falls within acceptable limits, the 829-668 serves the full-flow inline primary main transition role between the 12" primary transmission level and the 8" primary distribution level. At primary main systems where the design velocity verification indicates that the 8" downstream velocity at full primary main flow exceeds acceptable limits, the 829-668 serves reduced-flow and partial-flow inline transition roles, end-of-main service transitions at the 8" service level, and primary main diameter transition applications where the design flow through the 8" socket has been explicitly established at a fraction of the 12" primary main's full throughput.

The 8" IPS small-end socket on the 829-668 maintains the infrastructure-scale connection character established across all large-diameter configuration pages in this catalog. At 8" IPS, the downstream pipe connected to the 829-668's small-end socket is not a service lateral, a zone supply header, or an instrument supply run but a large-commercial primary distribution main in its own right — the same pipe diameter that serves as the standard large-commercial primary pipe in the 875-080 (8" Schedule 80 equal wye), the 875-585 (8" x 8" x 6" Schedule 80 reducing wye branch), pump station primary suction and discharge headers, municipal water distribution primary mains at the sector transmission level, large commercial irrigation primary sector transmission mains, and industrial process primary distribution trunks at the plant-wide level. The 829-668's 12" large-end socket connects to the 12" large-commercial primary transmission level — the largest standard commercial primary pipe size in the Schedule 80 PVC socket fitting line — and the 8" small-end socket connects to the 8" large-commercial primary distribution level, establishing the 829-668 as an infrastructure-to-infrastructure inline transition fitting at a moderate ratio rather than the terminal-service or instrument-supply connection role that the more extreme configurations in the 12" Spears 829 series serve. Both sides of the 829-668 transition are primary infrastructure systems requiring engineered design, formal hydraulic analysis, and primary main construction standards on both the upstream 12" and downstream 8" sides of the inline transition fitting — a character the 829-668 shares with the 829-670 and that distinguishes both from the 829-619's terminal-service role.

The 829-668 also serves the inline diameter increase role — the installation configuration in which the 8" socket is connected to the upstream 8" pipe and the 12" socket is connected to the downstream 12" primary main body, accomplishing a straight-run inline diameter increase from 8" to 12" at return header connection points, pump station suction header entry points, system interconnect locations, and primary main extension transitions where an 8" primary distribution system must connect inline to a 12" primary transmission main continuation. In the 8"-to-12" increasing installation orientation, the downstream 12" pipe velocity is approximately 44.4% of the upstream 8" pipe velocity at the same volumetric flow rate — a velocity decrease accompanied by a partial static pressure recovery at the fitting body that partially offsets the inline expansion's friction losses and reduces the pressure gradient in the downstream 12" primary transmission main relative to the upstream 8" distribution system. The increasing orientation is the hydraulically gentler of the two flow directions at the 829-668 — the flow expansion from 8" to 12" decelerates the flow and recovers a portion of the velocity head as static pressure, producing more favorable downstream conditions in the 12" pipe than the reducing orientation's velocity head conversion from the 12" inlet to the 8" outlet. Both installation orientations must be explicitly accounted for in the primary system's hydraulic analysis, with the increasing orientation's partial pressure recovery and velocity decrease included as the governing hydraulic parameters at 8"-to-12" inline expansion points. The flow orientation must be confirmed before cement application at either socket — the 12" socket connects to the 12" pipe and the 8" socket connects to the 8" pipe in both orientations, and the fitting's internal cone geometry is directional with the contraction cone oriented toward the smaller 8" socket regardless of installation orientation.

The primary specification distinction at the 829-668 — separating it from the most common alternative approach to 12"-to-8" primary main diameter transitions — is the inline two-port reducer coupling geometry versus the lateral branch geometry of the reducing tee at the 12" x 8" size combination. A Schedule 40 or Schedule 80 PVC reducing tee at 12" x 12" x 8" — configurations that include the 401-668 (12" x 12" x 8" Schedule 40 all-socket) documented in prior sessions in this catalog — maintains the primary run diameter at 12" through both straight-run ports and provides the 8" IPS lateral branch at a perpendicular third port, allowing the 12" primary main to continue at full diameter through the run ports while the 8" branch serves its distribution supply function as a perpendicular lateral takeoff. The 829-668 has no straight-run ports and no lateral branch — both sockets are inline on the same axis, and the entire upstream 12" primary connection at the fitting location transitions to the downstream 8" connection without any continuing 12" run downstream of the fitting. The selection criterion is again precisely defined: the reducing tee at 12" x 12" x 8" is the correct specification wherever the 12" primary main must continue downstream of the 8" distribution branch connection; the 829-668 is the correct specification wherever the 12" primary main terminates as the primary flow path at the fitting location and the downstream distribution system continues at 8" IPS in the same straight run — or wherever the increasing orientation serves an 8" system connection to a 12" primary main in an inline rather than lateral branch geometry. Buyers who need an 8" distribution connection at a point where the 12" primary main continues must specify the reducing tee; buyers who need the 12"-to-8" inline flow path transition in a straight continuing run must specify the 829-668. The 401-668 and the 829-668 are the two most commercially active 12"-to-8" fittings in the Schedule 40 and Schedule 80 PVC socket fitting lines at this size combination — the reducing tee at the branch junction and the reducer coupling at the inline transition — and the product pages for both should cross-reference each other prominently as the primary fitting type comparison fittings at the 12"-to-8" primary system junction decision point.

Schedule 80 gray PVC construction is the correct material specification for this fitting across every application where an inline diameter transition between 12" and 8" IPS on a Schedule 80 PVC primary main is required. The Schedule 80 wall thickness applied uniformly through the complete reducer coupling body — through the 12" large socket section, through the full transition cone body stepping down from 12" to 8" across the fitting length, and through the 8" small socket section — provides the structural integrity required to resist the combined internal pressure loading and the hydrodynamic forces associated with the velocity increase and flow contraction at the 12"-to-8" inline transition under sustained primary main operating conditions. The gray color provides the permanent, inspectable Schedule 80 material class identification at the primary main diameter transition — confirming the installed material class at the inline transition fitting where the 12" and 8" primary pipe systems meet in the same straight run and distinguishing the installed fitting from white Schedule 40 components that may be present elsewhere in the system. PVC Type 1 Grade 1 construction with cell classification 12454 per ASTM D1784 provides broad chemical resistance across water treatment chemicals, process water service, industrial utility water, and the full range of non-solvent process fluids appropriate for Schedule 80 PVC primary main service at both socket connections. Both socket ends solvent cement directly onto standard IPS Schedule 40 or Schedule 80 PVC pipe of the corresponding nominal sizes — 12" IPS schedule pipe at the large socket and 8" IPS schedule pipe at the small socket. Both the 12" large socket and the 8" small socket are large-diameter connections requiring heavy-body solvent cement rated for large-diameter Schedule 80 PVC — the 12" socket demands full large-diameter assembly discipline including pre-planned positioning of both pipe ends before any cement is applied, working time management across the full circumference of the 12" bonding surface, complete circumferential heavy-body cement coverage, and full cure time compliance before system pressurization; the 8" small socket, while smaller than the 12" socket on the same fitting body, is itself a large-diameter primary main pipe size connection whose bonding surface requires the same heavy-body cement specification, complete circumferential coverage, and full cure time compliance as the 12" socket — the 8" socket on a 12" primary main inline transition fitting carries the full system operating pressure and the complete design flow at the 8" downstream velocity, and joint integrity at the 8" socket under primary main service conditions is as operationally critical as at the 12" socket; the 12"-to-8" size differential on the 829-668 must not lead buyers to reduce cement or assembly standards at the 8" socket on the basis of its smaller size relative to the 12" large socket body. Confirm flow orientation before cement application — the 12" socket connects to the 12" pipe and the 8" socket connects to the 8" pipe in both reducing and increasing installations; the fitting's internal cone geometry is directional and must be confirmed against the system's piping layout before cement is applied at either socket. Deburr and bevel both pipe ends before cementing to ensure consistent insertion depths and complete circumferential bond lines at both socket connections.

NSF 61 certification lists this fitting for potable water contact, and NSF 14 covers compliance with applicable plastics piping material standards — making it the correct Schedule 80 PVC inline primary main diameter transition fitting for municipal water treatment and distribution systems, large potable water pump station primary headers, and large commercial and institutional water supply primary mains where NSF-listed materials are required at every fitting in the primary distribution system including inline diameter transition fittings at primary main diameter reduction and expansion points. ASTM D2467 governs Schedule 80 PVC socket fittings and defines the manufacturing, dimensional, and pressure performance requirements the 829-668 is produced to. Verify manufacturer pressure rating documentation for the specific fitting configuration before final system specification — at the 12" x 8" moderate-ratio reducer coupling configuration where the primary main design flow passes through both socket connections at velocities that must be confirmed against design limits, the governing pressure rating is determined by the larger port size (12") and the fitting's tested performance at the moderate-ratio inline transition geometry under combined pressure and flow contraction conditions, and must be confirmed against the manufacturer's published pressure-temperature rating table for SKU 829-668 before installation in systems at or near the fitting's rated pressure ceiling.

Key Features:

• Schedule 80 gray PVC reducer coupling — 12" socket x 8" socket, both slip (female socket) ends; Spears 829 series Schedule 80 PVC reducer coupling
• Moderate-ratio configuration in the standard Spears 829 series Schedule 80 PVC reducer coupling line at the 12" large-end service size — 8" small-end socket at 66.7% of 12" large-end diameter; 8" pipe cross-sectional area is 44.4% of 12" pipe cross-sectional area; approximately 2.25x downstream velocity increase at constant flow
• Downstream velocity verification is mandatory before specification — at full primary main design flow, the 8" downstream velocity is ~2.25x the 12" upstream velocity; confirm resulting 8" pipe velocity falls within system design velocity limits before specifying as full-flow primary main inline transition fitting; at moderate 12" primary main design velocities (2–3 fps) the 8" downstream velocity (4.5–6.75 fps) is within standard limits; at higher velocities (4–5 fps) the 8" downstream velocity (9–11.25 fps) requires explicit confirmation against system velocity limits
• Infrastructure-to-infrastructure inline transition at moderate ratio — connects 12" large-commercial primary transmission level to 8" large-commercial primary distribution level; both pipe systems are primary infrastructure; the same 8" primary distribution level served by the 875-080, 875-585, and complete 8" Schedule 80 primary distribution fitting ecosystem
• Bidirectional installation capability — reducing orientation (12"→8") for primary transmission main to primary distribution main transitions; increasing orientation (8"→12") for 8" system connections to 12" primary transmission main in inline rather than lateral branch geometry; confirm orientation before cement application; internal cone geometry is directional
• Inline reducer coupling vs. reducing tee selection: 829-668 where the 12" primary main terminates as the primary flow path and the full primary flow continues downstream in the 8" distribution system; 12" x 12" x 8" reducing tee (401-668 Schedule 40 or Schedule 80 counterpart) where the 12" primary main continues downstream of the 8" lateral branch connection — the 401-668 and 829-668 are the two most commercially active 12"-to-8" fittings in the PVC socket fitting line at this size combination and should be evaluated against each other at every 12"-to-8" primary system junction design decision
• Both sockets are large-diameter connections — 12" socket and 8" socket both require full heavy-body cement, large-diameter assembly discipline, and full cure time compliance; do not reduce assembly standards at the 8" socket on the basis of its smaller size relative to the 12" large socket
• Inline pressure drop must be included in primary system hydraulic analysis — velocity head change from 12" to 8" produces static pressure reduction in downstream 8" pipe; the 829-668's pressure drop is greater than the 829-670's at the same 12" upstream conditions; confirm available pressure at 8" downstream side satisfies downstream primary distribution system's minimum supply pressure at design flow
• Manufactured to ASTM D2467 — governing standard for Schedule 80 PVC socket fittings
• NSF 61 certified for potable water contact; NSF 14 listed
• Solvent cement socket connections compatible with Schedule 40 and Schedule 80 IPS pipe at both ends
• Gray color — universal Schedule 80 material class identification at the primary main inline transition point
• Cell classification PVC 12454 per ASTM D1784
• Heavy-body solvent cement required at both socket connections; full cure time compliance mandatory before pressurization
• Pressure rating: verify against manufacturer pressure-temperature table for SKU 829-668
