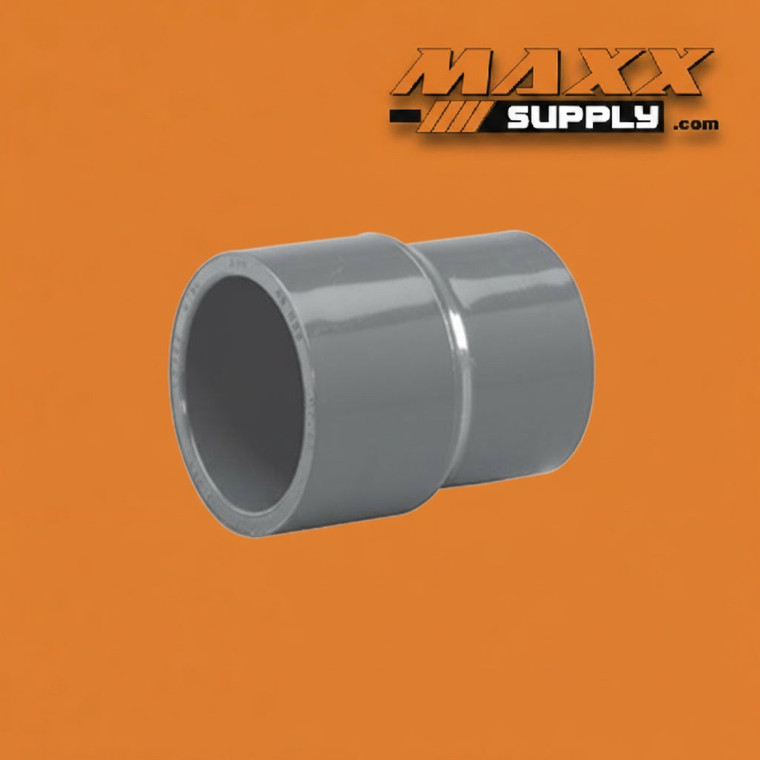

Reducing Coupling, Slip PVC Schedule 80 4" x 1-1/2" (829-419)

The 4" x 1-1/2" PVC Schedule 80 Reducing Coupling (Slip x Slip) is a heavy-duty thermoplastic inline reducer designed to transition between 4-inch and 1-1/2-inch Schedule 80 PVC pipe in a straight run. With a 4-inch slip socket on the large end and a 1-1/2-inch slip socket on the small end, this coupling installs permanently via solvent cement on both ends — creating a full-bore, pressure-tight size transition mid-run without additional fittings, elbows, or offsets in the assembly.

The 829-419 is the direct companion to the previously described 829-417 (4" x 1"), and together they form a two-size group within the 4-inch large-end reducing coupling line. The 1-1/2-inch small end of this fitting represents a half-size step up from the 1-inch configuration — a difference that is modest in dimensional terms but meaningful in application terms. A 1-1/2-inch downstream pipe carries roughly 2.25 times the cross-sectional flow area of a 1-inch pipe, which translates directly into greater downstream flow capacity, lower velocity at equivalent flow rates, and a broader range of downstream fittings, valves, and equipment that are commonly available in 1-1/2-inch connections. In systems where the 1-inch configuration of the 829-417 is insufficient to deliver the required branch or secondary circuit flow volume — chemical feed lines with higher dosing rates, moderate-capacity bypass circuits, secondary process supply lines, and drain connections that must handle meaningful flow rather than just a trickle — the 1-1/2-inch reducing coupling is the next specification step up.

As established in the 829-417 description, the reducing coupling is a standalone mid-run transition fitting — it occupies its own position in the run between a 4-inch pipe section on one side and a 1-1/2-inch pipe section on the other. This distinguishes it from a spigot bushing, which nests inside the socket of an existing fitting, and from a reducing tee, which introduces a branch connection rather than a straight inline transition. The reducing coupling is specified when the size transition must occur in open pipe at a designated mid-run point, independent of the surrounding fitting layout. At the 4" to 1-1/2" differential — a two-and-a-half nominal size step-down that reduces cross-sectional area by approximately 86% — this fitting serves the same category of application as the 829-417 but at a flow scale appropriate to a slightly higher-capacity downstream function.

The 1-1/2-inch small end is significant in the Schedule 80 fitting ecosystem. One-and-a-half inches is a widely specified size in industrial threaded and slip PVC systems — a common pump port size, a standard valve body size in chemical and irrigation service, and a frequently occurring pipe size in bypass circuits, drain lines, and secondary process feeds. A 4" x 1-1/2" reducing coupling therefore connects the large-diameter infrastructure tier of a Schedule 80 system to one of the most broadly supported downstream pipe sizes in the catalog, with a wide range of 1-1/2-inch Schedule 80 slip fittings, valves, and components available for the downstream circuit without specialty sourcing.

All slip socket connections are sized for Schedule 80 PVC pipe at their respective ends and designed for solvent cement installation per ASTM D2564 procedures. Schedule 80 PVC provides the elevated wall thickness, higher pressure rating, and chemical resistance required for the industrial environments where this fitting is most commonly specified. Manufactured to ASTM D2467 standards and compatible with Schedule 80 PVC pipe in both 4-inch and 1-1/2-inch sizes.

Specifications:

Industries & Applications:

• Chemical Processing & Feed Systems — Used in 4-inch chemical process headers where the transition to a 1-1/2-inch downstream chemical feed line, transfer circuit, or secondary process supply must occur at a mid-run point — the 1-1/2-inch small end providing greater flow capacity than the 1-inch configuration for chemical feed applications requiring higher dosing rates or transfer volumes than a 1-inch circuit can deliver
• Pump Bypass & Recirculation Circuits — Specified in pump discharge and suction assemblies where a 1-1/2-inch bypass, recirculation return, or pressure relief circuit departs from a 4-inch main at a mid-run transition point — the 1-1/2-inch small end sized to handle the bypass flow volume without the velocity increase and pressure restriction that a 1-inch outlet would impose on a higher-capacity bypass circuit
• Industrial Drain & Discharge Lines — Incorporated in 4-inch industrial process headers at designed low-point drain connections, equipment flush ports, and cleanout outlets where a 1-1/2-inch drain line provides adequate flow capacity for periodic drainage, flushing, and maintenance cycling — a common drain line size in industrial PVC systems where 1-inch drain outlets would be restrictive for practical maintenance flow rates
• Water & Wastewater Treatment — Applied in treatment plant process piping where a 4-inch Schedule 80 distribution header must transition to a 1-1/2-inch downstream supply line at a mid-run point serving a moderate-capacity dosing circuit, secondary equipment supply, or process monitoring connection requiring more flow than a 1-inch circuit provides
• Process Instrumentation & Secondary Supply Lines — Used in 4-inch Schedule 80 process mains where the transition to a 1-1/2-inch instrument supply, secondary process feed, or monitoring equipment connection must occur at a mid-run transition point independent of the surrounding fitting socket layout — the reducing coupling providing the standalone transition fitting the system requires at the specified location in the run
• Irrigation & Agricultural Systems — Specified in 4-inch Schedule 80 irrigation mains and chemical distribution headers where a 1-1/2-inch downstream circuit serves a defined irrigation zone, chemical injection manifold, or secondary supply that requires more capacity than a 1-inch connection but does not warrant a full 2-inch or larger downstream circuit given the zone's flow demand
