Reducing Tee, Slip x Slip x FPT PVC Schedule 40 1/2" x 1/2" x 1/4" (402-072)

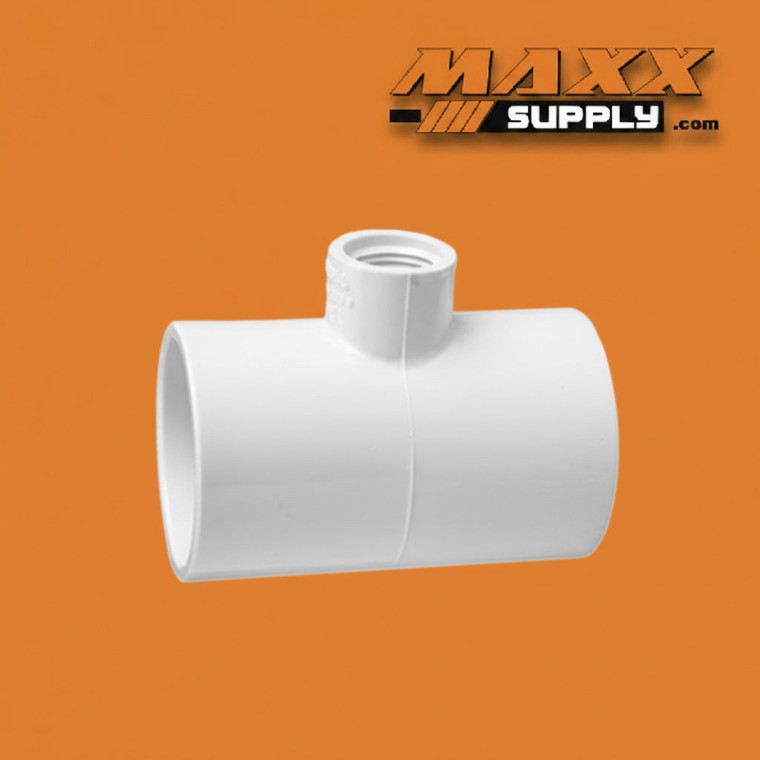

This 1/2" x 1/2" x 1/4" Schedule 40 PVC Tee (Slip x Slip x FPT) provides a three-way mixed-connection junction that incorporates a 1/4" female NPT-threaded instrument port or small-bore service connection directly into a 1/2" socket pipe run — allowing a pressure gauge, pressure transducer, temperature sensor, sampling valve, chemical injection stub, or small-bore service component to be installed permanently at any point along a 1/2" all-socket PVC assembly without interrupting the run or requiring a separate adapter assembly at the tap location. Constructed in white Schedule 40 PVC, it delivers the most commonly specified instrument port branch size — 1/4" NPT — in a compact tee body that combines an all-socket 1/2" inline run with a built-in 1/4" female-threaded instrument tap in a single fitting.

The two 1/2" slip socket run ends accept 1/2" PVC pipe for permanent solvent-cement bonds forming the continuous inline run, while the 1/4" FPT branch outlet accepts any standard 1/4" male NPT-threaded instrument fitting, pressure gauge connection, sampling valve, chemical injection nipple, sensor port, or small-bore service component for a pressure-tight mechanical connection when made up with thread sealant or PTFE tape. The 1/4" FPT outlet is the industry-standard connection size for pressure gauges, pressure transducers, temperature sensors, sampling valves, and small-bore chemical injection ports throughout commercial and industrial PVC piping systems — making this the most broadly applicable confirmed instrument tap tee entry in the 402 series 1/2" run inlet sub-series and the correct fitting wherever a standard 1/4" NPT instrument connection must be incorporated into a 1/2" socket PVC run without interrupting the run or introducing additional adapter hardware at the tap location. This entry is distinct from the adjacent 402-071 (1/2" x 1/2" x 1/8" FPT branch), which serves the more specialized micro-bore bleed, vent, and test point applications at the smallest standard NPT thread size; while both serve instrument monitoring functions, the 1/4" branch of 402-072 covers the broader industry-standard instrument connection range and is the correct choice for the vast majority of pressure gauge, transducer, sampling valve, and chemical injection tap applications encountered in commercial and industrial 1/2" socket PVC systems. It should also not be confused with the 402-074 (1/2" x 1/2" x 3/4" FPT branch bullhead, confirmed in this catalog session), which provides a larger enlarged branch for flow consolidation or distribution service rather than instrument monitoring, or with any full-size 402 series entry at the same run diameter, which provides an equal-size FPT branch for standard flow service.

Rated to approximately 600 psi at 73°F (governed by the 1/2" slip run ends), this tee is suited for standard commercial and light industrial pressure service. NSF/ANSI 61 listing confirms suitability for potable water contact.

Apply solvent cement to both the pipe end and fitting socket at each run port per ASTM D2564 procedures, inserting fully and maintaining a quarter-turn during assembly. On the 1/4" FPT branch, use PTFE tape — wrapping a minimum of two to three times in the thread direction — and confirm that the 1/4" male NPT threads of the mating instrument or service component are started by hand and seated squarely before applying final torque; at 1/4", the shallow thread engagement depth makes cross-threading a more common installation error than at larger diameters. Avoid over-torquing — PVC threads require hand-tight plus one to two turns; at 1/4", the engagement range before overtorque risk is particularly short. Allow adequate cure time on the cemented run joints before pressurizing the system, and derate pressure ratings for elevated temperatures per published derating curves.

Specifications:

Industries & Applications:

• Chemical Process Piping — Incorporates 1/4" male-threaded pressure gauge taps, pressure transducer connections, temperature sensor ports, sampling valve stubs, and small-bore chemical injection fittings directly into 1/2" socket PVC chemical distribution runs, feed lines, and manifold assemblies in chemical processing and water treatment facilities where instrument monitoring access must be built into small-bore socket runs at the industry-standard 1/4" NPT instrument connection size
• Industrial Process Piping — Provides 1/4" male-threaded pressure transducer connections, temperature sensor ports, flow meter taps, sampling valve stubs, and instrument supply connections at inline locations along 1/2" socket process water distribution, sample system, and instrument supply runs in manufacturing and laboratory facilities where the industry-standard 1/4" NPT instrument port must be incorporated into small-bore PVC socket runs throughout the distribution layout
• Irrigation & Water Distribution — Adds 1/4" male-threaded pressure monitoring taps, pressure gauge connections, and small-bore instrument stubs directly into 1/2" socket irrigation supply lines, pump station piping, and small-bore distribution runs in agricultural and residential irrigation systems where system pressure monitoring points at the industry-standard 1/4" NPT gauge connection size must be incorporated without interrupting the 1/2" socket pipe run
• Water Treatment & Aquaculture — Used at inline instrument monitoring points, chemical dosing injection stubs, sampling valve locations, and test point access positions along 1/2" socket process and distribution runs where 1/4" male-threaded pressure monitoring instruments, sampling valves, dosing ports, and treatment equipment connections must be permanently incorporated at the tee location with NSF/ANSI 61 compliance required throughout
• Laboratory & Analytical Systems — Provides a 1/4" female-threaded instrument port at inline locations along 1/2" socket PVC fluid distribution runs in laboratory, analytical, and pilot plant systems where pressure transducers, sample valves, injection ports, and instrument connections at the industry-standard 1/4" NPT size are specified throughout the small-bore distribution assembly
• Commercial Plumbing — Incorporates 1/4" male-threaded pressure gauge connections, test point stubs, and instrument taps at specific monitoring locations along 1/2" socket PVC distribution pipe runs in commercial building water systems where instrument access at the standard 1/4" NPT gauge connection size must be built into the all-socket run without a separate adapter assembly at the tap location
