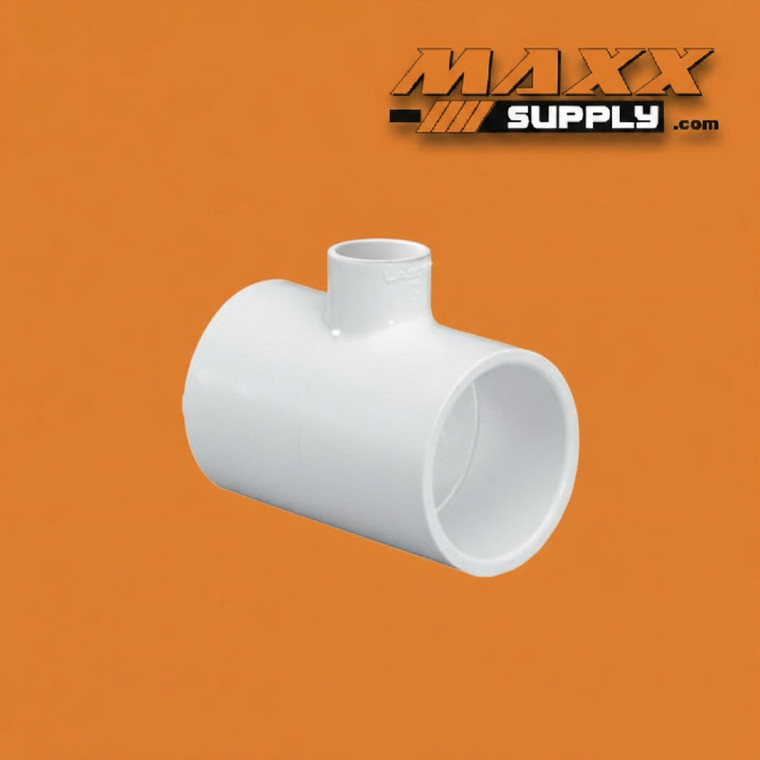

Reducing Tee, Slip x Slip x Slip Class 125 10" X 10" X 2" (C601-621)
$174.24
The 10" x 10" x 2" PVC Reducing Tee (C601-621) is a Class 125, slip-socket fitting designed for large-diameter pipeline systems that require a smaller branch takeoff without interrupting main line flow. With slip connections on the run (10" x 10") and a 2" slip branch outlet, this fitting accepts solvent-welded pipe for a permanent, leak-free joint suited to high-volume commercial and industrial installations.
Manufactured from virgin PVC compound, the C601-621 delivers excellent resistance to corrosion, chemical attack, and biological growth — making it a long-service alternative to metal tees in aggressive environments. The Class 125 pressure rating ensures dependable performance across the full range of typical low-to-medium pressure water distribution, irrigation, and process piping applications.
The 2" branch port is ideal for sampling lines, bypass feeds, instrumentation connections, or secondary distribution drops off a large main without requiring a full-size branch tee or additional reducers downstream.
Specifications:
| Specification | Details |
|---|---|
| Part Number | C601-621 |
| Material | PVC (Polyvinyl Chloride) |
| Pressure Rating | Class 125 (125 PSI @ 73°F) |
| Connection Type | Slip x Slip x Slip (Socket) |
| Run Size | 10" x 10" |
| Branch Size | 2" |
| Fitting Standard | ASTM D2466 |
| Joining Method | Solvent Cement (IPS Weld) |
| Temperature Rating | Up to 140°F (60°C) |
| Color | White/Off-White |
| NSF Listed | NSF/ANSI 61 (potable water) |
Verify current pressure-temperature derating requirements per ASTM standards for elevated temperature service.
Industries & Applications:
- Municipal Water Distribution — Large main-to-small branch takeoffs for service laterals, meters, and hydrant feeds
- Agricultural & Golf Course Irrigation — Main distribution trunk lines with 2" zone drops or fertigation injection points
- Industrial Process Piping — Chemical transfer systems with bleed-off, sampling, or bypass branch requirements
- Water & Wastewater Treatment — Plant piping with instrument tap or secondary flow branches off large mains
- Fire Suppression Supply Piping — Underground supply mains requiring a reduced branch feed to auxiliary systems
- Commercial HVAC & Chilled Water — Low-pressure chilled or condenser water mains with small-diameter branch feeds
- Aquaculture & Hatcheries — Gravity-fed or pressurized raceways requiring reduced takeoffs for individual tank feeds
