Reducing Tee, Slip x Slip x Slip PVC Schedule 40 10" x 10" x 4" (401-624)

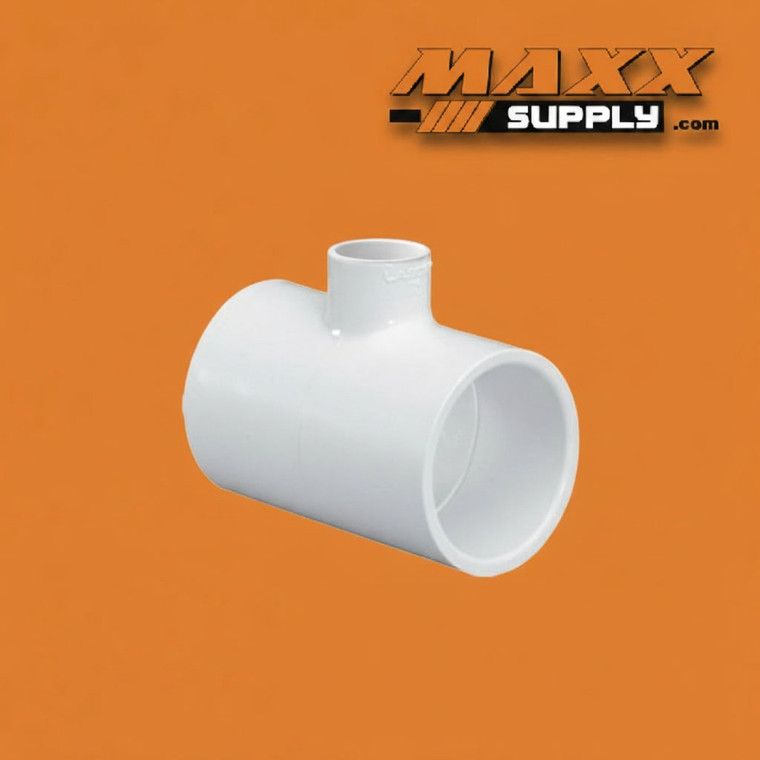

The 10" x 10" x 4" Schedule 40 White PVC Reducing Tee (401-624, Slip x Slip x Slip) is a large-diameter thermoplastic reducing tee fitting manufactured to ASTM D2466 in Schedule 40 white PVC — in which both run connections are 10" IPS slip socket ends and the branch connection is a 4" IPS slip socket end, providing a single-body Schedule 40 PVC solution for connecting a 4" IPS socket PVC branch assembly perpendicularly to a 10" Schedule 40 PVC primary run at a branch location where the 10" primary run continues at full diameter through both straight-run ports downstream of the 4" branch connection, without a saddle tap, without field fabrication, without transitioning out of Schedule 40 white PVC construction at the primary main branch point, and without interrupting the 10" primary run's continuity at the branch location. The 401-624 is the correct fitting wherever a 10" Schedule 40 PVC primary main must provide a 4" IPS socket PVC perpendicular branch connection while maintaining the full 10" primary run diameter through both run sockets — where the 4" downstream branch system is permanently bonded socket PVC construction continuing in 4" IPS socket PVC pipe and fittings from the tee's branch socket, where the primary main must continue downstream of the 4" branch at full 10" diameter serving additional primary distribution or transmission demands, and where the branch connection must be a manufactured, rated, NSF-listed, ASTM D2466-compliant Schedule 40 white PVC tee body whose 4" branch socket accepts standard 4" IPS Schedule 40 or Schedule 80 PVC pipe directly in the factory-formed female socket of the tee's branch port. Positioned between the 401-628 (10"x10"x8" at 80%) and the 401-623 (10"x10"x3" at 30%) in the Spears 401 series at the 10" run service level, the 401-624 is the intermediate-lateral secondary-distribution and large-appurtenance reducing tee of the 10" Schedule 40 PVC socket fitting ecosystem — the configuration that serves the gap between the near-equal primary infrastructure branching role of the 401-628 above it and the appurtenance-scale branching role of the 401-623 and smaller configurations below it.

The 401-624's position within the Spears 401 series all-socket reducing tee line at the 10" run service level is fully defined by the 40% branch-to-run ratio and the 4" IPS branch size's specific commercial character in the intermediate-lateral range between the two principal commercial role boundaries established by the adjacent documented configurations in the series. Above the 401-624, the 401-628's 8" branch at 80% serves near-equal primary infrastructure parallel distribution applications where both the 10" run and the 8" branch are primary infrastructure systems carrying near-equal primary flow fractions — the infrastructure-scale-to-infrastructure-scale branch role. Below the 401-624, the 401-623's 3" branch at 30% serves large-bore appurtenance, zone supply, drain, blowoff, and secondary distribution applications at the large-bore appurtenance scale boundary — the first configuration in the 10" run series where the branch pipe transitions from primary infrastructure scale to appurtenance scale. The 401-624 at 40% occupies the intermediate position between these two role boundaries — above the appurtenance scale boundary and below the near-equal infrastructure scale — where the 4" IPS branch carries a moderate lateral flow fraction sufficient to supply a genuine secondary distribution system, a large-capacity zone supply header, a major drain or blowoff structure, a large-capacity fire protection supply main, or a large pump connection assembly, while the 10" primary run continues to carry the dominant share of the primary main's total distribution flow downstream of the branch junction. The 4" IPS branch at 40% delivers meaningful flow capacity to secondary distribution systems and large appurtenance assemblies under design service conditions — not negligible as at the 3" and smaller branches, not near-equal as at the 8" branch, but a substantive intermediate lateral that serves secondary distribution and large appurtenance roles that the smaller branch configurations cannot accommodate without exceeding their branch pipe's design velocity limits at the required service flow rates.

The 4" IPS branch socket's downstream application range defines the 401-624's commercial identity within the Spears 401 series and distinguishes it most sharply from both the 401-628 above and the 401-623 below. At 4" IPS socket PVC construction, the downstream branch systems and assemblies served by the 401-624's perpendicular branch socket span a range that is substantially larger in flow capacity than the 3" appurtenance assemblies of the 401-623 but substantially smaller in primary infrastructure scope than the 8" parallel distribution systems of the 401-628. The complete range of 4" IPS socket PVC downstream assemblies served by the 401-624's branch socket includes: 4" IPS socket PVC secondary distribution headers where the 10" primary main supplies a 4" IPS secondary distribution system serving a major sector, pressure district, campus zone, or service area whose design supply demand has been hydraulically sized at 4" IPS from the distribution system's demand analysis — the most commercially prominent application type at the 401-624's 40% intermediate lateral position, where the 4" secondary distribution header receives a meaningful fraction of the primary main's total supply flow and distributes it within its served area while the 10" primary run continues to supply additional downstream distribution zones; 4" IPS socket PVC large zone supply header assemblies where a major irrigation block, large commercial service zone, or campus distribution sector connects perpendicularly to the 10" primary main through a 4" IPS socket PVC zone supply valve and header assembly — larger in flow demand than the 3" zone supply assemblies of the 401-623, reflecting sector-level supply demands rather than individual service zone demands; 4" IPS socket PVC major drain assembly legs and structures where the 10" primary main requires large-capacity perpendicular drain connections in 4" IPS socket PVC construction at major low-point drain structure locations — the 4" IPS drain assembly providing substantially higher drain flow capacity than the 3" and smaller drain assemblies of the adjacent smaller configurations; 4" IPS socket PVC major blowoff assembly discharge pipes and structures where the 10" primary main requires large-capacity perpendicular blowoff valve assemblies in 4" IPS socket PVC construction at major low-point and end-of-main blowoff stations whose blowoff discharge capacity requirement exceeds what the 3" and smaller blowoff assemblies of adjacent configurations can provide; large-capacity combination air release and vacuum breaker valve supply assemblies in 4" IPS socket PVC construction where the air release valve's supply assembly requires 4" IPS socket PVC pipe at high-volume air management locations — primary transmission main high-point air management locations where the air release valve's required inlet supply capacity exceeds 3" IPS and the supply assembly is in permanently bonded 4" socket PVC construction; 4" IPS socket PVC large-capacity fire protection supply mains where a campus, facility, or sector fire protection distribution main connects perpendicularly to the 10" primary supply main through a 4" IPS socket PVC supply main branch connection — serving fire protection grid supply mains, fire protection zone supply headers, and large-capacity sprinkler system supply mains in 4" IPS socket PVC construction where the fire protection system's design flow demand has been sized at 4" IPS; 4" IPS socket PVC large pump suction supply and discharge connections where pump units with 4" IPS socket PVC suction or discharge connections receive primary main supply or return primary main flow through the 401-624's perpendicular branch socket — including large secondary pump suction supply assemblies, booster pump discharge assemblies returning to the primary main, and chemical injection pump station supply and return connections in 4" IPS socket PVC construction; 4" IPS socket PVC large chemical injection and treatment chemical supply mains where high-volume chemical injection supply mains in 4" IPS socket PVC construction supply treatment chemicals to the primary main system from a chemical injection station whose supply main is sized at 4" IPS by chemical injection system design; 4" IPS socket PVC major flushing assembly connections where large-capacity flushing valve assemblies at primary main dead-end and distribution boundary locations provide high-volume system commissioning flushing, water age management flushing, and major distribution system maintenance flushing through 4" IPS socket PVC flushing assemblies in perpendicular branch connection to the continuing 10" primary run; and 4" IPS socket PVC flow metering station and bypass metering assembly connections where major bypass flow metering stations in 4" IPS socket PVC construction connect perpendicularly to the continuing 10" primary run at primary main flow metering branch locations. This range of 4" IPS socket PVC downstream application types — spanning secondary distribution, large zone supply, major drain and blowoff, large fire protection supply, large pump connections, major chemical injection supply, and high-volume flushing — is substantially broader in absolute flow capacity than the downstream application range of the 401-623 below it, and reflects the 4" IPS pipe size's position as the largest commercially active branch pipe size in the Spears 401 series at the 10" run that serves appurtenance and secondary distribution roles rather than near-equal primary infrastructure roles.

The hydraulic character of the 401-624 at the 40% branch-to-run ratio and ~6.25x velocity increase at constant flow is the most important technical parameter establishing its intermediate-lateral commercial role and distinguishing it from both adjacent configurations in the series. The cross-sectional area of a 4" IPS pipe is 16% of the cross-sectional area of a 10" IPS pipe — meaning that if the full design flow of the 10" primary main were passed through the 401-624's 4" branch socket at constant flow, the 4" downstream velocity would be approximately 6.25 times the 10" upstream velocity. At any standard 10" primary main design velocity in the range of 2 to 5 feet per second, the 4" downstream velocity at full primary main throughput would be approximately 12.5 to 31 feet per second — a range exceeding standard design velocity limits for 4" IPS PVC pipe in all commercial primary main applications, confirming that the 401-624 does not serve as a full-flow inline transition from a 10" primary main to a 4" downstream pipe at any standard primary main design velocity. The 401-624's ~6.25x velocity increase is substantially lower than the 401-623's ~11.1x — a difference that reflects the 4" branch's larger cross-sectional area relative to 3" and correspondingly larger fraction of the primary main's total flow capacity available at the 4" branch port under design service conditions. At secondary distribution header supply events, large zone supply peak demand events, large-capacity blowoff and drain operations, fire protection system design fire flow demand events, and large pump operation at full output, the 4" branch draws a moderate-to-meaningful fraction of the 10" primary main's available flow — a fraction larger than the 3" branch's moderate fraction but still substantially less than the 8" branch's near-equal fraction — and the hydraulic analysis at the 401-624 must explicitly confirm the 4" branch's design service flow against the branch pipe's velocity limit, the available pressure at the 401-624 branch location under peak branch service conditions, and the 10" primary run's residual downstream pressure at the most remote simultaneous service point under combined primary distribution and peak branch service event conditions. The 40% lateral ratio's hydraulic effect on the 10" primary run is moderate rather than negligible — unlike the 20% to 30% lateral ratios of the smaller branch configurations where the 10" primary run's hydraulic dominance renders the branch junction effect negligible at normal distribution conditions, the 401-624's 40% lateral ratio produces a tee junction pressure loss that is hydraulically material at peak branch service flow conditions and must be explicitly confirmed in the primary system's hydraulic model rather than treated as negligible.

The three most important specification comparisons at the 401-624 are each governed by a distinct selection criterion and each must be resolved before any fitting is purchased at a 10" primary main branch location requiring a 4" appurtenance, secondary distribution, or large-capacity service branch assembly. The first and most important comparison is the all-socket branch versus FPT branch selection between the 401-624 and the 402-624 (10"x10"x4" Schedule 40 FPT branch tee in the Spears 402 series) — documented as the largest standard FPT branch configuration in the Spears 402 series at the 10" run level, serving downstream 4" branch components with inherently male NPT threaded primary main connection interfaces. The 401-624's 4" branch socket is a slip socket that accepts 4" IPS socket PVC pipe in a permanently bonded solvent cement connection — correct wherever the 4" downstream branch system continues in socket PVC pipe and fitting construction from the tee's branch socket. The 402-624's 4" branch port is a female pipe thread (FPT) that accepts 4" male NPT threaded components directly — correct wherever the first downstream component at the branch is an inherently male NPT threaded valve body, pump connection, or large appurtenance component with a 4" male NPT primary main connection interface. This selection is determined entirely by the downstream 4" branch component's connection interface type — 4" IPS socket PVC pipe for the 401-624, 4" male NPT thread for the 402-624 — and must be confirmed by inspecting the downstream component's connection interface before purchasing either fitting. At the 4" branch size, the commercial distribution between socket PVC pipe continuations and male NPT threaded component connections is present but less symmetrical than at the 2" and 3" branch sizes documented below the 401-624 in the series — the 4" IPS size's secondary distribution header, large zone supply, and fire protection supply main applications predominantly use socket PVC pipe continuation construction from the tee's branch socket, while the 402-624's 4" male NPT threaded application range serves large gate valve bodies, large ball valve bodies, and large blowoff and drain valve assemblies with 4" male NPT primary connection interfaces. The socket-versus-FPT confirmation at 4" is less ambiguous than at 2" and 3" because the secondary distribution header and fire protection supply main applications served by the 401-624's socket branch predominantly continue in socket PVC pipe construction from the tee body rather than threading a male NPT component directly into the branch port — but the confirmation must still be made from the downstream component's manufacturer specification before purchasing either fitting.

The second critical comparison is the perpendicular reducing tee versus inline reducer coupling selection between the 401-624 and the inline 10"x4" Schedule 80 reducer coupling at the same large-end and small-end size combination (if stocked in the Spears 829 series at the 10"x4" configuration). The 401-624 is a three-port perpendicular reducing tee with two 10" run sockets and one 4" perpendicular branch socket — the 10" primary run continues at full diameter through both run ports downstream of the 4" branch connection. An inline 10"x4" reducer coupling is a two-port fitting with no continuing 10" run port — the entire primary main flow path transitions inline from the 10" large-end socket to the 4" small-end socket at the coupling body at a terminal end-of-run location. The selection is determined by the primary main continuation requirement: the 401-624 is correct where the 10" primary main continues downstream of the 4" branch connection; the inline reducer coupling is correct where the 10" primary main terminates at the 4" connection. The 401-624 is additionally Schedule 40 white PVC while the inline reducer coupling would be Schedule 80 gray PVC — the schedule requirement applies simultaneously with the structural role requirement. At secondary distribution and large fire protection supply branch applications where the 10" primary main continues beyond the 4" branch to supply additional downstream distribution areas, the 401-624 is unambiguously correct; at terminal end-of-run locations where the 10" primary main terminates at a major 4" drain structure, blowoff structure, or secondary supply entry, the inline reducer coupling is correct.

The third critical comparison is the branch size selection within the Spears 401 series at the 10" run — specifically between the 401-624 (4" at 40%), the 401-628 (8" at 80%) above it, and the 401-623 (3" at 30%) below it as the two closest documented configurations in the series progression. The selection between the 401-624 and the 401-628 is governed by the downstream branch system's required IPS supply capacity — the 401-628 is correct where the downstream branch system is a near-equal primary infrastructure parallel distribution system requiring 8" IPS socket PVC supply capacity; the 401-624 is correct where the downstream branch system is a secondary distribution header, large zone supply header, or large-capacity appurtenance assembly requiring 4" IPS socket PVC supply capacity confirmed from the hydraulic demand analysis. The selection between the 401-624 and the 401-623 is governed by the same downstream supply capacity confirmation — the 401-624 is correct where the downstream assembly requires 4" IPS socket PVC supply capacity; the 401-623 is correct where the downstream assembly requires 3" IPS socket PVC supply capacity. At applications where the downstream branch assembly's required IPS pipe size falls between 3" and 4" — a situation that may arise in hydraulic demand analyses producing intermediate required pipe diameters — the standard IPS nominal pipe size selection methodology requires rounding up to the next standard nominal IPS size that satisfies the design demand within velocity limits; if the hydraulic demand analysis produces a required pipe diameter that rounds up to 4" IPS, the 401-624 is the correct configuration, and if it rounds up to 3" IPS, the 401-623 is correct.

The 401-624's position in the complete documented Spears 401 series at the 10" run level — now confirmed as a six-configuration documented series comprising the 401-100 (100%), 401-628 (80%), 401-624 (40%), 401-623 (30%), 401-622 (25%), and 401-621 (20%) — establishes the 401-624 as the intermediate-lateral configuration that bridges the documented series' gap between the near-equal primary infrastructure configuration at 80% and the large-bore appurtenance boundary configuration at 30%. In a complete 10" Schedule 40 PVC primary main BOM, all six documented configurations may appear simultaneously at different branch locations — the 401-100 at equal flow division locations, the 401-628 at near-equal secondary primary infrastructure branches, the 401-624 at secondary distribution header and large-capacity appurtenance branches in 4" socket PVC construction, the 401-623 at large-bore appurtenance branches in 3" socket PVC construction, the 401-622 at fire protection supply lateral and 2-1/2" appurtenance branches, and the 401-621 at the majority of zone supply, instrument supply, chemical injection, drain, blowoff, and appurtenance branches in 2" IPS socket PVC construction. The 401-624 is most commonly specified alongside the 401-623 and 401-621 in irrigation primary transmission main BOMs where the appurtenance schedule includes both 4" IPS socket PVC secondary distribution supply connections and secondary fire protection supply mains alongside the 3" and 2" IPS socket PVC zone supply, air release, drain, blowoff, and instrument supply tee branches that populate the majority of appurtenance branch locations along the primary transmission main route.

The assembly requirements at the 401-624 reflect the pronounced size asymmetry between its two 10" run sockets and its single 4" branch socket — greater in asymmetry than any configuration from the 401-628 down to the 401-624 at 40%, but less extreme than the 401-623 and smaller configurations where the branch socket's IPS size drops to the appurtenance scale. Both 10" run socket connections require the full large-diameter Schedule 40 PVC assembly discipline established at every 10" Schedule 40 socket fitting in this catalog — pre-planned assembly with both 10" run pipe ends fully positioned before any cement application begins, complete circumferential heavy-body cement coverage at both 10" bonding surfaces within the available working time, and full cure time compliance before any system pressurization. The 4" branch socket requires heavy-body solvent cement rated for 4" IPS Schedule 40 or Schedule 80 PVC pipe — a substantially smaller bonding surface than either 10" run socket, with correspondingly shorter working time and lower cement volume requirements at the branch socket relative to both run sockets. The complete assembly sequence must be planned with all three pipe ends positioned and accessible before cement application begins at any socket — the branch socket's 90-degree orientation confirmed against the piping layout drawing, secondary distribution system layout, fire protection system layout, or appurtenance schedule by dry-fit before cement is applied at any of the three sockets. At the 401-624's 40% branch-to-run size differential, the 4" branch socket's visual and tactile distinction from both 10" run sockets is clearly identifiable during assembly — the 4" branch socket's substantially smaller diameter relative to both 10" run sockets eliminates any ambiguity about which port is the branch during field assembly, but the branch socket's 90-degree angular departure direction relative to the run axis must still be confirmed against the piping layout drawing by dry-fit before cement application because the correct departure direction of the downstream 4" branch assembly — toward the secondary distribution header served, the fire protection supply main entry point, or the pump connection location — is governed by the piping layout and fire protection or distribution system design rather than by the fitting's visual orientation alone. Apply complete circumferential heavy-body cement coverage at all three socket connections within the available working time for each respective socket size, comply fully with cure time requirements before any system pressurization, and deburr and bevel all three pipe ends — both 10" run pipe ends and the 4" branch pipe end — before cementing to ensure consistent insertion depths and complete circumferential bond lines at all three socket connections.

Engineered concrete thrust block or mechanical joint restraint is required at the 401-624's perpendicular 4" branch port at buried installations — the 90-degree perpendicular branch direction change produces an unbalanced hydraulic thrust force in the branch direction proportional to the branch pipe's operating pressure and 4" IPS cross-sectional area. At the 40% branch-to-run ratio with the 4" IPS pipe cross-sectional area, the absolute thrust force at the 401-624's branch port is the largest among the documented minimal-lateral and intermediate-lateral configurations in the Spears 401 series at the 10" run — larger than the branch port thrust forces at the 401-623 (3" branch), 401-622 (2-1/2" branch), and 401-621 (2" branch) at the same operating pressure, reflecting the 4" IPS pipe's larger cross-sectional area relative to all three smaller branch configurations. This larger absolute thrust force relative to the smaller branch configurations, combined with the 4" branch's secondary distribution and large fire protection supply main applications where the primary main's design operating pressure is the full distribution system pressure, requires thrust block bearing area that must be calculated site-specifically from soil bearing conditions, system operating pressure, and 4" IPS branch pipe cross-sectional area at each buried 401-624 installation location — the thrust block bearing area at the 401-624 is substantially larger than at the 401-623 and smaller branch configurations at the same operating pressure and must not be assumed to be proportionally similar to the smaller configurations without explicit engineering calculation. No thrust restraint is required at either 10" run port — the run ports are inline connections producing no angular thrust force component in the run direction, and thrust restraint at the run connections is addressed through the primary run's pipe anchoring and support design.

The schedule selection at the 401-624 — Schedule 40 over the Schedule 80 counterpart at the 10"x10"x4" all-socket reducing tee configuration — follows the engineering framework established across all 10" Schedule 40 specialty fitting pages in this catalog. Schedule 40 is the correct specification where the system's design operating pressure, surge allowance, and engineering safety margin requirements fall within the Schedule 40 pressure ceiling at the 10" fitting size, where the system specification does not mandate Schedule 80 gray PVC throughout, and where the design engineer has confirmed that Schedule 40 wall thickness satisfies all engineering requirements at the primary main branch location. At secondary distribution header supply, large fire protection supply main, and large-capacity pump connection applications where the 4" branch's design service flow and the primary main's operating pressure together define the loading at the 401-624's branch junction, the schedule confirmation must include the 4" branch port's combined flow resistance and internal pressure loading at peak service event conditions. Where the system requires Schedule 80 wall thickness, gray material class identification, or the higher pressure ceiling that Schedule 80 provides at large-diameter primary main reducing tee fittings, the Schedule 80 counterpart at the 10"x10"x4" reducing tee configuration is the correct specification.

Schedule 40 white PVC construction provides the chemical resistance, NSF certification, and structural capability appropriate for large-diameter primary main intermediate-lateral reducing tee branch service within the Schedule 40 pressure and wall thickness envelope. PVC Type 1 Grade 1 construction with cell classification 12454 per ASTM D1784 delivers broad chemical resistance across water treatment chemicals, process water service, industrial utility water, and the full range of non-solvent process fluids appropriate for Schedule 40 PVC primary main service at all three socket connections. The white color provides the permanent, inspectable Schedule 40 material class identification at the primary main intermediate-lateral branch location. The 4" branch socket is compatible with both Schedule 40 and Schedule 80 4" IPS PVC pipe — the schedule of the 4" downstream branch pipe is selected based on the downstream assembly's own design requirements including the secondary distribution header's system design pressure, the fire protection supply main's design requirements, or the pump connection assembly's pressure and flow specifications.

NSF 61 certification lists this fitting for potable water contact, and NSF 14 covers compliance with applicable plastics piping material standards — making it the correct Schedule 40 PVC all-socket intermediate-lateral reducing tee for municipal water distribution systems, large potable water pump station primary headers, large commercial irrigation primary mains, and large commercial and institutional water supply primary mains where NSF-listed materials are required at every fitting in the primary distribution system including tee bodies at primary main secondary distribution header supply, large fire protection supply, major drain and blowoff, large pump connection, and large-capacity appurtenance branch locations. ASTM D2466 governs Schedule 40 PVC socket fittings and defines the manufacturing, dimensional, and pressure performance requirements the 401-624 is produced to. Verify manufacturer pressure rating documentation for the specific fitting configuration before final system specification — at the 10"x10"x4" reducing tee configuration, the governing pressure rating is determined by the 10" run port size and the fitting's tested performance at this large-diameter intermediate-lateral reducing tee geometry, and must be confirmed against the manufacturer's published pressure-temperature rating table for SKU 401-624 before installation in systems at or near the fitting's rated pressure ceiling.

Key Features:

• Schedule 40 white PVC reducing tee — 10" x 10" run (slip socket) x 4" branch (slip socket), all socket (slip) ends; Spears 401 series Schedule 40 PVC socket fittings
• 4" IPS socket branch — secondary distribution headers, large zone supply headers, major drain and blowoff structures, large-capacity fire protection supply mains, large pump suction and discharge connections, major chemical injection supply mains, and high-volume flushing assemblies in permanently bonded 4" IPS socket PVC construction
• Intermediate-lateral position in the Spears 401 series at the 10" run — above the large-bore appurtenance-scale configurations (401-623 at 30%, 401-622 at 25%, 401-621 at 20%) and below the near-equal primary infrastructure configuration (401-628 at 80%); 4" branch serves secondary distribution and large appurtenance roles that require larger branch capacity than 3" can provide but do not require near-equal 8" primary infrastructure capacity
• 4" branch at 40% of 10" run diameter — ~6.25x velocity increase at constant flow; moderate lateral ratio; 10" primary run continues to carry dominant primary distribution flow fraction downstream; 4" branch delivers meaningful secondary distribution or large appurtenance service flow at peak branch service conditions; hydraulic confirmation required at peak branch service events — full primary main design flow cannot pass through 4" branch at any standard design velocity
• Complete Spears 401 series at the 10" run — six-configuration documented set: 401-100 (100%), 401-628 (80%), 401-624 (40%), 401-623 (30%), 401-622 (25%), 401-621 (20%); selection among all six determined by downstream assembly's required IPS socket pipe size — confirm from hydraulic demand analysis, fire protection design drawings, or manufacturer connection specification
• First critical comparison — all-socket versus FPT branch: 401-624 where downstream 4" branch assembly continues in socket PVC pipe and fitting construction from tee's branch socket; 402-624 (10"x10"x4" FPT branch tee) where downstream 4" branch component is inherently 4" male NPT threaded; downstream component's connection interface type determines which fitting is correct; at 4" branch size, secondary distribution header and fire protection supply main applications predominantly use socket PVC pipe continuation; large gate valve bodies, large ball valve bodies, and large threaded appurtenance assemblies with 4" male NPT interfaces use the 402-624 — confirm before purchasing either fitting
• Second critical comparison — perpendicular reducing tee versus inline reducer coupling: 401-624 where 10" primary run continues downstream of the 4" branch and branch exits perpendicularly; inline 10"x4" Schedule 80 reducer coupling where 10" primary main terminates at the 4" connection and entire end-of-run flow transitions inline to the 4" downstream assembly; primary main continuation requirement and schedule requirement together determine which fitting is correct
• Third critical comparison — branch size selection: 401-628 (8" at 80%) where downstream branch serves near-equal primary infrastructure system; 401-624 (4" at 40%) where downstream is 4" IPS socket PVC secondary distribution or large appurtenance assembly confirmed from hydraulic demand analysis; 401-623 (3" at 30%) where downstream is 3" IPS socket PVC; confirm downstream required IPS pipe size explicitly before specifying
• Largest branch port thrust force among intermediate-lateral and appurtenance-scale configurations in Spears 401 series at the 10" run — thrust block bearing area at buried 401-624 branch port is substantially larger than at 401-623, 401-622, and 401-621 at same operating pressure; must not be proportionally assumed from smaller branch configurations; site-specific engineering calculation required; no thrust restraint required at either 10" run port
• Branch socket orientation committed at run socket cement application — 4" branch socket angular direction confirmed by dry-fit against piping layout, secondary distribution system layout, or fire protection system design before cement at any socket; 4" branch socket's clearly smaller diameter distinguishes it from both 10" run sockets during field assembly; departure direction toward served secondary distribution area or fire protection entry point must be confirmed against layout drawings
• Both 10" run socket connections require full large-diameter heavy-body cement assembly discipline; 4" branch socket requires standard 4" IPS heavy-body cement assembly; plan complete three-socket assembly sequence with all pipe ends positioned before cement application begins; full cure time compliance before pressurization
• 4" branch socket accepts Schedule 40 and Schedule 80 4" IPS PVC pipe — downstream branch pipe schedule selected from secondary distribution system, fire protection system, or appurtenance assembly design requirements
• Schedule 40 vs. Schedule 80 selection: Schedule 40 correct where system pressure, surge, and safety margin requirements fall within Schedule 40 pressure ceiling; verify against Schedule 80 counterpart before final specification
• Manufactured to ASTM D2466 — governing standard for Schedule 40 PVC socket fittings
• NSF 61 certified for potable water contact; NSF 14 listed
• Run socket connections compatible with Schedule 40 and Schedule 80 IPS 10" pipe; branch socket compatible with Schedule 40 and Schedule 80 IPS 4" pipe
• White color — standard Schedule 40 material class identification at the primary main intermediate-lateral reducing tee branch location
• Cell classification PVC 12454 per ASTM D1784
• Heavy-body solvent cement required at all three socket connections; full cure time compliance mandatory before pressurization
• Pressure rating: verify against manufacturer pressure-temperature table for SKU 401-624
