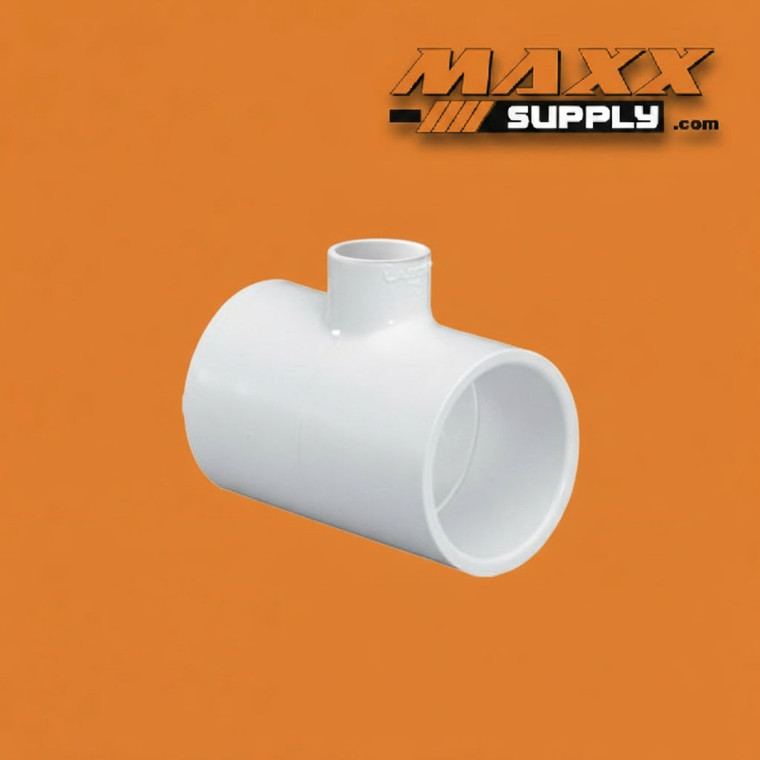

Tee, Slip x Slip x FPT PVC Schedule 40 12" x 12" x 2 1/2" (402-662)

The 12" x 12" x 2-1/2" Schedule 40 White PVC Tee (402-662, Slip x Slip x FPT) is a large-diameter thermoplastic combination tee fitting manufactured to ASTM D2466 in Schedule 40 white PVC — a Spears 402 series socket-by-thread configuration in which the two run connections are 12" slip socket ends and the branch connection is a 2-1/2" female pipe thread (FPT) port accepting 2-1/2" male NPT threaded pipe, nipples, valves, and fittings. The 402-662 provides a single-body Schedule 40 PVC solution for taking a 2-1/2" threaded branch connection off a 12" solvent cement socket primary main — maintaining the full 12" solvent-cemented primary main construction through both run ports while providing a detachable, re-engageable, threaded branch interface at the 2-1/2" port for connection to the threaded components, threaded isolation valves, threaded instrument assemblies, threaded chemical injection equipment, threaded pressure relief valves, threaded bypass connections, and threaded process equipment interfaces that the system's 2-1/2" NPT branch service requires. The defining specification advantage of the 402-662 over the all-socket 401 series reducing tee at the same size configuration is precisely this branch connection type distinction — the 2-1/2" FPT port eliminates the need for a threaded adapter or transition fitting between the PVC tee's socket branch port and the threaded 2-1/2" NPT branch component, provides a directly threaded female NPT interface at the branch port that accepts any standard 2-1/2" male NPT threaded component without intermediate fittings, and allows the branch connection to be made, inspected, serviced, tightened, and if necessary removed and re-engaged without cutting pipe, without solvent cement disassembly, and without any modification to the primary 12" solvent-cemented run piping.

The branch connection type — 2-1/2" FPT rather than 2-1/2" slip socket — is the specification decision that determines when the 402-662 is the correct fitting over both the all-socket Schedule 40 reducing tee at the 12" x 12" x 2-1/2" configuration and the adjacent Spears 402 series combination tees at the same 12" run size. The all-socket reducing tee is the correct specification where the branch pipe run is entirely PVC socket construction and the branch connection is a permanently bonded solvent cement joint. The 402-663 (3" FPT) is the correct specification where the branch component carries a 3" male NPT connection. The 402-664 (4" FPT) is the correct specification where the branch component carries a 4" male NPT connection. The 402-662 is the correct specification where the branch connection is specifically to a component whose inlet or outlet is 2-1/2" male NPT — where the system design specifies a 2-1/2" NPT threaded branch valve, a 2-1/2" NPT threaded instrument assembly, a 2-1/2" NPT threaded chemical injection fitting, a 2-1/2" NPT threaded pressure relief valve, a 2-1/2" NPT threaded pump connection, a 2-1/2" NPT threaded air release valve assembly, or any other branch component that is inherently threaded at the 2-1/2" NPT connection size — eliminating the threaded socket adapter that would otherwise be required between an all-socket tee's branch port and the 2-1/2" NPT branch component, and providing the direct female NPT interface at the fitting body itself where the threaded connection's detachability and re-engagement capability is a design or maintenance requirement at the primary main branch service point.

The 2-1/2" NPT thread size occupies a specific and well-defined position in the standard NPT thread series. Per ANSI/ASME B1.20.1, 2-1/2" is a recognized standard NPT size that appears in specific equipment and valve categories where the hydraulic design, equipment manufacturer specification, or system standard has established 2-1/2" NPT as the connection size — not as a transitional or non-standard size, but as a precisely defined NPT thread form with specific thread dimensions, engagement depths, and torque requirements that are distinct from the adjacent 2" and 3" NPT sizes and that are not served by either adjacent size without an NPT reducer or adapter. The buyer sourcing the 402-662 has a specific 2-1/2" male NPT threaded branch component whose connection size cannot be served by the 402-663's 3" FPT port or the 402-664's 4" FPT port without an intermediate NPT reducing fitting — the 402-662 is the fitting that provides the direct 2-1/2" female NPT branch interface at the 12" primary main without that intermediate fitting, and the product description must confirm this exact thread size match unambiguously from the first paragraph through every specification reference in the full product content.

The 2-1/2" FPT branch at 21% of the 12" run diameter is the most minimal lateral threaded service tap configuration in the Spears 402 series at the 12" run size. At this branch-to-run proportion, the 12" primary trunk is completely hydraulically dominant — the 2-1/2" branch draws a negligible fraction of the primary run flow under all system operating conditions, the primary main's velocity and pressure profile through the straight-run ports is unaffected by the 2-1/2" branch withdrawal, and the fitting functions exclusively as a single-point threaded service interface between the 12" primary infrastructure system and the 2-1/2" NPT threaded branch component. This minimal hydraulic character means that the 402-662's specification is driven entirely by the 2-1/2" NPT connection type requirement at the branch port — the branch flow hydraulics require no special accounting in the primary system design — and the fitting's value to the buyer is entirely in the connection type: the female NPT thread at 2-1/2" that matches the branch component's male NPT connection exactly, the elimination of the intermediate adapter fitting, and the detachable threaded branch connection that allows the branch component to be serviced, replaced, or removed without disturbing the permanently bonded 12" primary main.

Schedule 40 white PVC construction provides the chemical resistance, NSF certification, and structural capability appropriate for large-diameter primary main service within the Schedule 40 pressure and wall thickness envelope. PVC Type 1 Grade 1 construction with cell classification 12454 per ASTM D1784 delivers broad chemical resistance across water treatment chemicals, process water service, industrial utility water, and the full range of non-solvent process fluids appropriate for Schedule 40 PVC primary main service at both the 12" run socket connections and the 2-1/2" FPT branch port. The white color provides the Schedule 40 material class identification at the primary main branch connection — confirming the installed material class for inspectors, maintenance engineers, and facility managers without reference to pipe markings or construction documentation. The 12" run socket connections solvent cement directly onto standard 12" IPS Schedule 40 or Schedule 80 PVC pipe; at these 12" socket connections, heavy-body solvent cement rated for large-diameter PVC is mandatory, pre-planned assembly with both 12" pipe ends positioned before cement application begins is essential, complete circumferential heavy-body cement coverage across the full bonding surface of each 12" pipe end and fitting socket must be achieved, and full cure time compliance before any system pressurization is non-negotiable — the 12" socket joints are the most technically demanding in the commercial Schedule 40 PVC fitting line regardless of the branch connection type. The 2-1/2" FPT branch port accepts standard 2-1/2" male NPT threaded pipe, nipples, and fittings — apply PTFE tape or approved pipe thread sealant compatible with PVC to the male NPT threads in the direction of thread engagement before threading into the 2-1/2" FPT port; engage hand-tight and advance with a strap wrench to the manufacturer's recommended engagement depth for 2-1/2" NPT PVC threaded connections; do not over-torque — PVC female pipe threads are susceptible to cracking from over-engagement at all sizes and the manufacturer's torque specification for the 2-1/2" FPT port must be observed to prevent thread failure at the branch port; do not use pipe dope formulations incompatible with PVC; the threaded connection at the 2-1/2" FPT branch provides a detachable interface that allows removal of the threaded male branch component — but only after the primary main has been fully depressurized and isolated, and only after confirming that the thread sealant condition will permit re-engagement with fresh sealant at the reinstalled connection.

NSF 61 certification lists this fitting for potable water contact, and NSF 14 covers compliance with applicable plastics piping material standards — making it the correct primary main threaded branch tee for municipal water treatment and distribution systems designed to Schedule 40 specifications, large potable water pump station primary header connections, and large commercial and institutional water supply primary mains where NSF-listed materials are required at every fitting and Schedule 40 construction with a 2-1/2" FPT branch satisfies the design engineer's material class and connection type requirements at the threaded branch service point. ASTM D2466 governs Schedule 40 PVC socket fittings; the 2-1/2" FPT thread form conforms to ANSI/ASME B1.20.1 NPT thread standards. Verify manufacturer pressure rating documentation for the specific fitting configuration before final system specification — at the 12" x 12" x 2-1/2" FPT combination tee configuration, the governing pressure rating is determined by the largest port size (12") and the fitting's tested performance at this large-diameter slip-by-thread combination tee geometry, and must be confirmed against the manufacturer's published pressure-temperature rating table for SKU 402-662 before installation in systems at or near the fitting's rated pressure ceiling.

Key Features:

• Schedule 40 white PVC combination tee — 12" slip x slip run x 2-1/2" FPT branch; Spears 402 series socket-by-thread
• Mixed end connection configuration — 12" solvent cement socket run ports x 2-1/2" female NPT threaded branch port
• 2-1/2" FPT branch accepts standard 2-1/2" male NPT threaded pipe, nipples, valves, instruments, and fittings directly without intermediate adapter fittings
• 2-1/2" NPT is a distinct standard thread size per ANSI/ASME B1.20.1 — not interchangeable with adjacent 2" or 3" NPT sizes; select this fitting only when branch component carries a 2-1/2" male NPT connection
• Detachable threaded branch connection — 2-1/2" FPT port allows branch component removal, inspection, and re-engagement without cutting pipe or disturbing the solvent-cemented 12" primary main
• Most minimal lateral branch geometry in the Spears 402 series at the 12" run — 2-1/2" branch at 21% of 12" run diameter; primary 12" straight-run flow path maintained at full diameter with negligible branch-induced effect on primary main hydraulics
• Correct specification over all-socket reducing tee where branch component is male NPT threaded at 2-1/2" connection size
• Correct specification over 402-663 (3" FPT) and 402-664 (4" FPT) where branch component thread size is specifically 2-1/2" male NPT
• Manufactured to ASTM D2466 — governing standard for Schedule 40 PVC socket fittings; 2-1/2" FPT thread per ANSI/ASME B1.20.1 NPT
• NSF 61 certified for potable water contact; NSF 14 listed
• 12" slip socket connections compatible with Schedule 40 and Schedule 80 IPS pipe
• White color — standard Schedule 40 material class identification
• Cell classification PVC 12454 per ASTM D1784
• Heavy-body solvent cement required at both 12" socket connections; full cure time mandatory before pressurization
• PTFE tape or approved pipe thread sealant required at 2-1/2" FPT branch; do not over-torque — observe manufacturer torque specification for 2-1/2" NPT PVC threaded connections
• Pressure rating: verify against manufacturer pressure-temperature table for SKU 402-662

Specifications:

Industries & Applications:

• Municipal Water Distribution — Threaded Instrument, Air Release, and Service Branch Connections on 12" Primary Mains — The 12" x 12" x 2-1/2" FPT Schedule 40 tee is specified at 2-1/2" NPT threaded branch connection points on 12" municipal water transmission and primary distribution mains in Schedule 40 PVC systems where the primary main must supply a 2-1/2" male NPT threaded branch to air release and combination air vacuum valve assemblies specified at 2-1/2" NPT connection size at primary main profile high points, blow-off and drain valve assemblies with 2-1/2" NPT inlets at primary main low points and terminus locations, pressure gauge manifold isolation valve inlets at 2-1/2" NPT, sample tap and water quality sampling assembly inlets at 2-1/2" NPT, and secondary distribution supply connections where the branch component's inlet is specifically 2-1/2" male NPT rather than the adjacent 2" or 3" NPT sizes that the other Spears 402 series configurations at the 12" run serve; at municipal scale, the 2-1/2" NPT branch on a 12" primary main tee serves the specific instrument, sample, air management, and service components that are designed and specified at 2-1/2" NPT connection size — a thread size that appears in municipal water system components including specific air valve body configurations, certain pressure relief valve series, and specific sample tap assemblies where the manufacturer has standardized on 2-1/2" NPT rather than the adjacent sizes; the 402-662 provides the direct female NPT interface at the 12" primary main for these 2-1/2" NPT specified components without intermediate NPT reducers or adapters; NSF 61 listing confirms potable water fitness at every municipal water distribution threaded branch connection
• Water Treatment Plant — Threaded Chemical Injection, Instrument, and Sample Branch Connections at 2-1/2" NPT — Installed at 2-1/2" NPT threaded branch connection points on 12" primary distribution headers in water treatment plants where the primary header must supply a 2-1/2" male NPT threaded branch to chemical injection assemblies with 2-1/2" NPT inlets — chlorination point injection fittings, fluoride dosing assembly inlets, corrosion inhibitor injection points, and coagulant and polymer feed distribution connections where the chemical metering or injection equipment is specified with 2-1/2" male NPT connections; flow measurement device isolation valve manifolds with 2-1/2" NPT inlets; pressure transmitter and gauge isolation valve manifolds at 2-1/2" NPT; sampling system inlet connections at 2-1/2" NPT service tap size; and instrument supply headers requiring a directly threaded 2-1/2" NPT interface at the 12" primary header branch point; water treatment plant chemical dosing and instrumentation equipment is specified across a range of NPT thread sizes including 2-1/2" NPT for mid-scale dosing systems, sampling assemblies, and instrument manifold configurations where the equipment manufacturer's standard connection size is 2-1/2" NPT — the 402-662 provides the direct PVC female NPT interface that receives these components at the 12" primary header without an intermediate NPT reducer, and the threaded connection's detachability supports the maintenance and calibration cycles that chemical dosing and instrument equipment requires without disturbing the permanently bonded 12" solvent cement primary main; NSF 61 listing confirms potable water fitness at every water treatment plant primary distribution threaded branch connection
• Pump Station — Threaded Pump, Bypass, and Instrument Branch Connections at 2-1/2" NPT on 12" Primary Headers — Used at 2-1/2" NPT threaded branch connection points on 12" primary pump station headers where the 12" primary pump discharge or suction header must supply a 2-1/2" male NPT branch to pump connections specified at 2-1/2" NPT — certain mid-scale pump series with 2-1/2" NPT discharge or suction port specifications — pressure relief valve inlets at 2-1/2" NPT thread size, bypass valve assemblies at 2-1/2" NPT between pump discharge and suction headers, pressure gauge and transmitter isolation manifold inlets at 2-1/2" NPT, air release valve assemblies at primary header high points with 2-1/2" NPT connections, and chemical injection point assemblies at the primary discharge header where the injection equipment carries a 2-1/2" NPT connection; the 2-1/2" FPT branch at pump station primary header level is the correct specification when the pump unit, bypass assembly, instrument, or relief valve component carries a 2-1/2" male NPT connection that cannot be directly served by the 402-663's 3" FPT or the 402-664's 4" FPT without an intermediate NPT reducer; the threaded branch's detachability is operationally significant at pump station connections where pump components and instrument assemblies require periodic removal for maintenance without disturbing the 12" solvent-cemented primary main
• Industrial Process Piping — Threaded Branch Connections to Mid-Scale Process Instruments and Equipment at 2-1/2" NPT — Specified at 2-1/2" NPT threaded branch connection points on 12" process water primary headers, cooling water primary distribution trunks, and plant utility water primary mains in manufacturing plants, chemical processing facilities, and industrial environments where the 12" Schedule 40 PVC primary header must supply a 2-1/2" NPT threaded branch to process equipment with 2-1/2" male NPT inlet connections, threaded process isolation and control valves at 2-1/2" NPT serving specific equipment supply points, threaded pressure and flow instrument manifolds at 2-1/2" NPT service size, threaded safety relief valve inlets at 2-1/2" NPT, threaded drain and blow-off valve assemblies at 2-1/2" NPT, and threaded sampling and analysis point connections at 2-1/2" NPT thread size; industrial process equipment is specified across a broad range of NPT thread sizes including 2-1/2" NPT for specific valve series, instrument configurations, and equipment connections where the manufacturer or system standard establishes 2-1/2" NPT as the connection size — the 402-662 provides the direct 2-1/2" female NPT branch interface in a single Schedule 40 PVC tee body that eliminates the intermediate NPT reducer or adapter at every 2-1/2" NPT threaded equipment branch connection along the 12" primary process header
• Large Commercial & Agricultural Irrigation — Threaded Air Valve, Chemical Injection, and Instrument Branch Connections at 2-1/2" NPT on 12" Primary Mains — Used at 2-1/2" NPT threaded branch connection points on 12" primary irrigation transmission mains in Schedule 40 PVC systems where the primary main must supply a 2-1/2" male NPT branch to combination air release and air vacuum valve assemblies specified at 2-1/2" NPT connection size at primary main profile high points — a key application category where air valve manufacturers offer 2-1/2" NPT body configurations alongside 2" and 3" NPT alternatives — threaded chemical injection and fertigation equipment inlets at 2-1/2" NPT service size, threaded pressure gauge and transmitter manifold connections at 2-1/2" NPT, threaded flush and blow-off valve assemblies at primary main endpoints and low points with 2-1/2" NPT connections, and threaded flow meter isolation valve manifolds at 2-1/2" NPT along the primary transmission main route; the air release and air vacuum valve application drives a meaningful portion of the 402-662's specification demand in large commercial irrigation — combination air valves for large-diameter buried PVC irrigation mains are available in 2-1/2" NPT body configurations from major valve manufacturers and the 402-662 provides the direct female NPT interface at the 12" primary main for these 2-1/2" NPT air valve assemblies without an intermediate NPT reducer or adapter; the threaded connection's serviceability is operationally important at irrigation air valve and chemical injection branch points where seasonal inspection, component replacement, and system modification require branch component removal without cutting the 12" primary transmission main
• Water & Wastewater Treatment — Threaded Chemical Feed, Sample, and Instrument Branch Connections at 2-1/2" NPT on 12" Process Headers — Installed at 2-1/2" NPT threaded branch connection points on 12" primary process distribution headers in industrial wastewater treatment, water reclamation, and large-scale industrial water management facilities where the primary header must supply 2-1/2" NPT threaded branches to chemical feed pump discharge connections at 2-1/2" NPT, polymer dosing equipment inlets at 2-1/2" NPT, analytical instrument isolation valve manifolds at 2-1/2" NPT service size, pressure relief valve inlets at 2-1/2" NPT at primary header protection points, sampling system inlet connections at 2-1/2" NPT, and secondary chemical distribution connections where the dosing or analysis equipment is specified with 2-1/2" male NPT connections; the 402-662 provides the direct 2-1/2" female NPT branch interface in a single Schedule 40 PVC tee body that eliminates the NPT reducer chain that an all-socket tee or a larger-FPT 402 series fitting would require at every 2-1/2" NPT threaded equipment branch connection along the 12" primary treatment process distribution header; Schedule 40 PVC construction handles the process fluid contact and chemical service conditions at 12" primary distribution branch connections in treatment environments where Schedule 40 satisfies the operating pressure and material specification requirements
• HVAC & Large Commercial Mechanical Systems — Threaded Branch Service Connections at 2-1/2" NPT on 12" Primary Distribution Mains — Specified at 2-1/2" NPT threaded branch service connection points on 12" primary chilled water distribution mains, condenser water primary trunks, and large-capacity hydronic heating and cooling primary distribution headers in Schedule 40 PVC systems where the 12" primary distribution main must supply a 2-1/2" male NPT branch to air separator and combination air release valve assemblies with 2-1/2" NPT connections, pressure relief valve inlets at 2-1/2" NPT, pressure gauge and transmitter isolation valve manifolds at 2-1/2" NPT, chemical treatment injection port assemblies at 2-1/2" NPT service size, drain valve assemblies at 2-1/2" NPT at primary main low points, and flow measurement valve assemblies at 2-1/2" NPT at primary distribution service points; HVAC mechanical equipment and system service components are specified at 2-1/2" NPT connection size across air management, pressure relief, and instrumentation categories — the 402-662 provides the direct female NPT branch interface for these 2-1/2" NPT components at the 12" primary distribution main without intermediate NPT reducers; Schedule 40 PVC construction satisfies the material specification at primary distribution service branch connections in large commercial mechanical systems where Schedule 40 is the system material standard
• Fire Protection and Standpipe Systems — Threaded Branch Service Connections at 2-1/2" NPT on 12" Fire Mains — Used at 2-1/2" NPT threaded branch connection points on 12" Schedule 40 PVC fire protection supply mains and standpipe supply headers in systems where the 12" PVC primary supply main must provide a 2-1/2" NPT threaded branch to fire protection system service components with 2-1/2" male NPT connections — hose valve connections at standpipe systems where 2-1/2" NPT is the standard hose connection thread for Class II and Class III standpipe systems, inspector's test connection inlets, pressure relief and drain valve assemblies, and fire department auxiliary equipment connection points at 2-1/2" NPT; the 2-1/2" hose connection thread is a recognized standard in NFPA 14 standpipe system design at this nominal size — the 402-662 provides the direct female NPT interface for 2-1/2" NPT standpipe and fire protection branch components at the 12" primary main without intermediate adapters; verify with the authority having jurisdiction (AHJ) and the project's fire protection engineer that Schedule 40 PVC and the 402-662's pressure rating satisfy all applicable fire protection system code and specification requirements before installation in fire protection service
