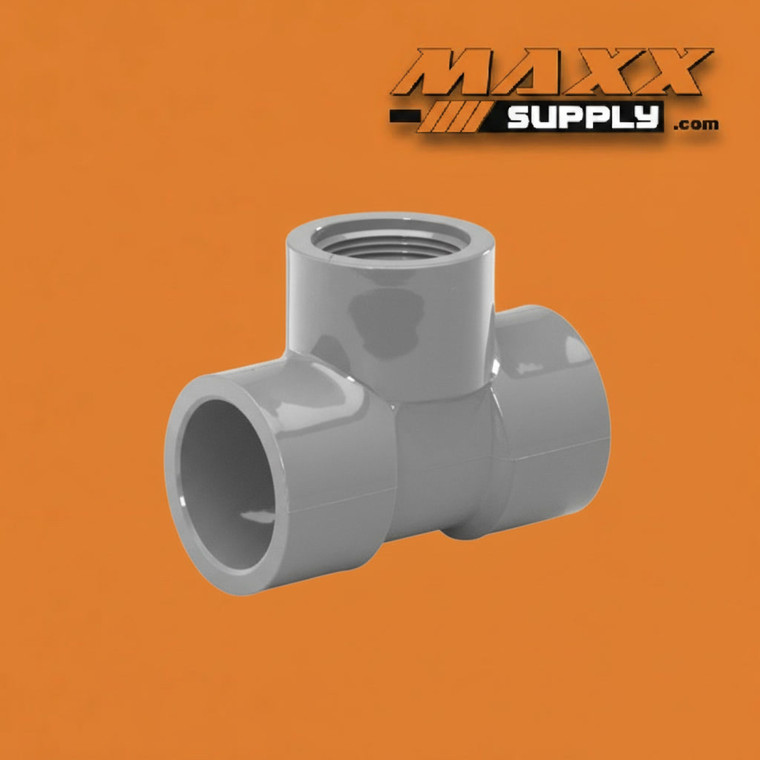

Tee, Slip x Slip x FPT PVC Schedule 80 4" x 2" (802-420)

The 4" x 4" x 2" PVC Schedule 80 Tee (Slip x Slip x FPT) is a mixed-connection reducing tee engineered for industrial piping systems that require a smaller, threaded branch takeoff from a larger solvent-weld main run. With 4-inch slip socket connections on both run ends and a 2-inch female NPT threaded connection on the branch outlet, this fitting delivers two distinct functional advantages in a single fitting body — a size reduction from the 4-inch main to a 2-inch branch, and a connection type transition from the permanent solvent-weld run to a threaded branch that can be assembled and disassembled without cutting into the piping system.

Compared to the previously described 802-422 (4" x 4" x 3" FPT branch), the 2-inch branch of this fitting represents a more pronounced size step-down — a configuration that narrows the branch's functional role toward lower-volume, more specialized applications. Where a 3-inch FPT branch might serve a secondary distribution lateral or a moderate-flow bypass, a 2-inch FPT branch is more characteristic of chemical injection points, instrumentation taps, small-bore drain connections, pressure gauge assemblies, sampling ports, and ancillary process feeds where the branch volume is intentionally subordinate to the primary 4-inch run.

The female NPT thread on the branch is the critical feature that distinguishes this fitting from an all-slip equivalent. It accepts any standard 2-inch male NPT fitting directly — a ball valve, a union, a pressure gauge, a chemical injector, a threaded nipple, or a plug — without requiring a separate threaded adapter in the branch line. This makes the fitting particularly practical at instrumentation and chemical dosing points where the branch component will eventually need replacement or adjustment and a removable threaded connection is preferable to a cemented joint. The 4-inch slip run ends maintain the integrity and pressure rating of the permanent main, while the 2-inch FPT branch provides the serviceable access point the system requires.

Schedule 80 PVC provides the elevated wall thickness at both the run body and the branch hub that industrial service demands — and at the FPT branch specifically, the additional material supports deeper thread engagement and greater resistance to thread failure under pressure than a Schedule 40 equivalent would provide. Manufactured to ASTM D2467 standards and compatible with Schedule 80 PVC pipe on the run ends and standard NPT threaded fittings on the branch.

Specifications:

Industries & Applications:

• Chemical Injection & Dosing Systems — A defining application for this configuration; the 2-inch FPT branch provides a dedicated, removable chemical injection or dosing connection on a 4-inch process main, accepting a threaded injector, check valve, or isolation valve without disturbing the permanent slip run
• Process Instrumentation & Sampling — Used in industrial 4-inch process mains where a 2-inch threaded branch provides a tap point for pressure gauges, flow meters, temperature sensors, or manual sampling valves that require a direct, structurally sound, and serviceable connection to the main pipe
• Water & Wastewater Treatment — Applied in treatment plant piping where 4-inch Schedule 80 mains require a 2-inch threaded branch for chemical feed connections, pH or turbidity probe ports, sample taps, or small-volume supply lines to ancillary metering and dosing equipment
• Pump Systems & Bypass Lines — Incorporated in pump discharge and suction assemblies where a 2-inch FPT branch provides a recirculation port, pressure relief connection, or bypass line that must remain threaded and accessible for periodic valve service or system adjustment
• Industrial Drain & Vent Connections — Specified at designed drain or vent points on 4-inch process headers where a 2-inch FPT branch provides a removable low-point drain plug, cleanout access, or air release connection for system maintenance and flushing
• Irrigation & Agricultural Systems — Used in 4-inch Schedule 80 irrigation mains where a 2-inch threaded branch connects a pressure gauge assembly, fertilizer injector, or filter bypass that requires threaded access for routine adjustment, cleaning, or seasonal replacement
