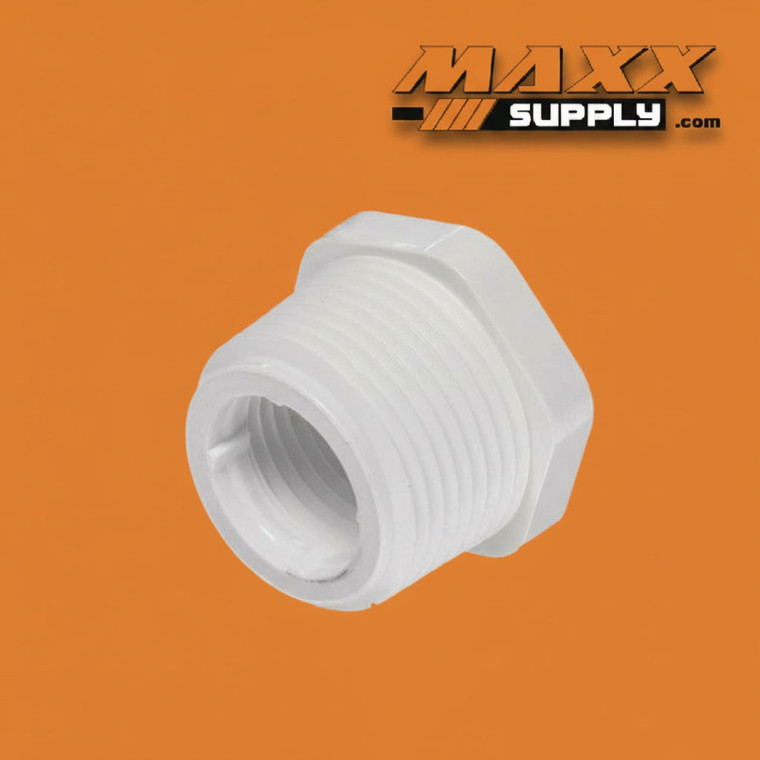

Threaded Reducer Bushing, MPT x FPT PVC Schedule 40 1" x 1/2" (439-130)

This 1" x 1/2" Schedule 40 PVC Hex Bushing (MPT x FPT) provides a compact, inline solution for reducing a 1" female-threaded port down to a 1/2" male-threaded connection in commercial and light industrial PVC piping systems. Constructed in white Schedule 40 PVC with a hexagonal shoulder for wrench engagement during installation, it delivers the corrosion resistance and chemical compatibility required across a wide range of fluid handling applications where a 1" female-threaded port must be reduced to accept a 1/2" male-threaded fitting, solenoid valve inlet, chemical injection nipple, instrument connection, or small-bore service component without additional transition hardware.

The 1" MPT exterior threads directly into any standard 1" FPT or FIP female-threaded fitting, valve body, tee branch outlet, or manifold connection, while the 1/2" FPT interior accepts any standard 1/2" male NPT-threaded pipe end, nipple, solenoid valve inlet, or service component for a pressure-tight mechanical connection when made up with thread sealant or PTFE tape. The hexagonal shoulder between the two threaded ends provides a wrench flat for controlled make-up torque — ensuring proper thread engagement at the 1" exterior diameter. This MPT x FPT hex bushing is the all-threaded approach to inline size reduction at this combination and is the correct choice when both the upstream 1" female port and the downstream 1/2" male component are threaded, eliminating the need for a socket fitting, separate adapter, or additional threaded nipple at the reduction point. The 1" to 1/2" step-down is a meaningful 2:1 reduction — the most aggressive confirmed in the 1" MPT inlet 439 sub-series and more significant than the adjacent 439-131 (1" x 3/4", 1.33:1 near-full-size reduction) — most commonly encountered where 1/2" threaded solenoid valve inlets, drip emitter manifold stubs, pressure gauge connections, chemical injection ports, and dedicated small-bore service components are specified at a 1" female-threaded tee branch outlet, manifold port, or valve body connection; consistent in application context with the parallel 439-166 (1-1/4" x 1/2") and 439-209 (1-1/2" x 1/2") entries documented in this catalog session, which serve the same 1/2" threaded small-bore service component application at the next larger inlet sizes.

Rated to approximately 450 psi at 73°F (governed by the 1" MPT end), this bushing is suited for standard commercial and light industrial water distribution and irrigation service within its pressure class. Its PVC composition provides excellent resistance to corrosion, scale, chlorinated water, and a broad range of chemical exposures, making it a reliable long-term alternative to metal hex bushings in moisture-prone or chemically active environments. NSF/ANSI 61 listing confirms suitability for potable water contact.

Install using a quality pipe thread sealant or PTFE tape on both the 1" MPT threads and the 1/2" male NPT threads of the mating downstream component before engagement. Use the hex shoulder with an appropriately sized wrench to achieve proper make-up torque on the 1" MPT end. Avoid over-torquing — PVC threads require hand-tight plus one to two turns beyond wrench-tight; excessive force can crack the fitting body or damage the receiving female threads. Derate pressure ratings for elevated temperatures per published derating curves.

Specifications:

Industries & Applications:

• Irrigation & Water Distribution — Reduces 1" female-threaded tee branch ports, valve body outlets, filter housing connections, and manifold ports to 1/2" male-threaded solenoid valve inlets, drip emitter manifold stubs, pressure gauge connections, and small-bore dedicated service fittings in residential and light commercial irrigation systems where 1/2" threaded downstream service components must interface with 1" female-threaded ports — the most common small-bore service reduction at the dominant all-threaded 1" PVC irrigation valve station diameter
• Commercial Plumbing — Adapts 1" female-threaded ports on valves, manifold bodies, tee branches, and distribution assemblies to 1/2" male-threaded pressure gauge connections, ball valve inlets, instrument stubs, and small-bore service line connections in commercial building water supply systems where all-threaded PVC construction is specified and the downstream component is a 1/2" threaded instrument or small-bore service fitting
• Industrial Process Piping — Reduces 1" female-threaded ports on valve assemblies, tee branch outlets, manifold bodies, and equipment inlets to 1/2" threaded instrument connections, chemical injection ports, sampling valve stubs, and small-bore service components in water treatment, chemical processing, and manufacturing facilities where a meaningful all-threaded 2:1 reduction at a 1" female port interfaces with widely specified 1/2" threaded service components
• Chemical Handling — Provides a corrosion-resistant all-threaded 2:1 inline reduction in systems conveying acids, caustics, fertilizer solutions, and other fluids incompatible with metal hex bushings, at 1" valve body outlets, tee branch ports, and chemical distribution manifold connections where 1/2" threaded injection ports, metering component inlets, and small-bore service stubs must be installed without an intermediate socket transition
• Water Treatment & Aquaculture — Used at filter housing instrument ports, pressure monitoring taps, chemical dosing connection stubs, and treatment equipment 1" female-threaded interfaces where a compact all-threaded reduction to a 1/2" male-threaded instrument or service component is required with NSF/ANSI 61 compliance throughout
• HVAC & Mechanical Systems — Reduces 1" female-threaded ports on cooling tower chemical feed valve assemblies, chilled water distribution manifold connections, and chemically treated water system equipment interfaces to 1/2" male-threaded sensor connections, gauge taps, and small-bore service ports within the Schedule 40 pressure rating class
